AN82.25-P-1000-05P Initial Startup Of Taxi Functions

AN82.25-P-1000-05P Initial Startup Of Taxi Functions

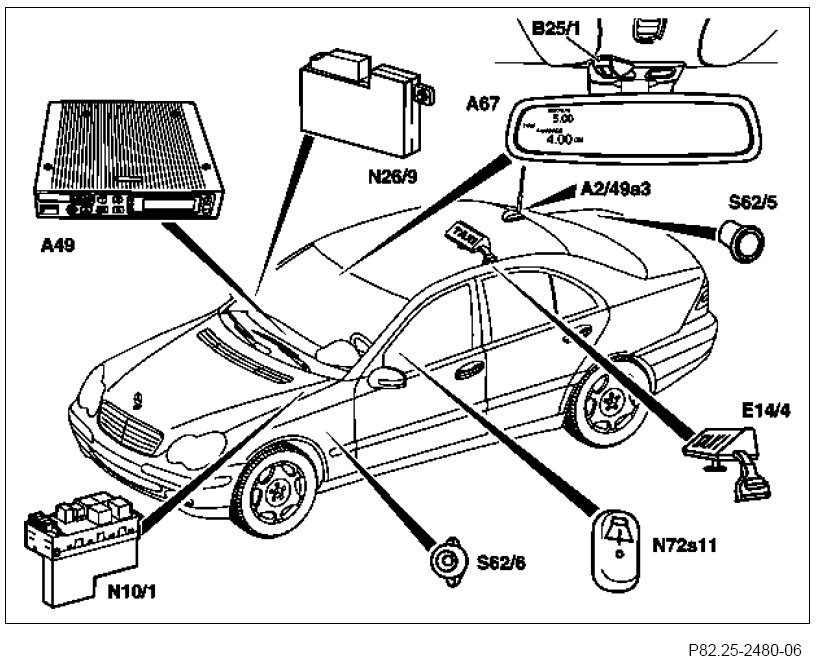

A2/49a3 Two-way radio antenna
A49 Two-way radio
A67 Inside rearview mirror unit
B25/1 Microphone
E14/4 Roof sign light
N10/1 Front SAM control unit with fuse and relay module
N26/9 Special vehicle multifunction control unit (SVMCU [MSS])
N72s11 Two-way radio switch
S62/5 Emergency alarm system cancel button
S62/6 Emergency alarm system activate button






The functions of a taxi are explained in the operator's manual for taxis and taximeters.
Specialized knowledge about the taxi functions are required to program the system correctly.
After retrofitting of all the taxi components in model 203 has been completed, the individual taxi functions must be activated with Star Diagnosis.

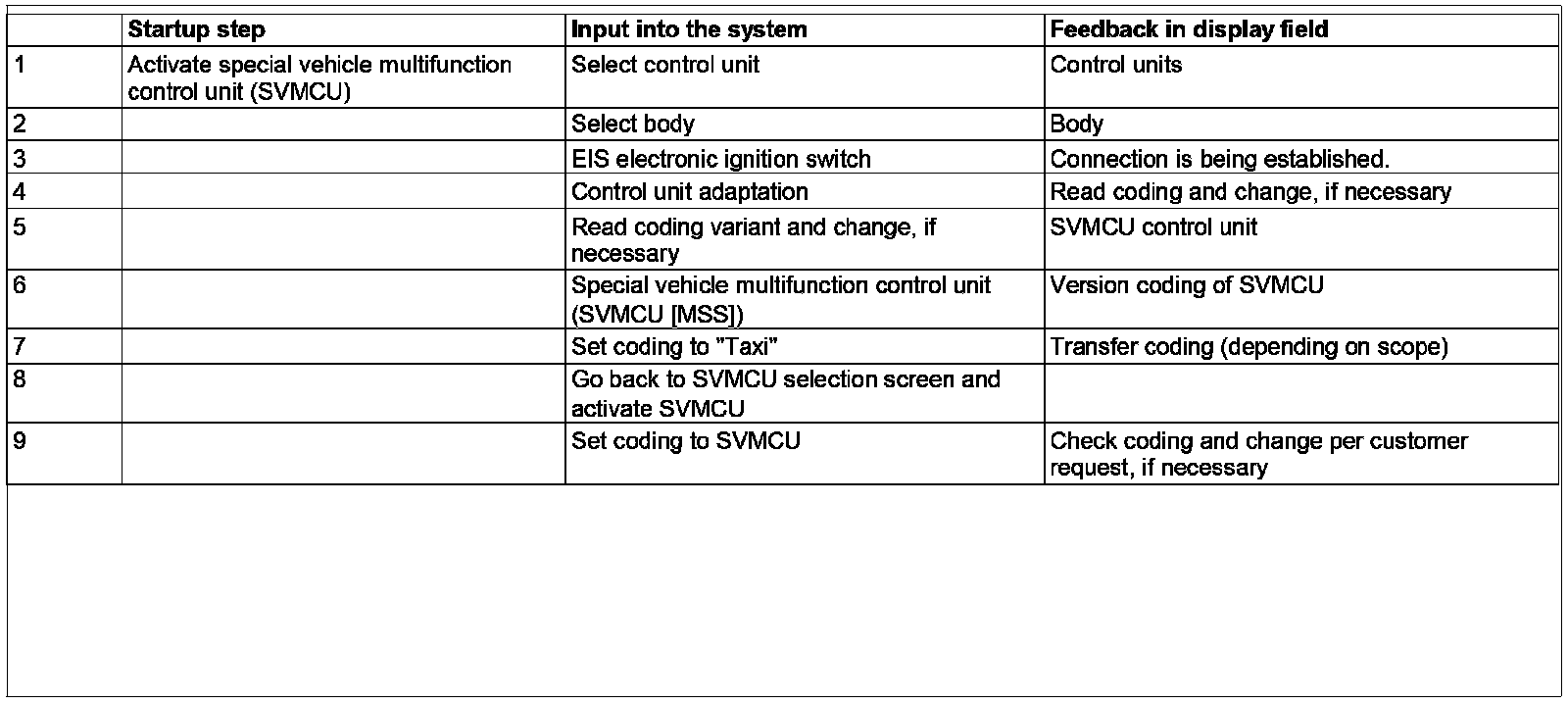

For this purpose, the steps shown in the table above should be carried out in the diagnosis modules.
