Home
>>
Mercedes Benz
>>
2006
>>
C 55 AMG (203.076) V8-5.5L (113.988)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>
Instrument Panel Layout
Instrument Panel Layout

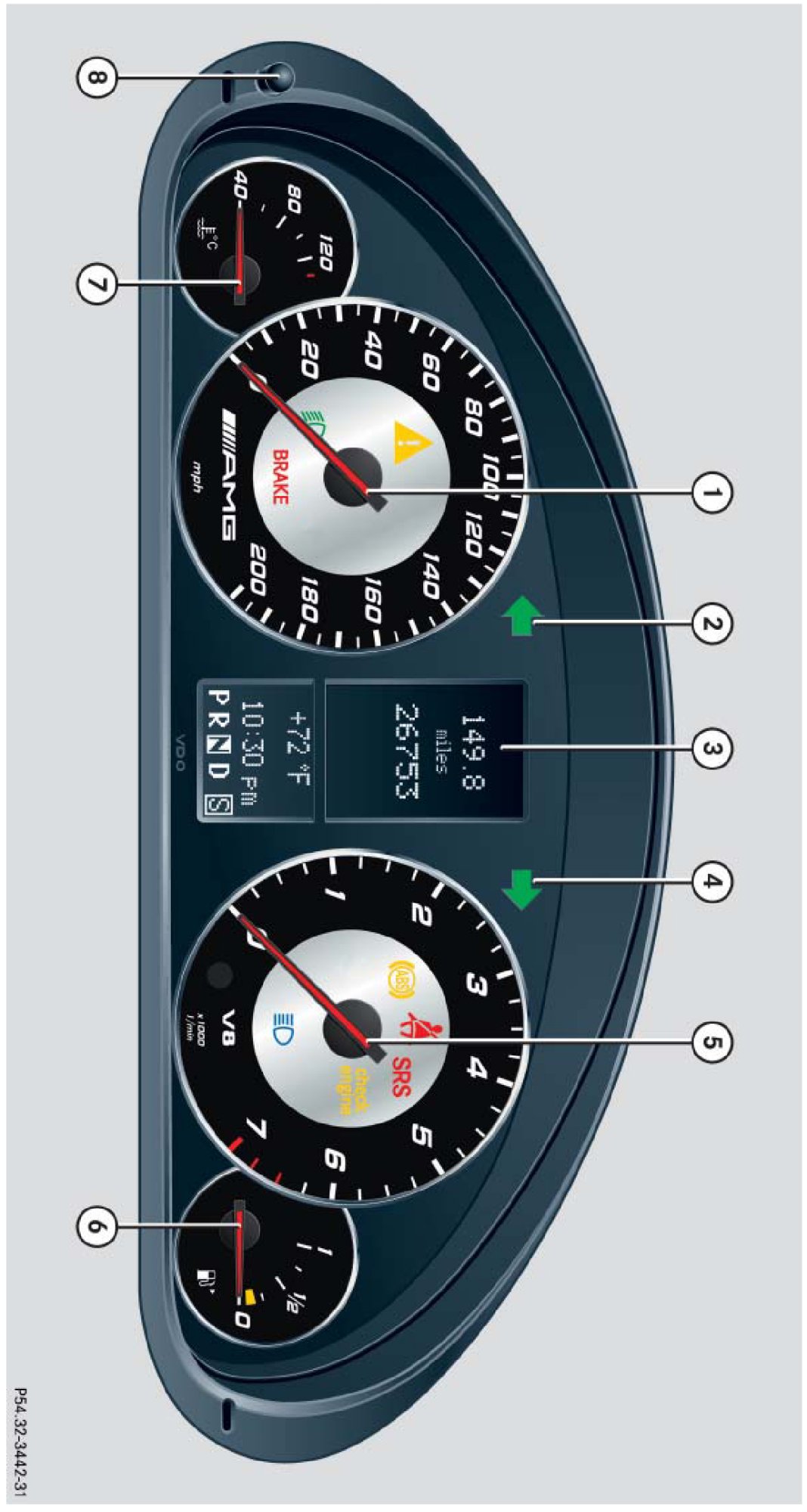

Instrument panel layout
