ME-SFI Fuel Injection/Ignition System PE07.61-U-2101FI (Sheet 1)

PE07.61-U-2101FI ME-SFI Fuel Injection and Ignition System Control Module (Sheet 1)
- ME 2.8

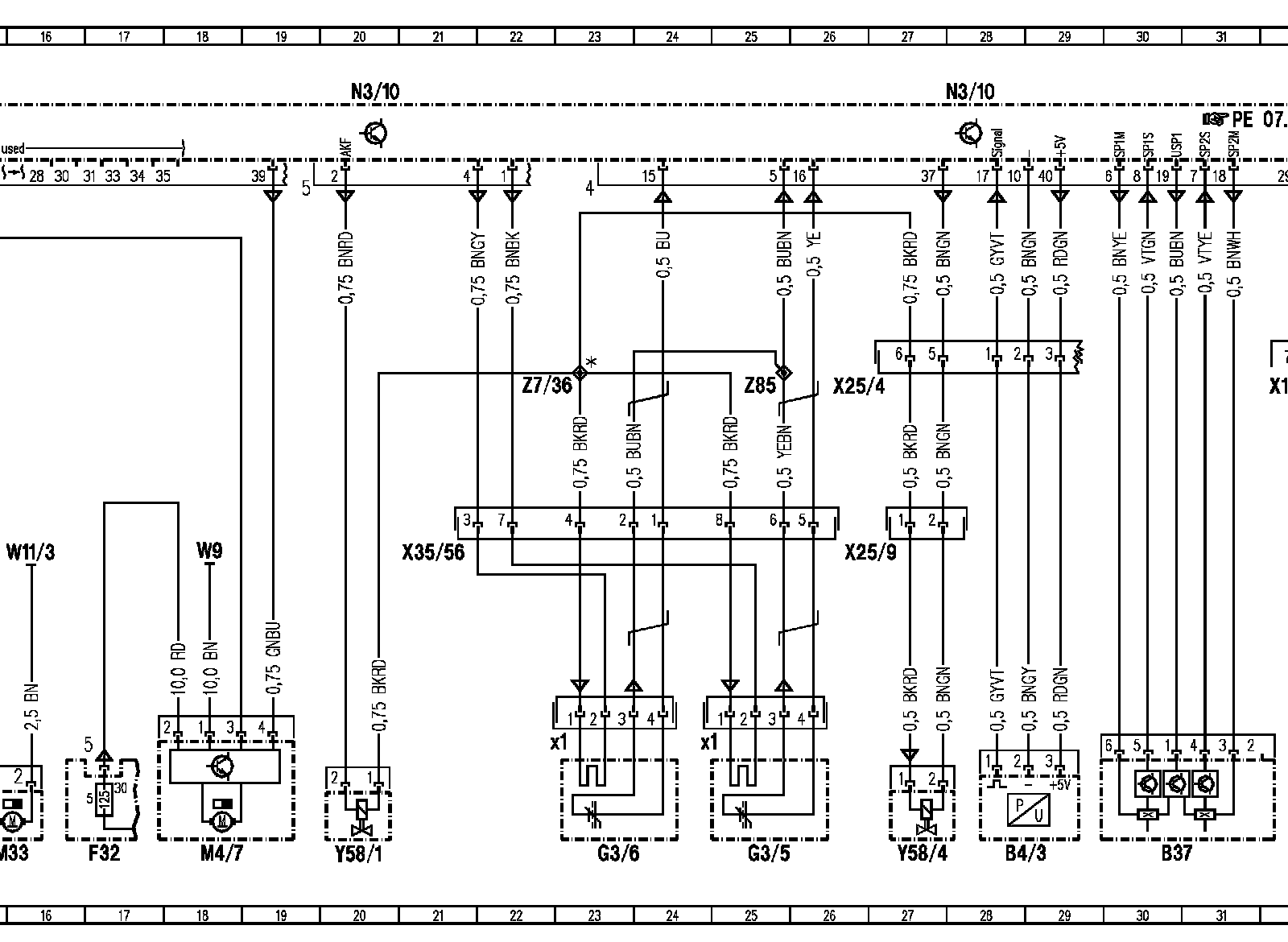

Wiring Diagram, Part 1:

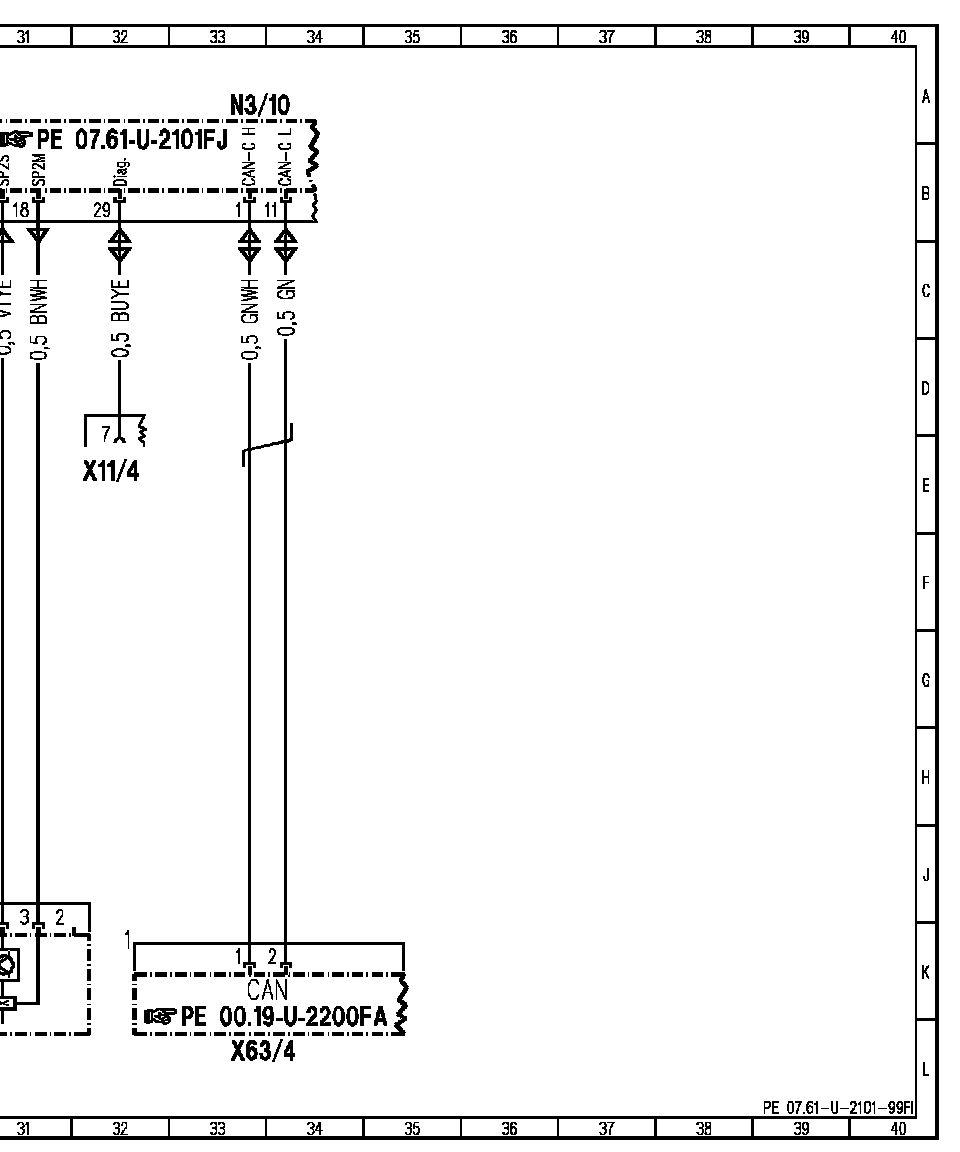

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Component Description/Coordinates, B4/3 To Y58/1:

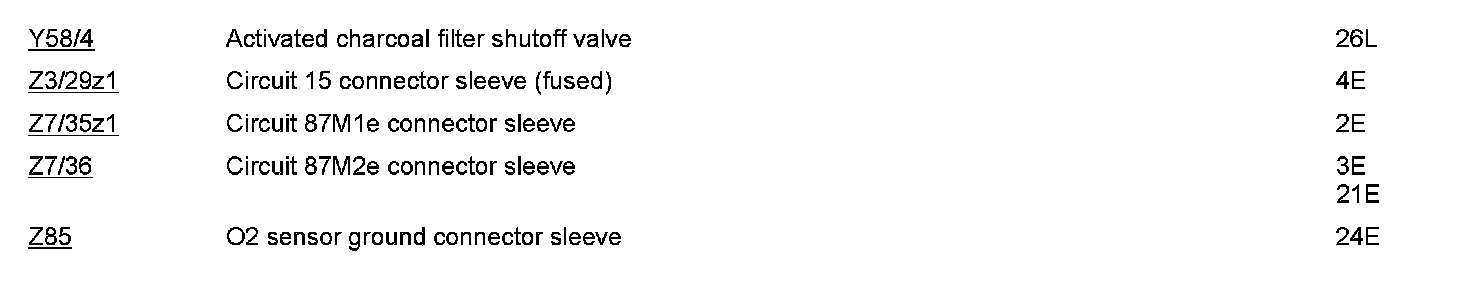

Component Description/Coordinates, Y58/4 To Z85:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
