GF27.60-P-3011PMB Function of Manual Drive Mode Selection

GF27.60-P-3011PMB Function of Manual Drive Mode Selection
- TRANSMISSION 722.6 in MODELS 203.076 /276

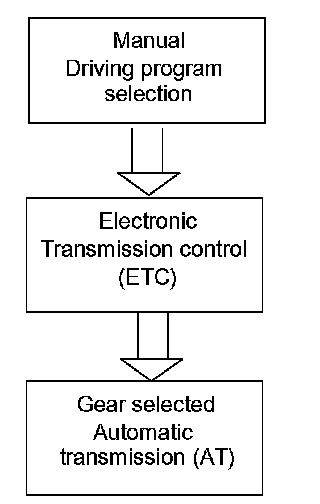

With the selector lever and the transmission mode switch (S16/5) on the floor shift it is possible to adapt the automatic gearshift sequence to suit specific operating conditions

The shift range can in fact be changed in the forward gears while driving, however the electronic transmission control (ETC) prevents a shift at an unacceptably high engine speed.

In position "C" (comfort program) of the transmission mode switch (S16/5) a lower overall ratio and therefore a lower output torque is available when driving backwards and forwards. This allows the are not driven to maximum revs.

In position "M" (manual program) of the transmission mode switch (S16/5) all forward gears can be engaged directly by means of the selector lever (tough shifts to "+" or "-" ) or by operating the steering wheel gear shifter MINUS (S110/1) or steering wheel gear shifter PLUS (S111/1).

A shift is not carried out at an unacceptably high or low rpm.
