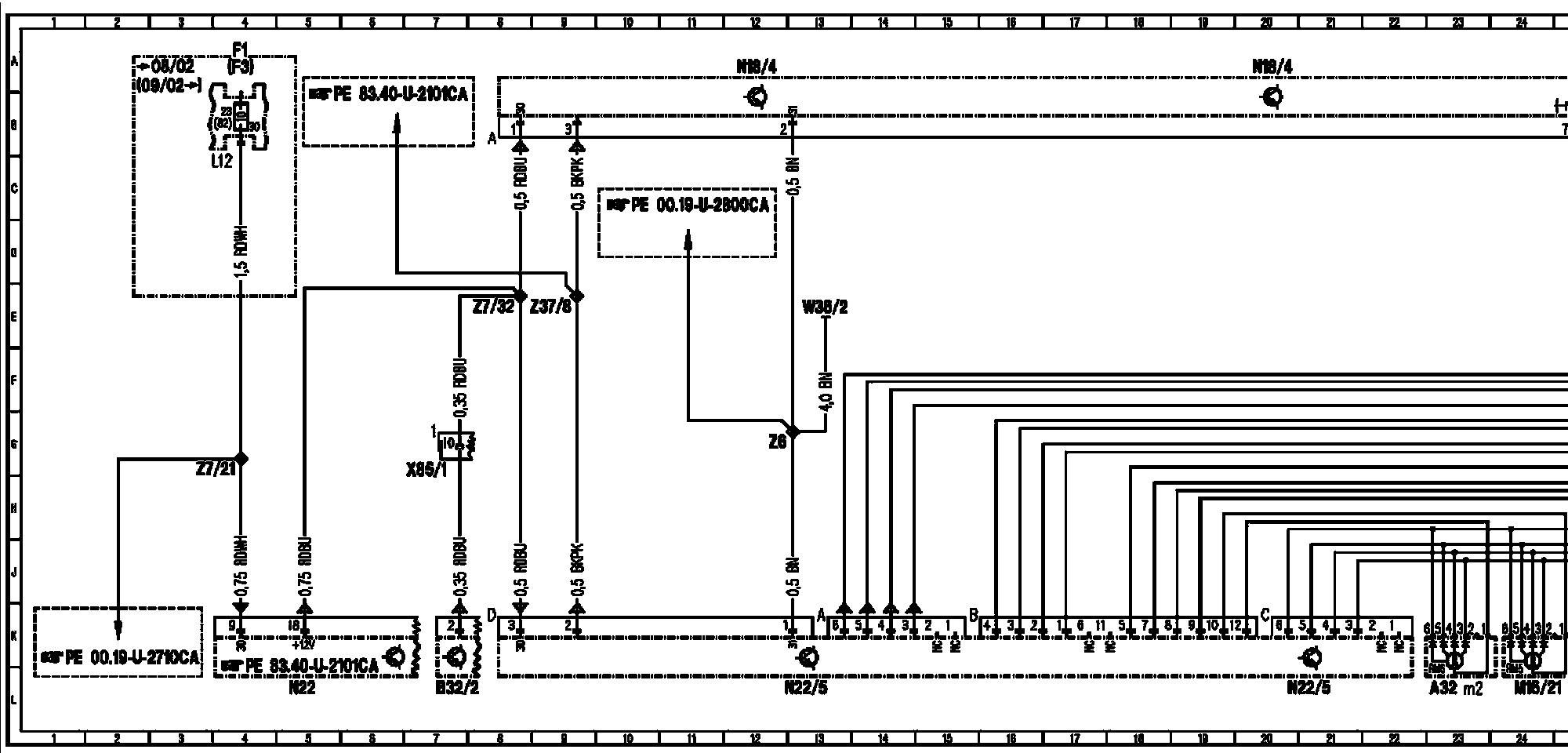

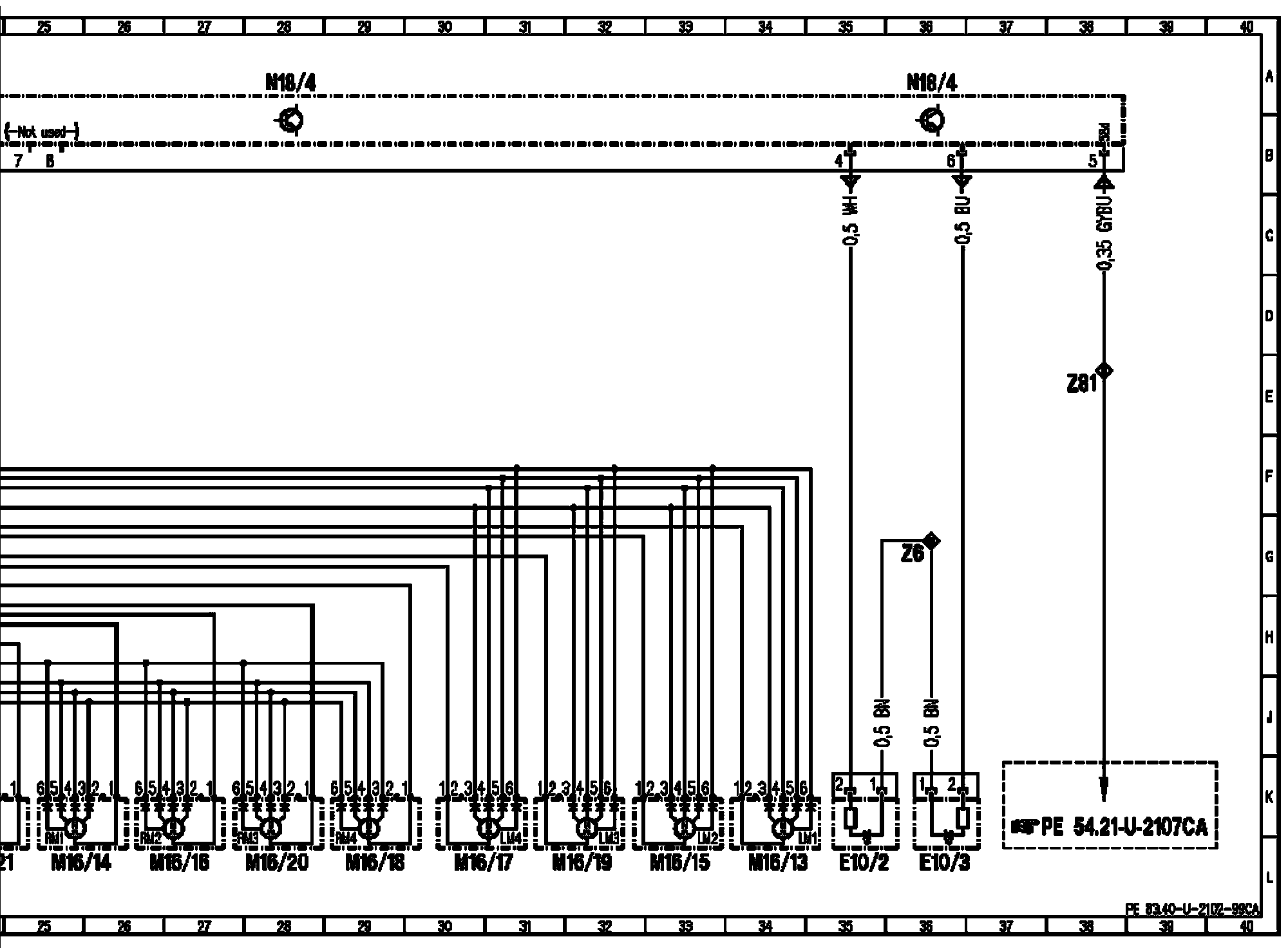

PE83.40-U-2102CA Center Outlet Electronics Control Module



PE83.40-U-2102CA Center Outlet Electronics Control Module
Model 215 with Code (581) Automatic air conditioning
Control Module N18/4
