Procedures A Through L
A. Installation preparation1. Read these installation instructions in their entirety before proceeding.
2. Unpack and compare the installation kit contents against the list under Parts Information-Section N.
3. Place the operating guides and customer accessories in the glove box or appropriate storage or stowage compartment.
4. Remove the floor paneling and left side paneling in the trunk.
^ See WIS document AR68.30-P-4600M, Remove/install paneling in trunk"
B. Locating and Identifying the cables and connectors
1. Find the cables with foam-sleeve-covered connectors (Figure 1) wire tied to the top of the CD changer/Car Navigation processor bracket assembly in the exposed left side well in the trunk.
2. Carefully cut the wire tie (Arrow, Figure 1) securing the cables to the top of the CD changer/Car Navigation processor bracket assembly.
3. Remove the foam sleeves from the antenna switch connectors and linear compensator connectors to expose the:
^ Male, white FAKRA main antenna lead labeled "ANTENNE" (A, Figure 2)
^ Female, white FAKRA Tele Aid lead labeled "LCT" (B, Figure 2)
^ Male, black FAKRA connector labeled "HANDY" (C, Figure 2)
^ Antenna switch 2-pin power supply connector (D, Figure 2)
^ Linear compensator power supply connector (E, Figure 2)
4. Find the power supply connector (A, Figure 3) for the MHI control module and remove the foam sleeve.
Note:
Tuck the foam-sleeve-covered SDARS antenna connector (B, Figure 3) and cable behind the CD changer/Car Navigation processor bracket assembly
5. Find the power supply connector (Figure 4) for the voice control (VCS) on the left side of the CD changer/Car Navigation processor bracket assembly and remove the foam sleeve.
6. Find the microphone array connectors wire tied to the harness routed along the upper, right of the CD changer/Car Navigation processor bracket assembly, and identify the:
^ MHI/VCS microphone connector (A, Figure 5)
^ Tele Aid microphone connector (B, Figure 5) and connected jumper with pink and purple looped wires (C, Figure 5)
C. Configuring the MOST optical fiber ring
NOTICE!
Improper handing of optical fibers can damage the fibers. Damaged optical fibers can cause component malfunction. Handle optical fibers with care to prevent cuts, nicks, abrasions, and crushing.
1. Remove the CD changer/Car Navigation processor bracket assembly by removing the three self-tapping screws (A, Figure 1) and flange nut (B, Figure 1).

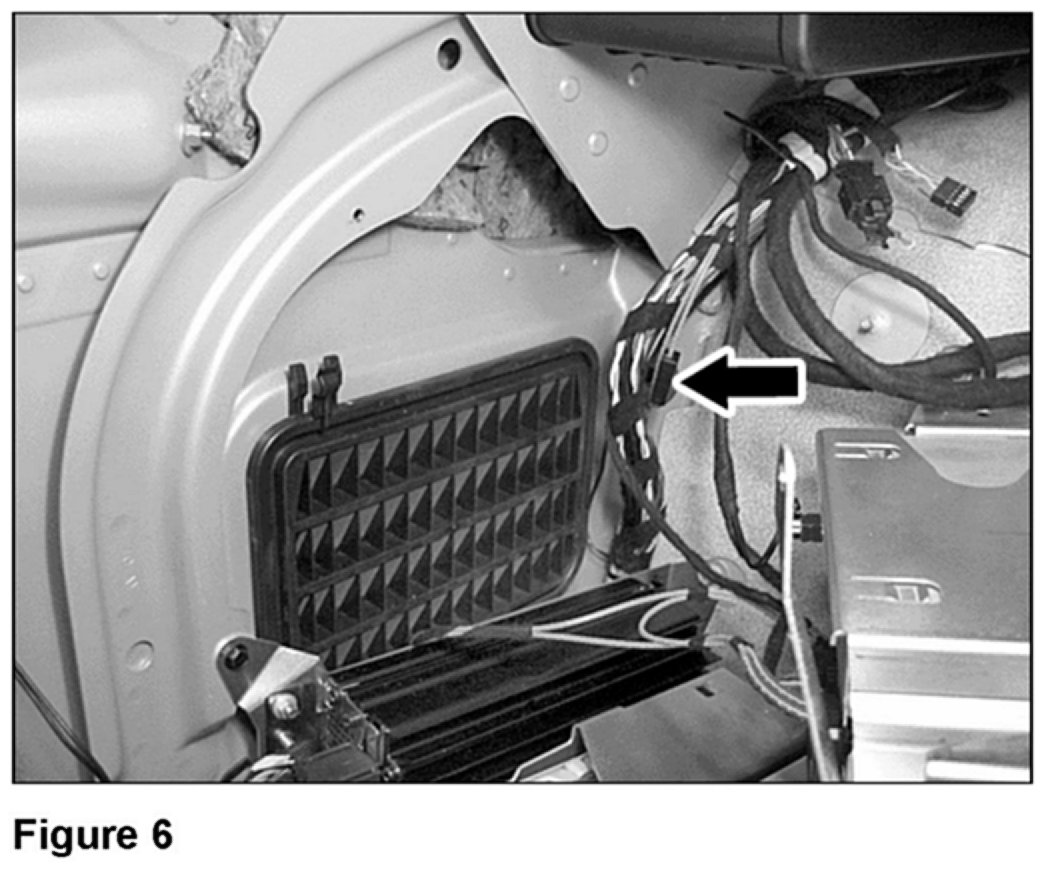

2. In the exposed area behind the removed CD changer/Car Navigation processor bracket assembly, find the MOST coupling (Arrow, Figure 6) and optical fibers.
3. In the exposed area behind the removed CD changer/Car Navigation processor bracket assembly, disassemble the MOST coupling (A, Figure 7) and remove the optical fiber end (B, Figure 7).

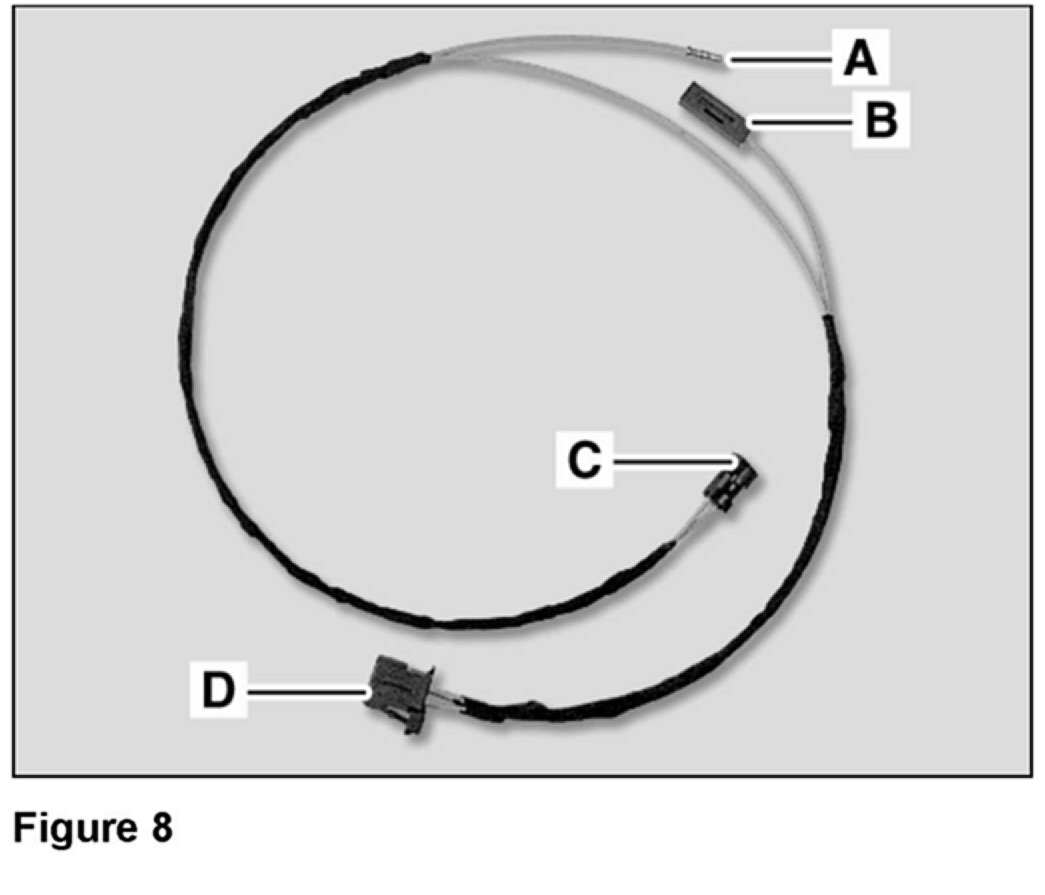

4. Find the MHI/VCS MOST adapter cable in the kit (Figure 8).
5. Disassemble the coupling (B, Figure 8) of the MHI/VCS MOST adapter cable.

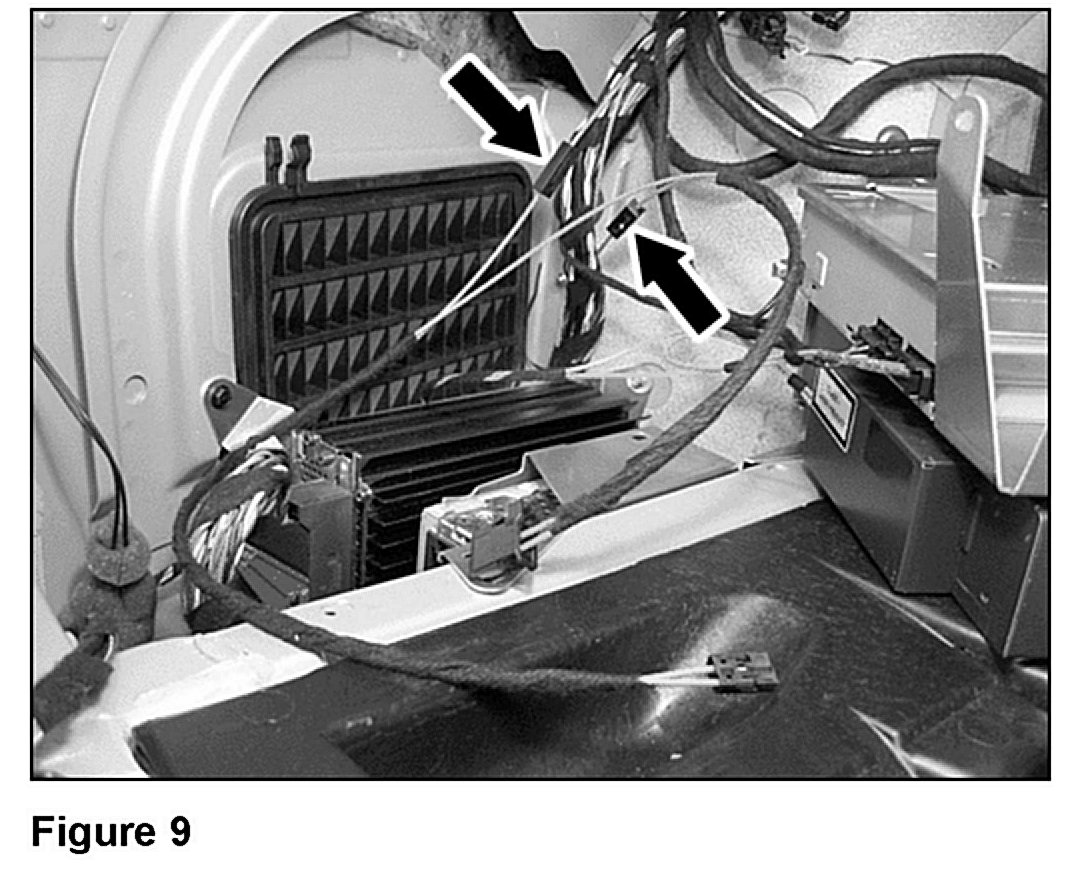

6. Connect the MHI/VCS MOST adapter cable to the preinstalled MOST optical fibers in the exposed area behind the removed CD changer/Car Navigation processor bracket assembly (Arrows, Figure 9).
a. Insert the exposed fiber end (A, Figure 8) of the MHI/VCS MOST adapter cable into the empty chamber (A, Figure 7) of the coupling from the preinstalled MOST optical fiber; reassemble the coupling.

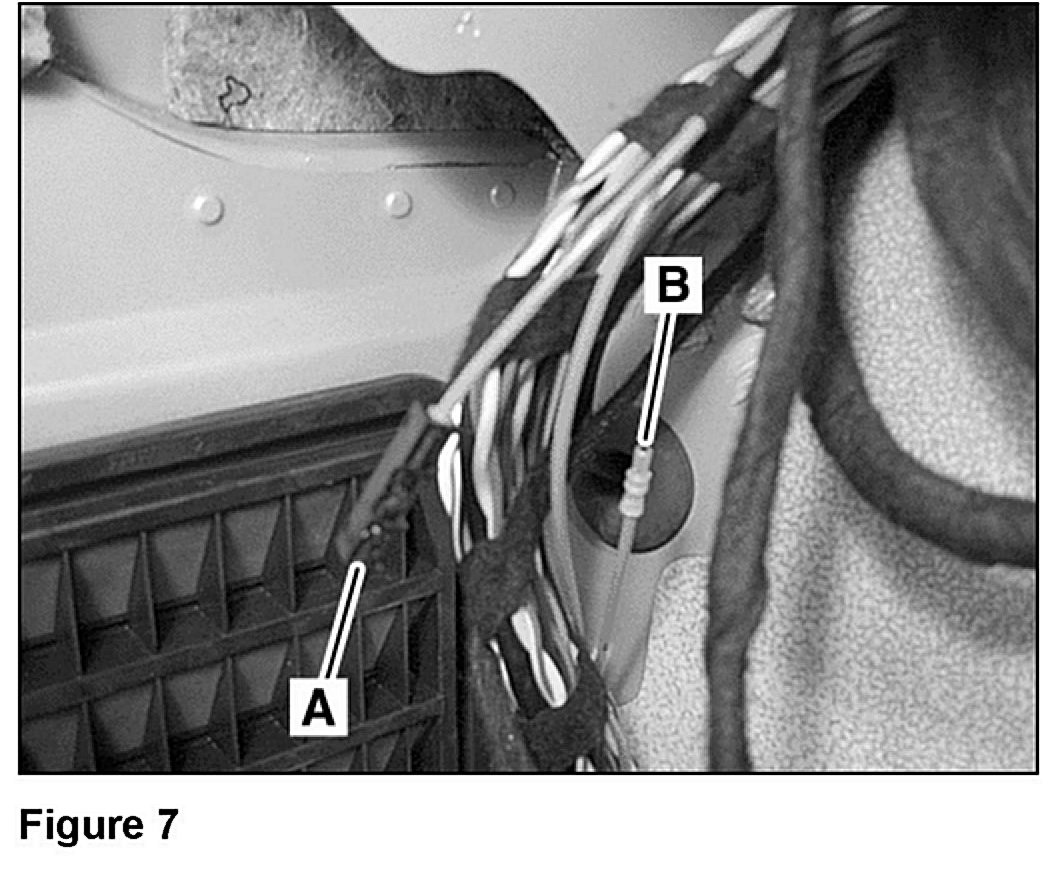

b. Insert the fiber end (B, Figure 7) removed from the coupling of the preinstalled MOST optical fiber into the coupling (B, Figure 8) from the MHI/VCS MOST adapter cable; reassemble the coupling.
7. Reinstall the CD changer/Car Navigation processor bracket assembly with the two previously removed self-tapping screws (A, Figure 10) at the front bracket arms and flange nut (B, Figure 10) at the right side bracket arm.
Note:
Do not yet fasten the rear bracket arm (C, Figure 10) with the remaining self-tapping screw. It will later additionally secure the MHI bracket assembly.
a. Route the larger MHI MOST adapter connector (D, Figure 10) over top the bracket assembly.
b. Route the smaller VCS MOST adapter connector (E, Figure 10) to the left side of the bracket assembly.
8. Insert the VCS MOST adapter connector (E, Figure 10) into the back of the VCS power supply connector (Figure 11).
Note:
The VCS MOST adapter connector inserts into the VCS power supply connector only one way (i.e. there is no way to insert the VCS MOST adapter connector into the VCS power supply connector incorrectly).
D. Mounting the control module for voice control (VCS) to the bracket, installing the bracket assembly, and connecting the VCS control module
1. Mount the VCS control module to the bracket:
Note:
Mount VCS control module to the bracket so the receptacle for the power supply connector faces up, toward the bracket fastening arms (Figure 12).
a. Slide one tab of the VCS control module under the bracket clip (A, Figure 12).
b. Fasten the other tab of the VCS control module to the bracket with a 5 mm Phillips head machine screw (B, Figure 12).
2. Install the VCS control module bracket assembly on left side of CD changer/Car Navigation processor bracket assembly.

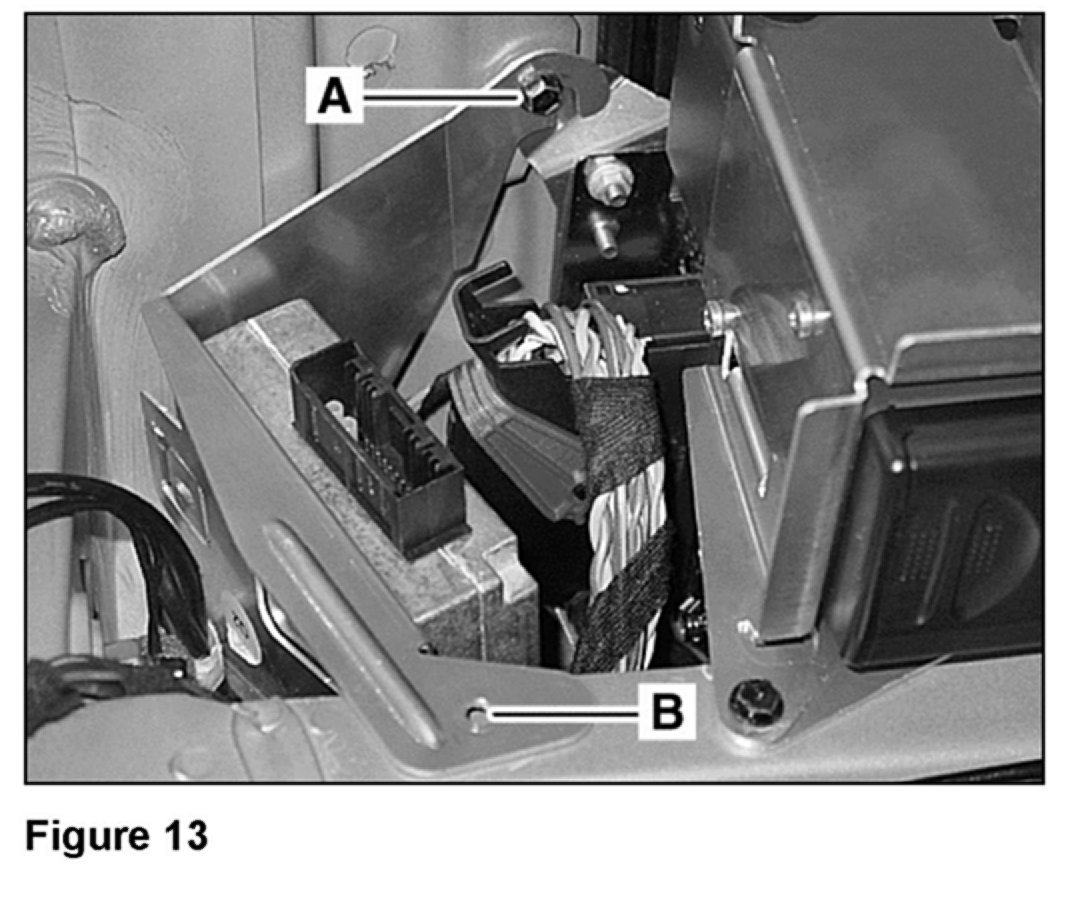

a. Loosen the self-tapping screw securing the left arm of the sound system control module bracket (A, Figure 13).
b. Hook the rear arm (A, Figure 13) of the VCS control module bracket over the loosened self-tapping screw securing the left arm of the sound system control module bracket and then tighten the self-tapping screw.
c. Do not yet install the 5 mm self-tapping screw for the front arm (B, Figure 13) of the VCS control module bracket.
Note:
The 5 mm self-tapping screw that secures the front arm of the VCS control module bracket will later additionally secure the MHI bracket assembly.
3. Connect the MOST/VCS power supply connector to the VCS control module (Figure 14).
E. Mounting the antenna switch to the bracket, connecting the antenna switch, and installing the bracket assembly

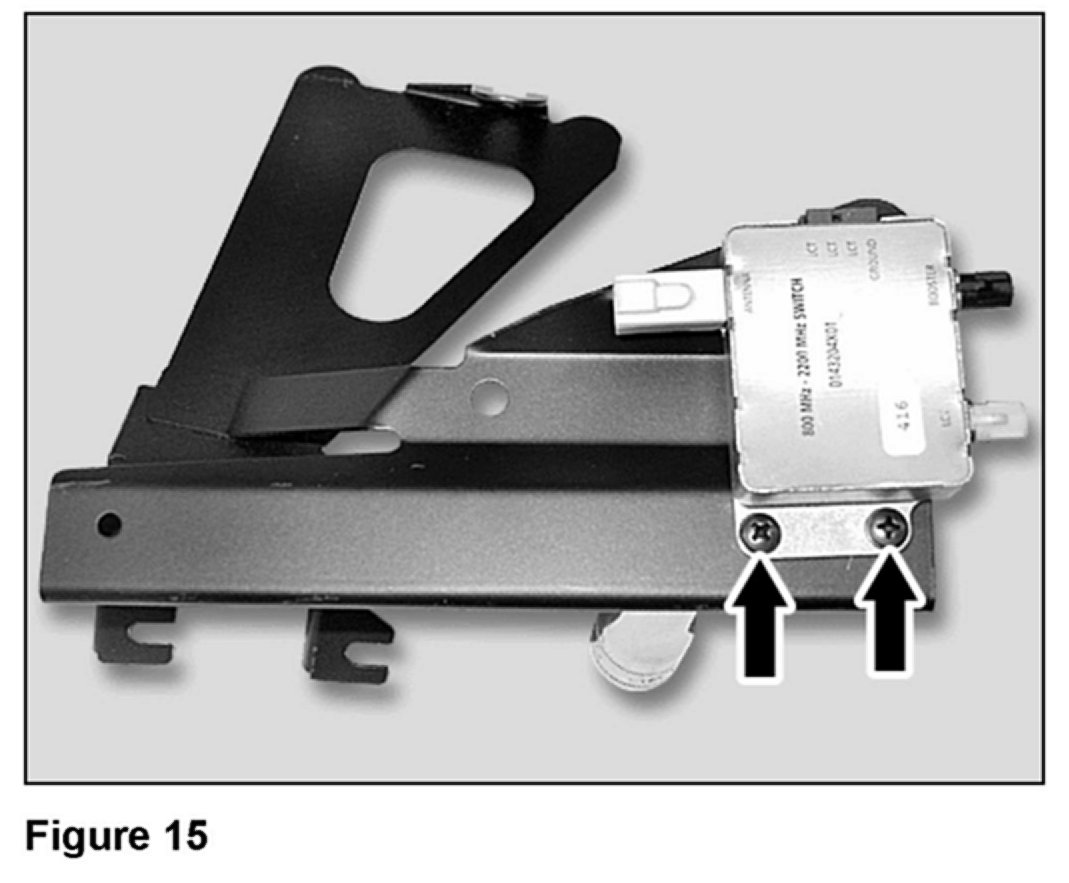

1. Mount the antenna switch to the bracket with two M4 Phillips head machine screws, washers, and 4 mm nuts (Figure 15).

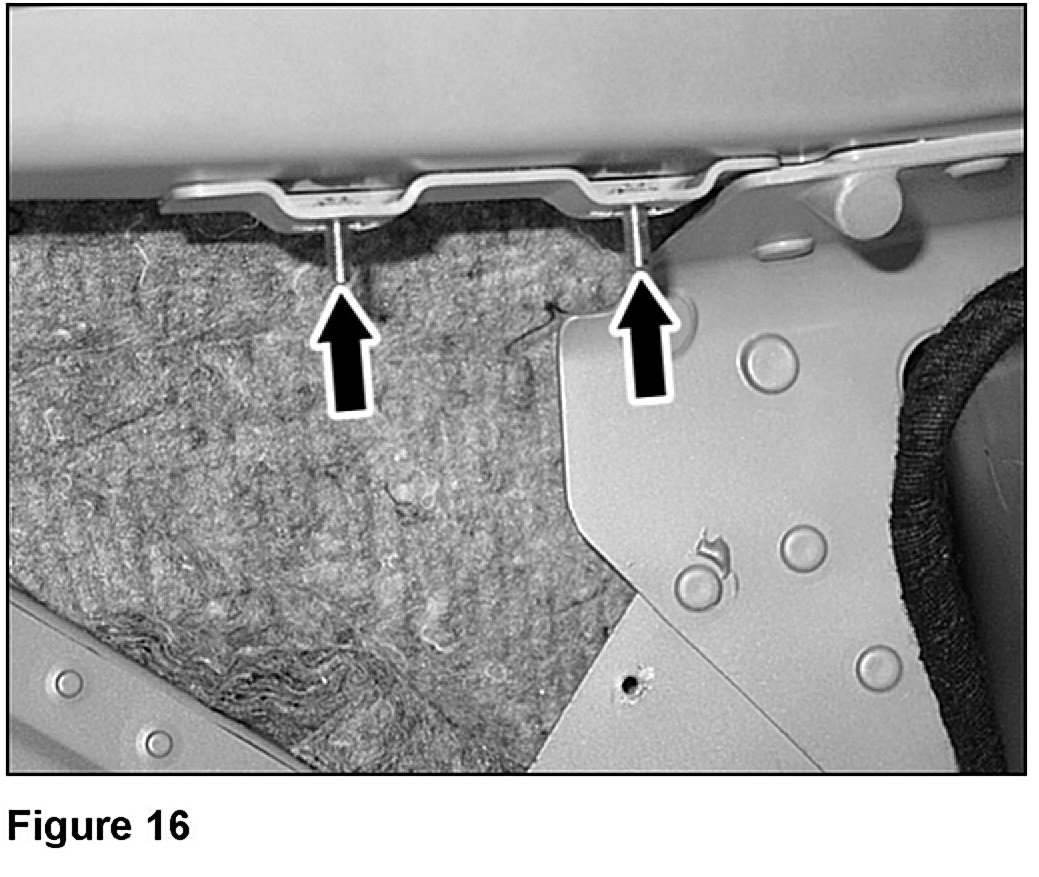

2. Insert the two kit-included threaded studs into the holes from the top side of the bracket support on the upper body beam at the left side of the exposed interior of the trunk (Figure 16).

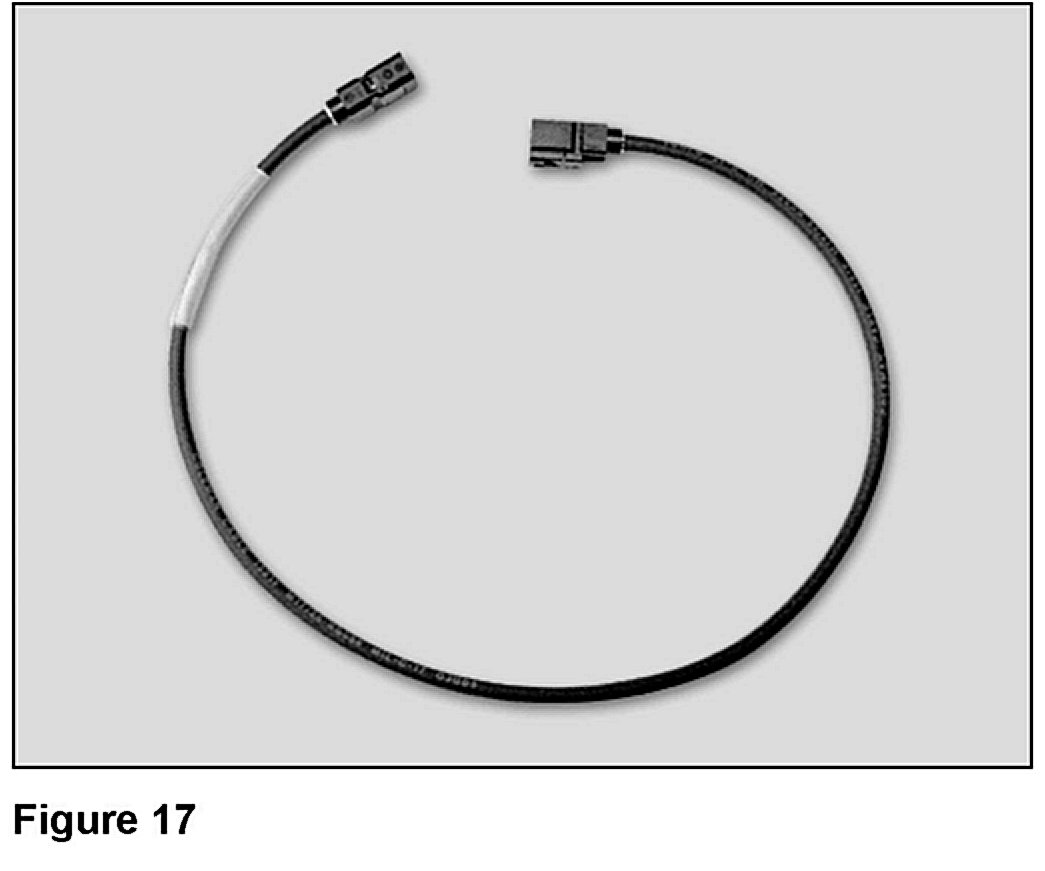

3. Find the female-to-female, FAKRA antenna jumper cable in the kit (Figure 17).
Note:
The connectors for the female-to-female, FAKRA antenna jumper cable are interchangeable.
4. Place the antenna switch/bracket assembly within reach of the cable connectors for the antenna switch (Figure 18).

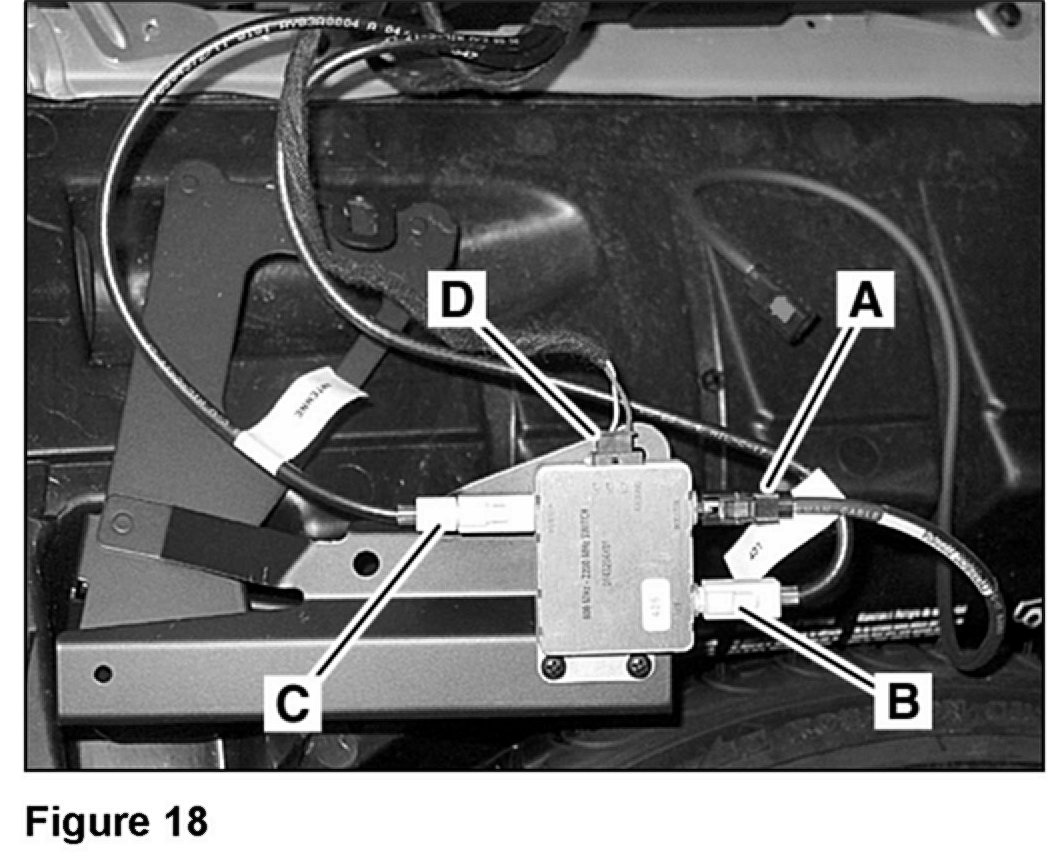

5. Connect either connector of the female-to-female, FAKRA antenna jumper cable to the antenna switch jack labeled "BOOSTER" (A, Figure 18).
6. Connect the female, white FAKRA Tele Aid lead labeled "LCT" to the antenna switch jack labeled "LCT" (B, Figure 18).
7. Connect the male, white FAKRA main antenna lead labeled "ANTENNE" to the antenna switch jack labeled "ANTENNA" (C, Figure 18).
8. Connect the 2-pin power supply connector to the antenna switch (D, Figure 18).

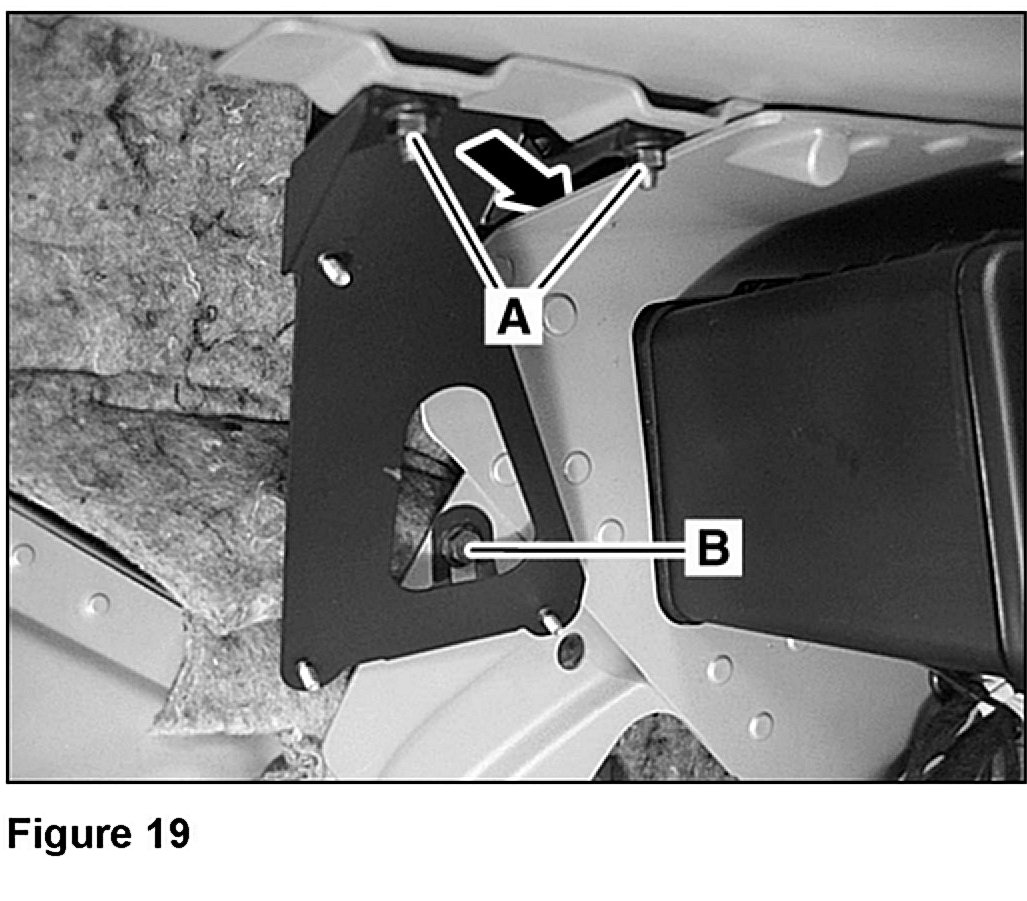

9. Start the two kit-included 5 mm flange nuts (A, Figure 19) on the threaded studs hanging from the bracket support.
Note:
Do not tighten the nuts. Thread the nuts approximately half way up the threaded studs.
10. Carefully slide the bracket end with the mounted antenna switch into the recess (Arrow, Figure 19) to the right-toward the vehicle front-of the bracket support with hanging threaded studs while hooking the two open-end bracket arms (A, Figure 19) over the threaded studs between the bracket support and nuts.
11. Fasten the lower mounting arm of the bracket with a 6 mm self-tapping screw (B, Figure 19).
12. Tighten the nuts on the hanging threaded studs to secure the upper arms of the bracket (A, Figure 19).
F. Mounting the linear compensator to the bracket and connecting the linear compensator

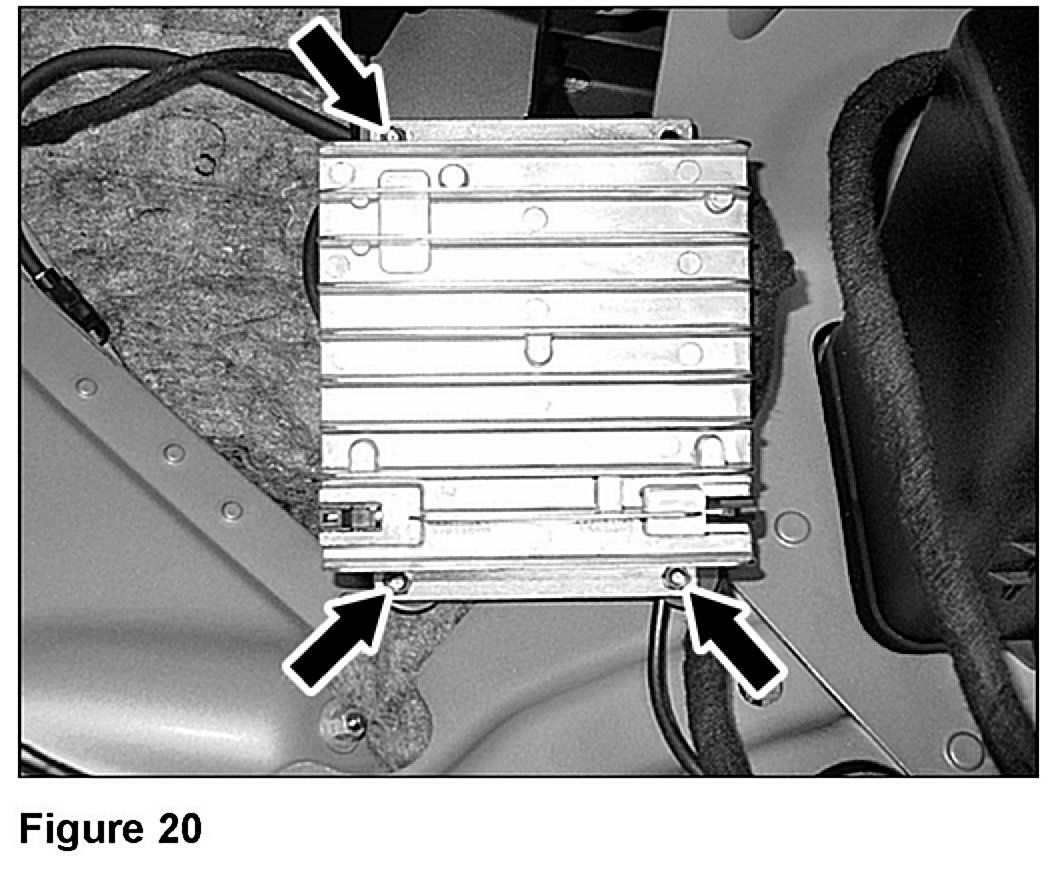

1. Mount the linear compensator to the three threaded studs on the face of the antenna switch/bracket assembly (Figure 20) with three 4 mm nuts.
Note:
Mount the linear compensator so the connector jacks are at the bottom.
2. Connect the other end of the female-to-female, FAKRA antenna jumper cable to the linear compensator jack labeled "ANTENNA" (A, Figure 21).
3. Connect the male, black FAKRA antenna lead to the linear compensator jack labeled "PORTABLE" (B, Figure 21).
4. Connect the power supply connector to the linear compensator (C, Figure 21).
G. Connecting the microphone array connectors

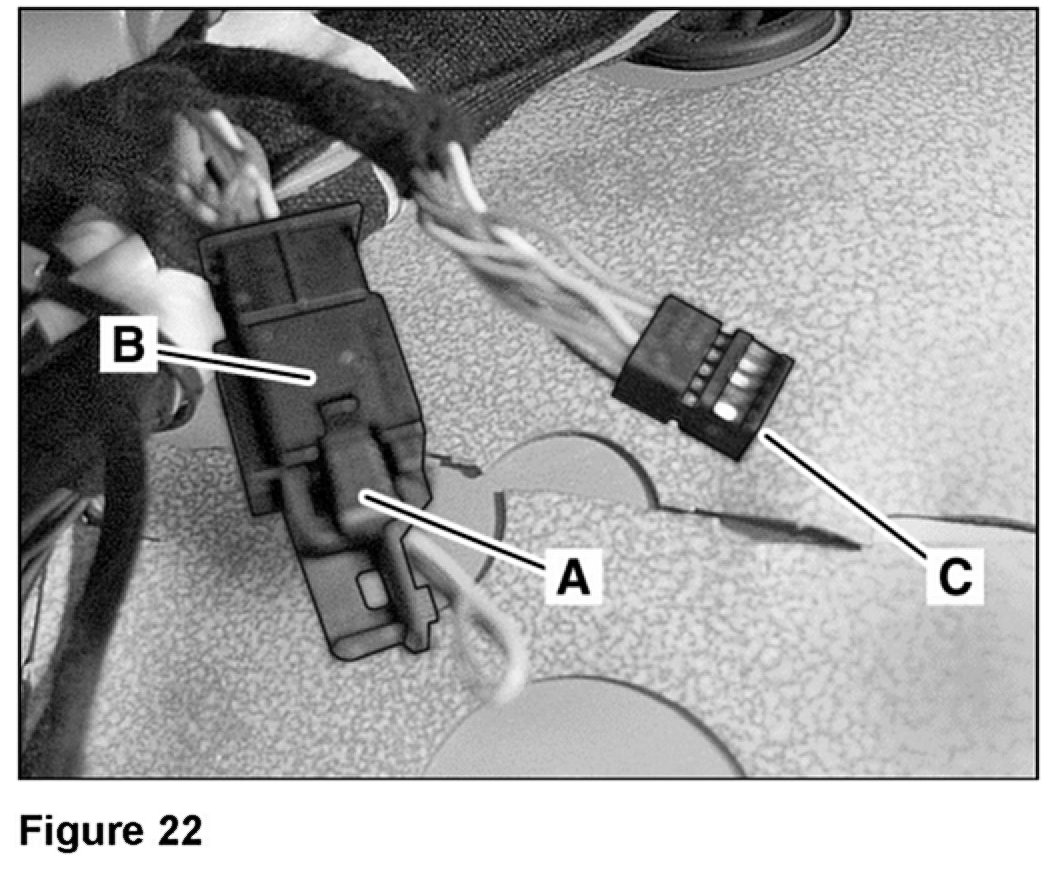

1. Disconnect the jumper connector (A, Figure 22) from the female Tele Aid microphone connector (B, Figure 22) wire tied to the harness routed along the upper right of the CD changer/Car Navigation processor bracket assembly.

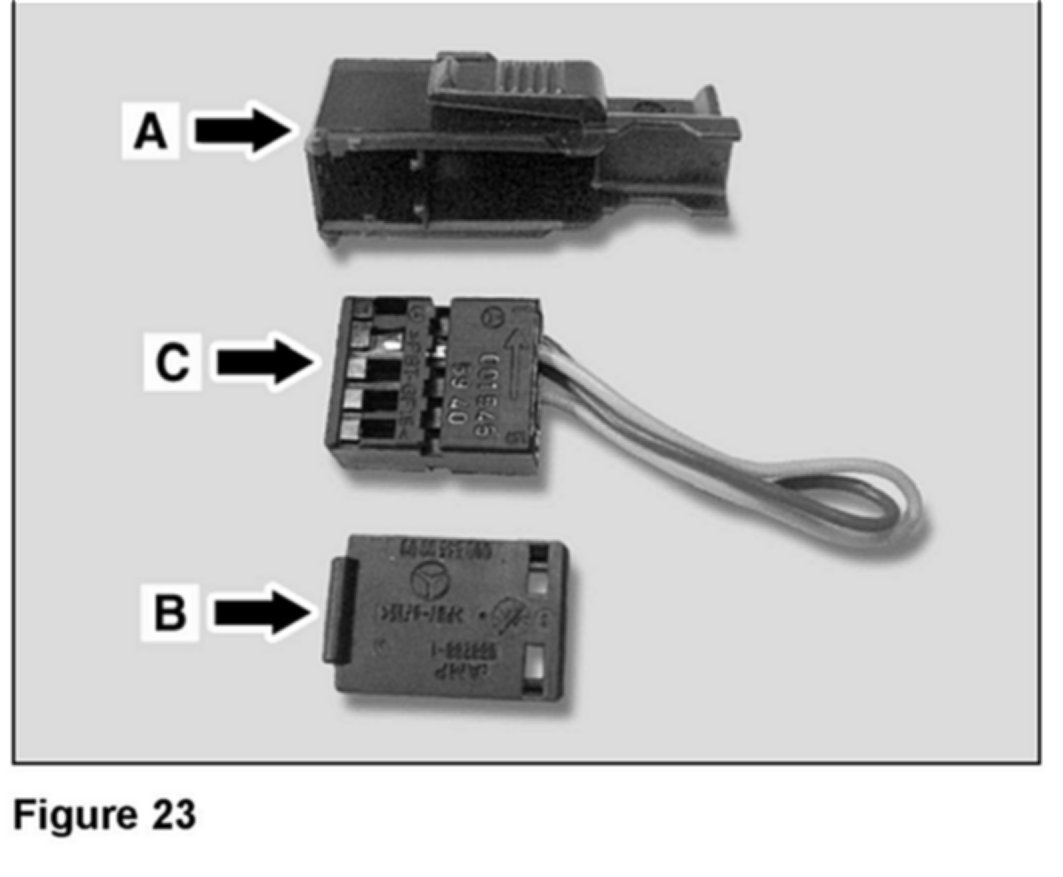

2. Disassemble the jumper connector housing (A, Figure 23).
a. Slide off the bottom latch (B, Figure 23) from the housing.
b. Remove the jumper with pink and purple looped wires (C, Figure 23) from the housing.
3. Assemble the jumper housing (A and B, Figure 23) with the MHI/VCS microphone array connector (C, Figure 22).

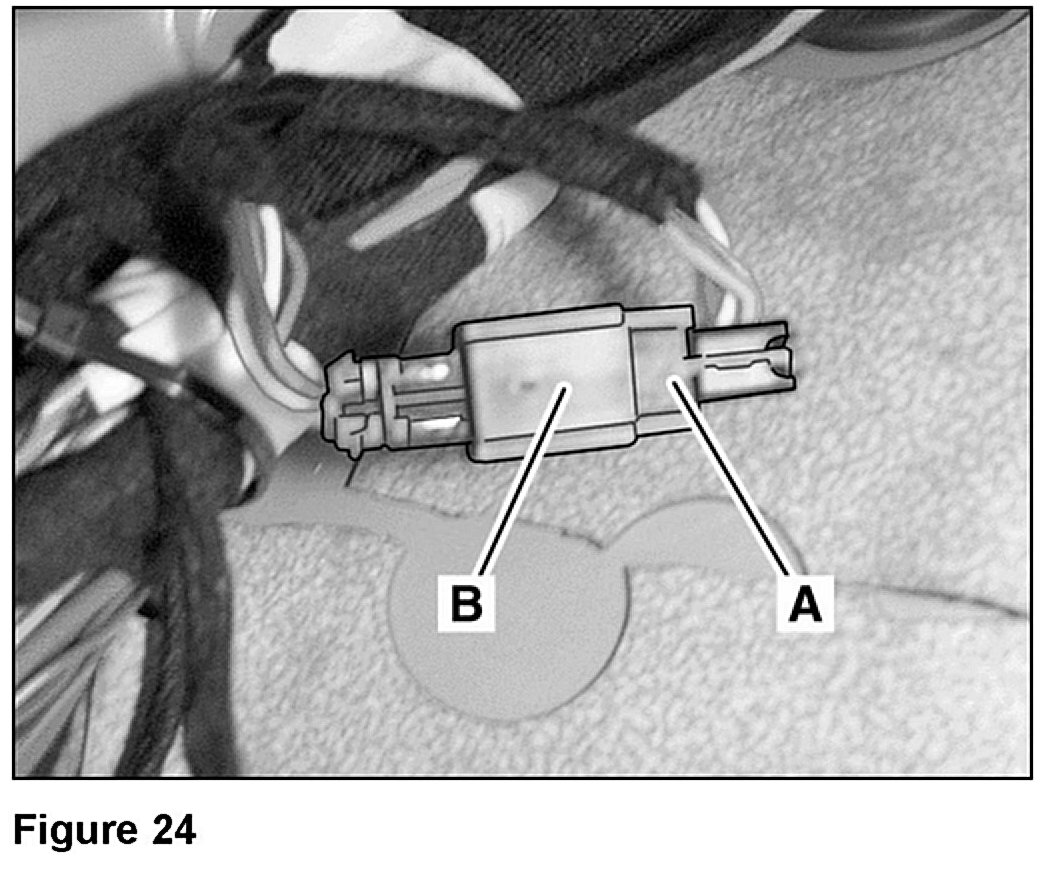

4. Connect the assembled male MHI/VCS microphone array connector (A, Figure 24) to the female Tele Aid microphone connector (B, Figure 24).
H. Mounting the MHI control module to the bracket, installing the bracket assembly, and connecting the MHI control module
1. Mount the MHI control module to the threaded studs on the bracket face with four 5 mm flange nuts (Figure 25).
Note:
The MHI control module will mount to the bracket threaded studs only one way (i.e. there is no way to mount the MHI control module to the bracket incorrectly).

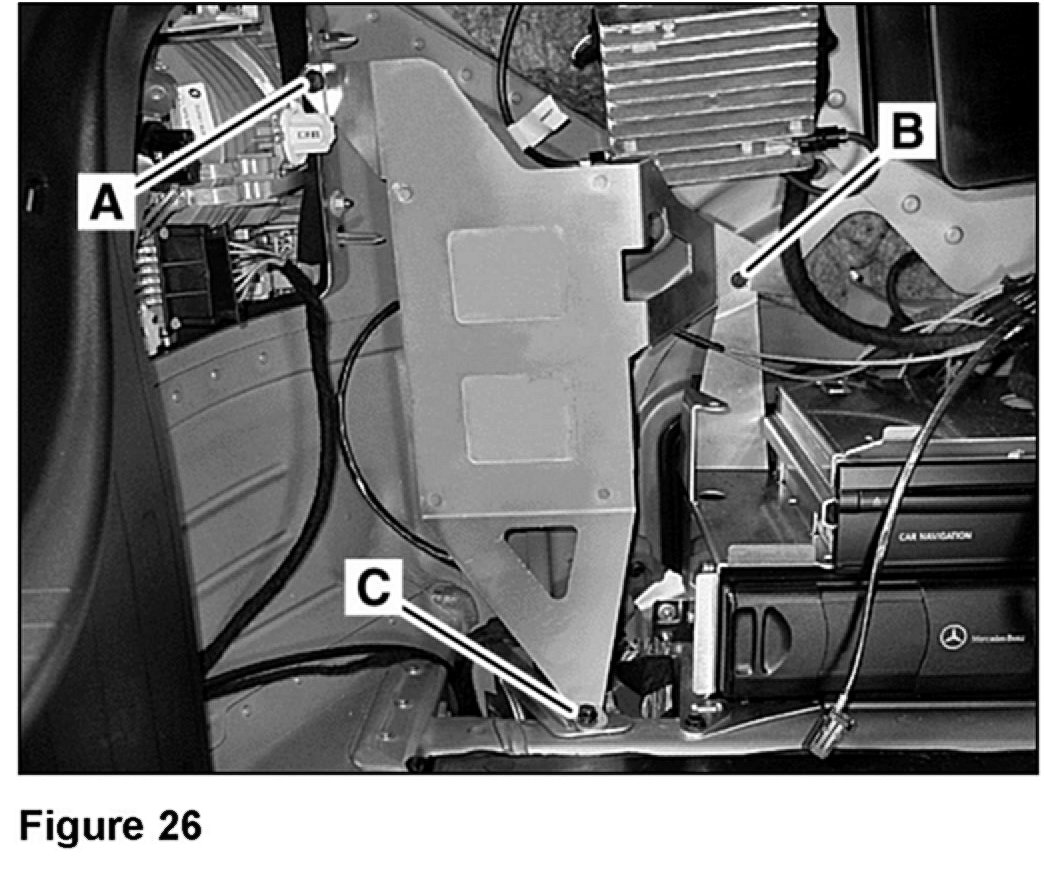

2. Install the MHI control module bracket assembly:
a. Fasten the upper, left bracket arm (A, Figure 26) with a 5 mm self-tapping screw.
b. Fasten the right bracket arm (B, Figure 26), together with the rear arm of the CD changer/Navigation System processor bracket, with the remaining 5 mm self-tapping screw previously removed.
c. Fasten the lower bracket arm (C, Figure 26), together with the front arm of the VCS control module bracket, with a 5 mm self-tapping screw.
3. Connect MHI MOST connector to the MHI control module (A, Figure 27).
4. Connect MHI power supply connector to the MHI control module (B, Figure 27).
I. Installing the contact plate
1. Open the lower compartment of the center console.

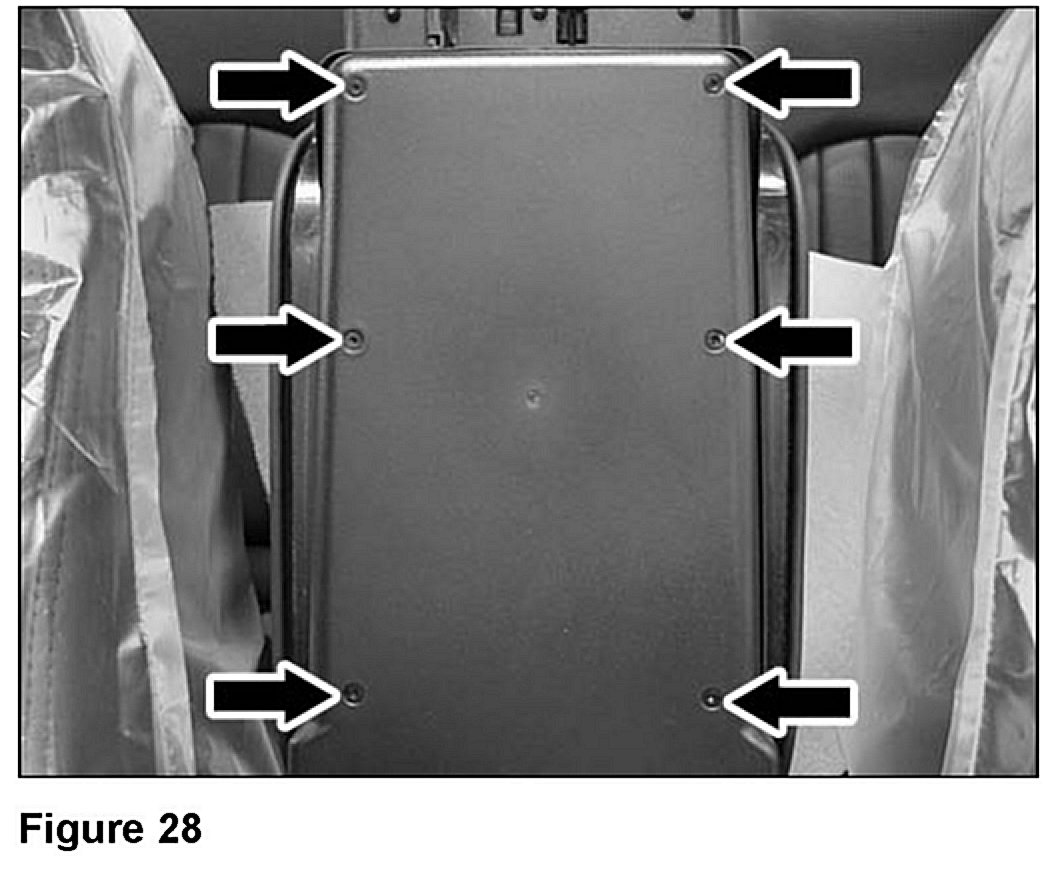

2. Remove the bottom cover of the upper compartment of the center console by removing six T10 Torx screws (Figure 28).
3. Open the upper compartment of the center console.
4. Remove the coin holder (Figure 29).

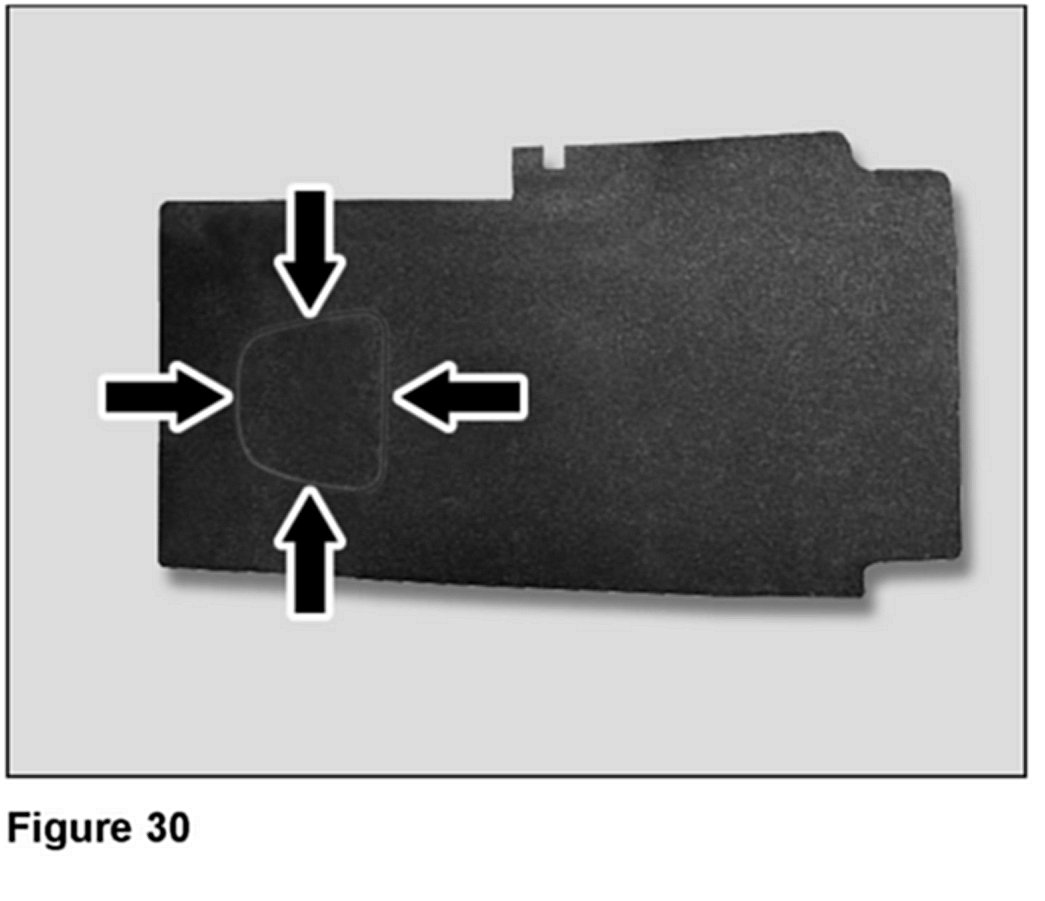

5. Lift out the false floor (Figure 30).
6. Remove the knockout (Arrows, Figure 30) from the false floor by pressing it out from beneath.
NOTICE!
Excessive force will crack or break plastic. Applying excessive force while removing the knockout can crack or break the plastic false floor. Do not apply excessive force when removing the false floor knockout.
7. Find the kit-included contact plate (A, Figure 31) and identify the:
^ FAKRA male antenna lead (B, Figure 31)
^ Power supply male connector (C, Figure 31)

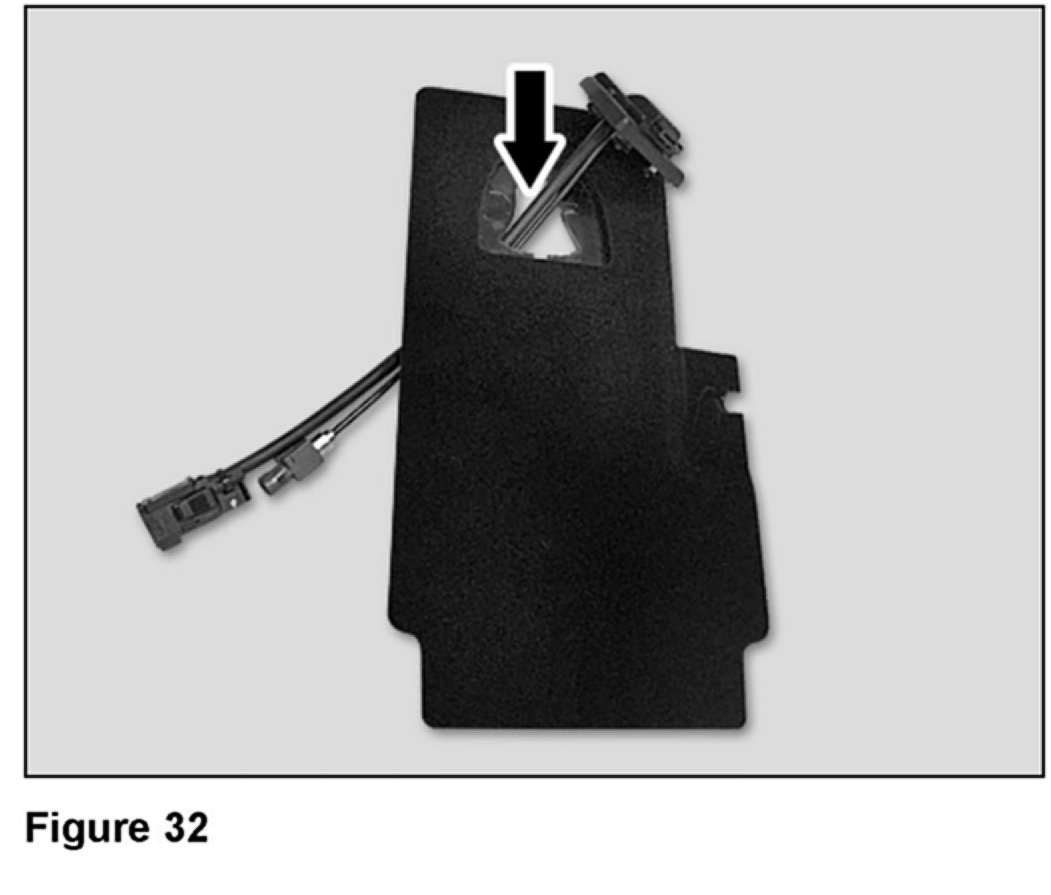

8. Feed the contact plate leads (B and C, Figure 31) through the knockout hole from the top side of the false floor (Figure 32).
9. Seat the contact plate in the false floor knockout hole by firmly pressing down on the top of the contact plate until it audibly engages (Arrows, Figure 33).
NOTICE!
Excessive force will crack or break plastic. Using excessive force to seat the contact plate can crack the plastic false floor. Do not use excessive force to seat the contact plate in the false floor.
10. Secure the contact plate leads to the false floor underside with the kit-included metal clip (A, Figure 33).
11. Find the female power supply connector (A, Figure 34) and FAKRA antenna female connector (B, Figure 34) on the exposed floor of the upper compartment of the center console.
12. Place the false floor with mounted contract plate near its installation point.

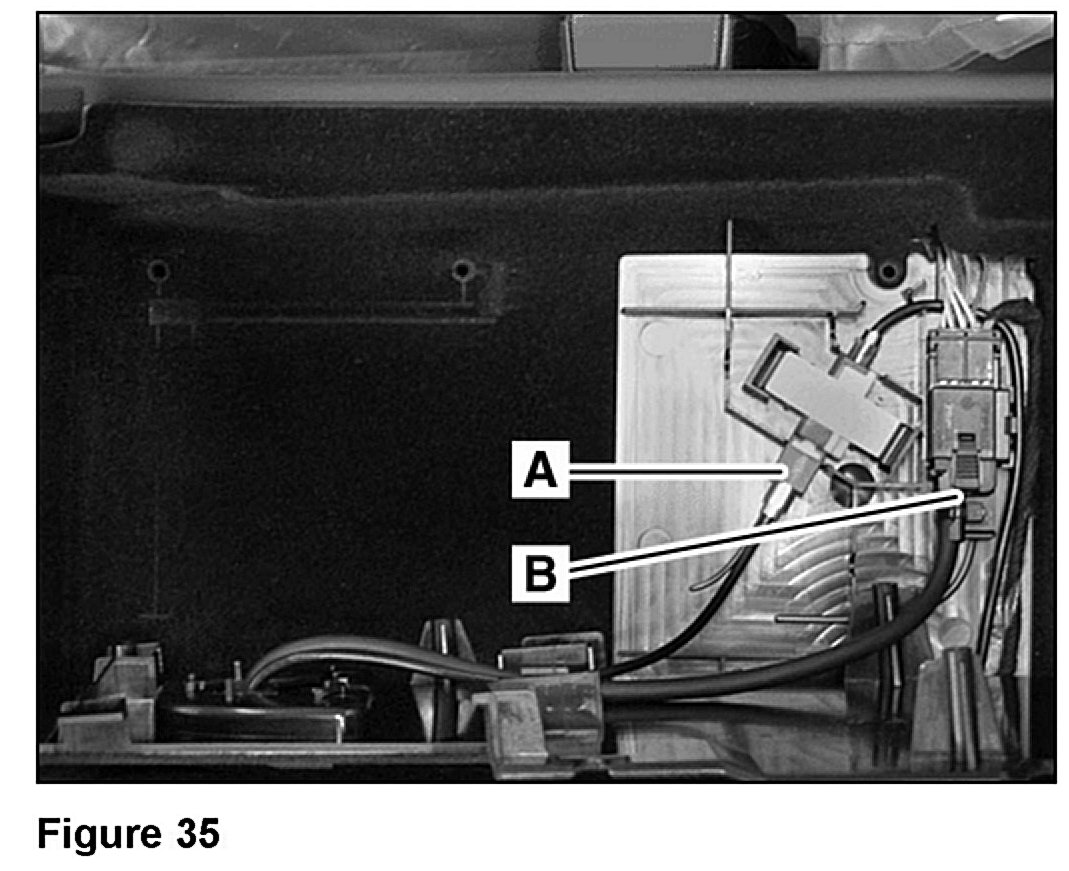

13. Connect the power supply male connector from the contact plate to the power supply female receptacle on the exposed floor of the upper compartment of the center console (A, Figure 35).
14. Connect the FAKRA male antenna lead from the contact plate to the FAKRA female receptacle on the exposed floor of the upper compartment of the center console (B, Figure 35).

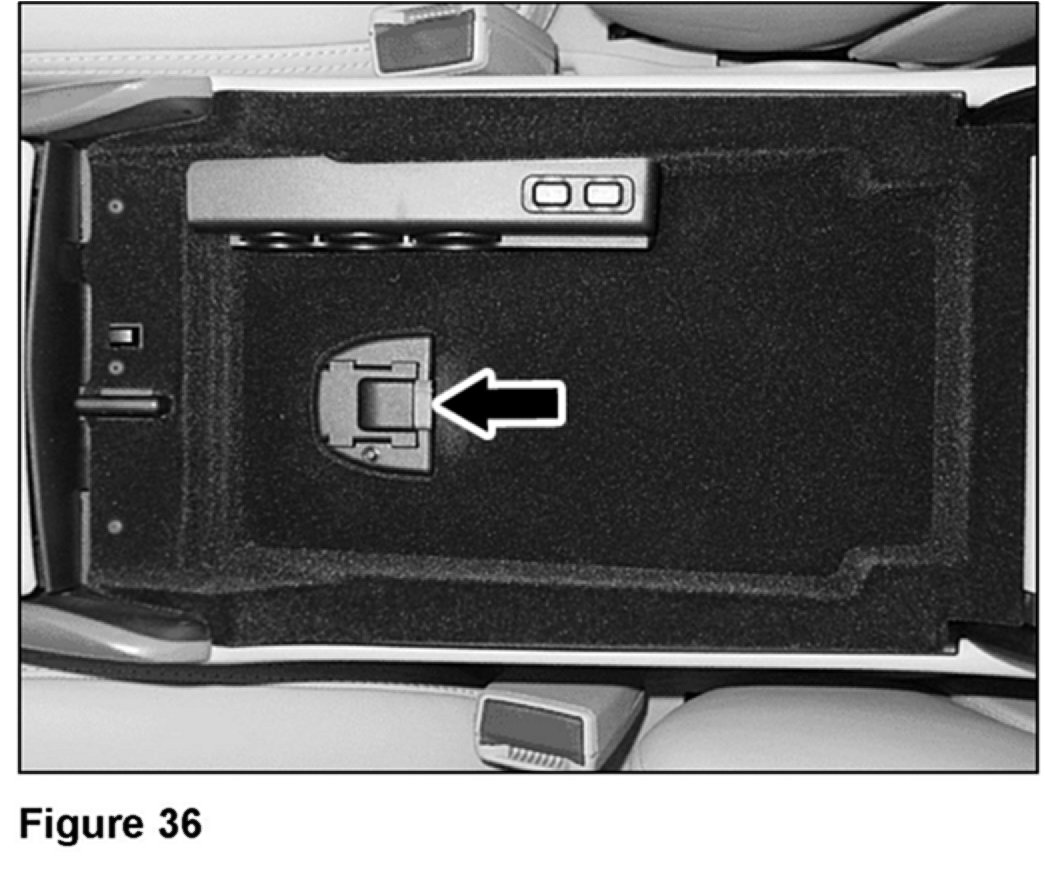

15. Reinstall the false floor with mounted contact plate and coin holder (Figure 36).
16. Reinstall the underside cover of the upper compartment of the center console with the previously removed six T10 Torx screws.
NOTICE!
Crimped or crushed cables can cause component malfunction or failure. Crimping or crushing the power supply and FAKRA antenna cables while installing the false floor can result in telephone malfunction or failure. Position the power supply and FAKRA antenna cables to prevent crimping or crushing while installing the false floor.

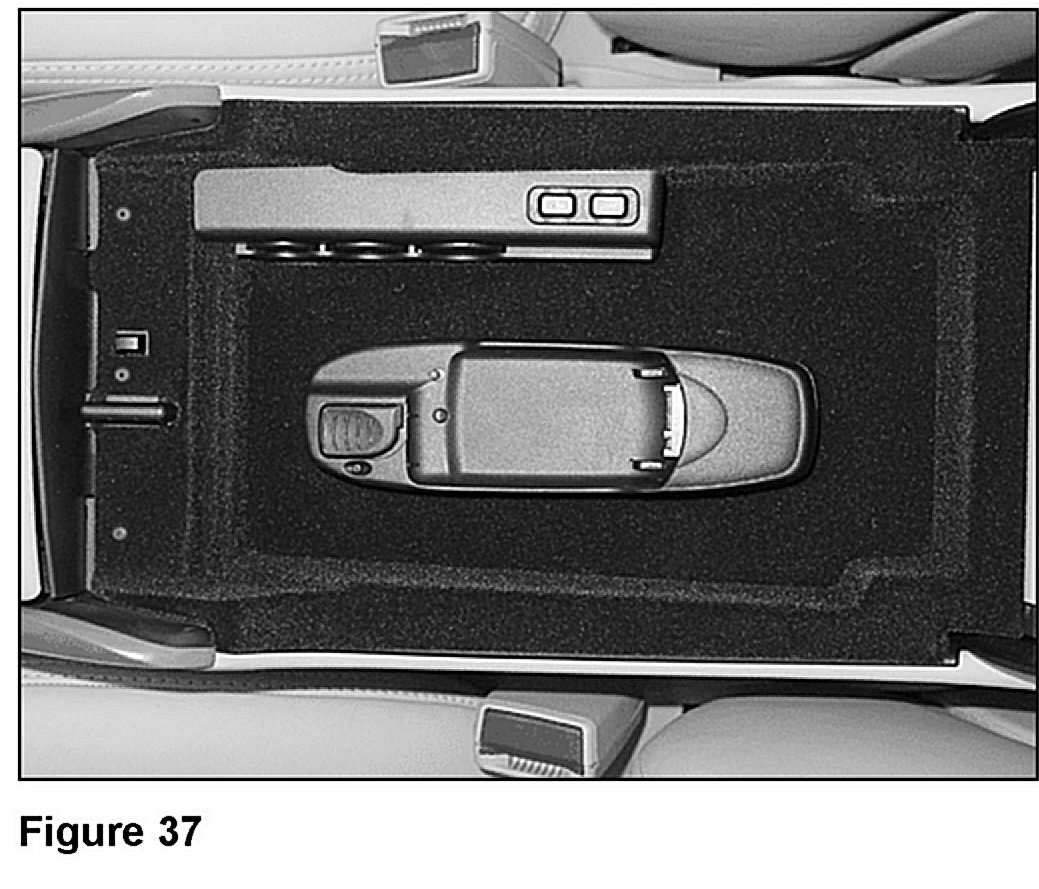

17. Attach the cradle-according to telephone type-to the contact plate by placing it atop and slightly behind the contact plate and then sliding it forward until it audibly engages (Figure 37).
18. Insert the telephone into the cradle (Figure 38).
J. Installing the push-to-talk (PTT) lever

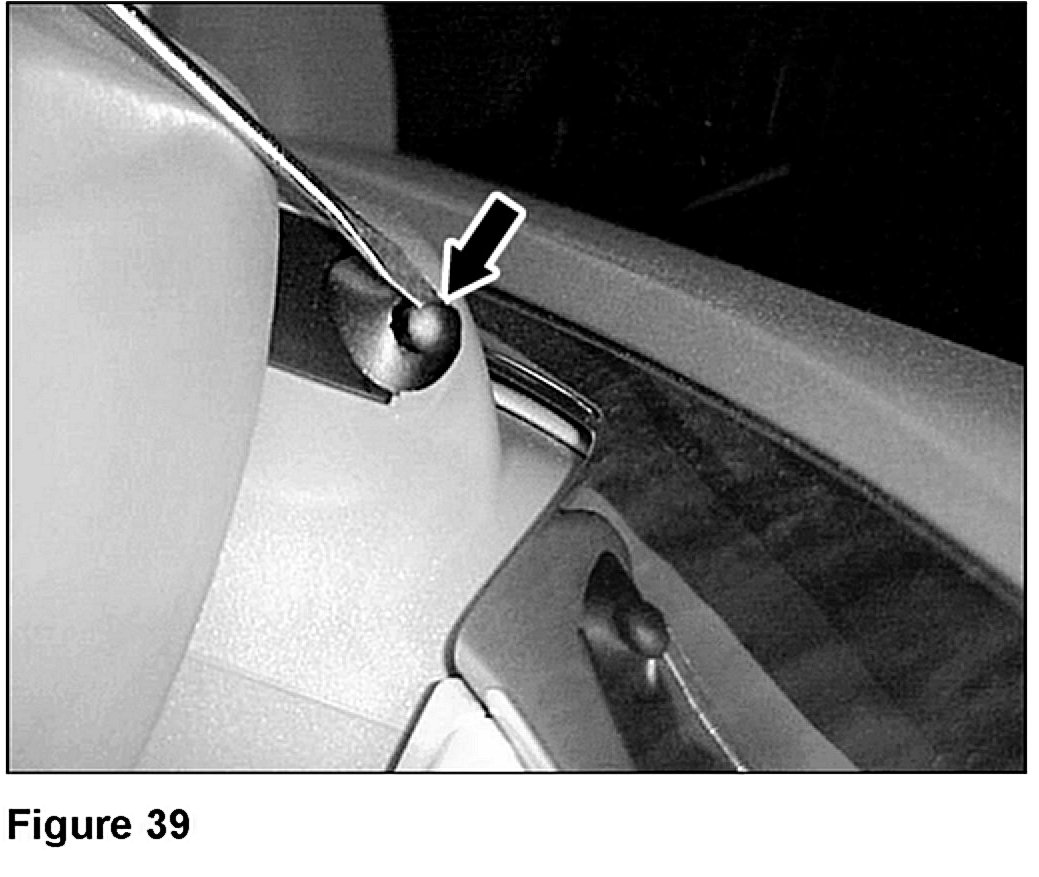

1. Remove the plastic plug inserted into the mounting hole for the PTT lever on the right side of the steering column by carefully inserting a small flathead screwdriver into the slot in the plug and then prying it out (Figure 39).

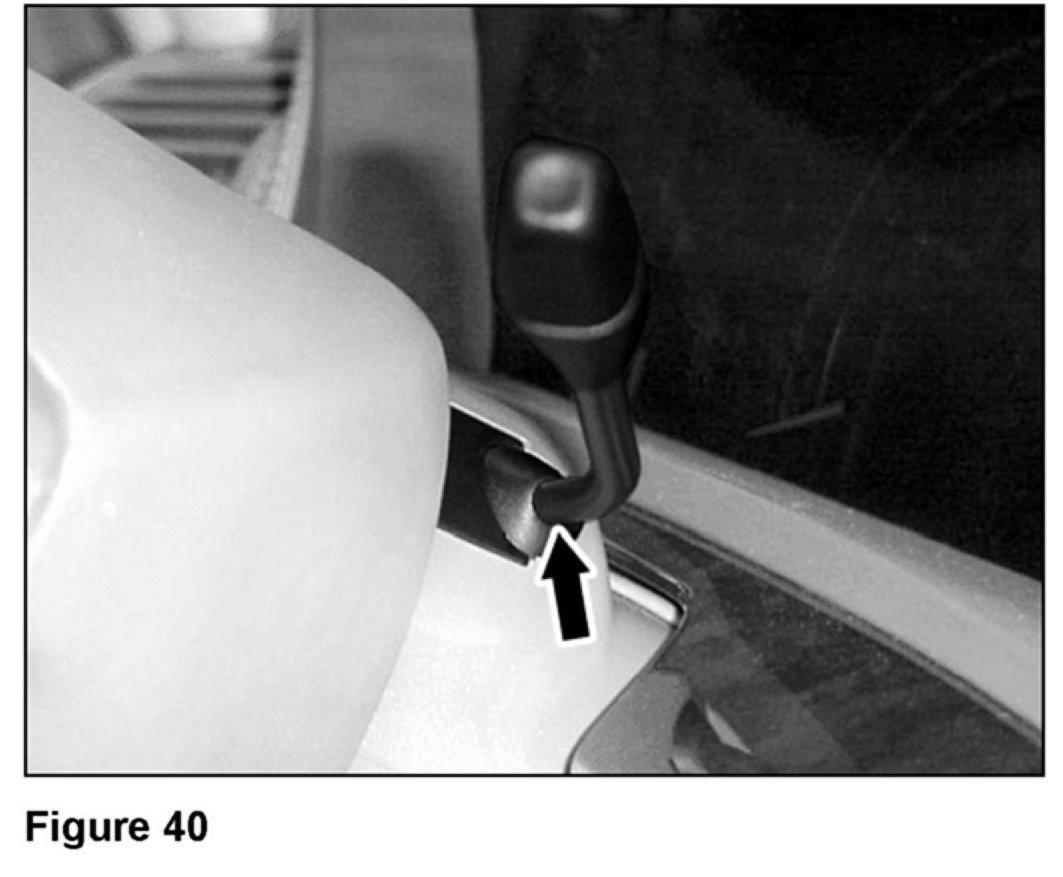

2. Insert the PTT lever into the mounting hole rotating it until its grooves interlock with the teeth in the mounting hole and then push the lever completely into the mounting hole (Figure 40).

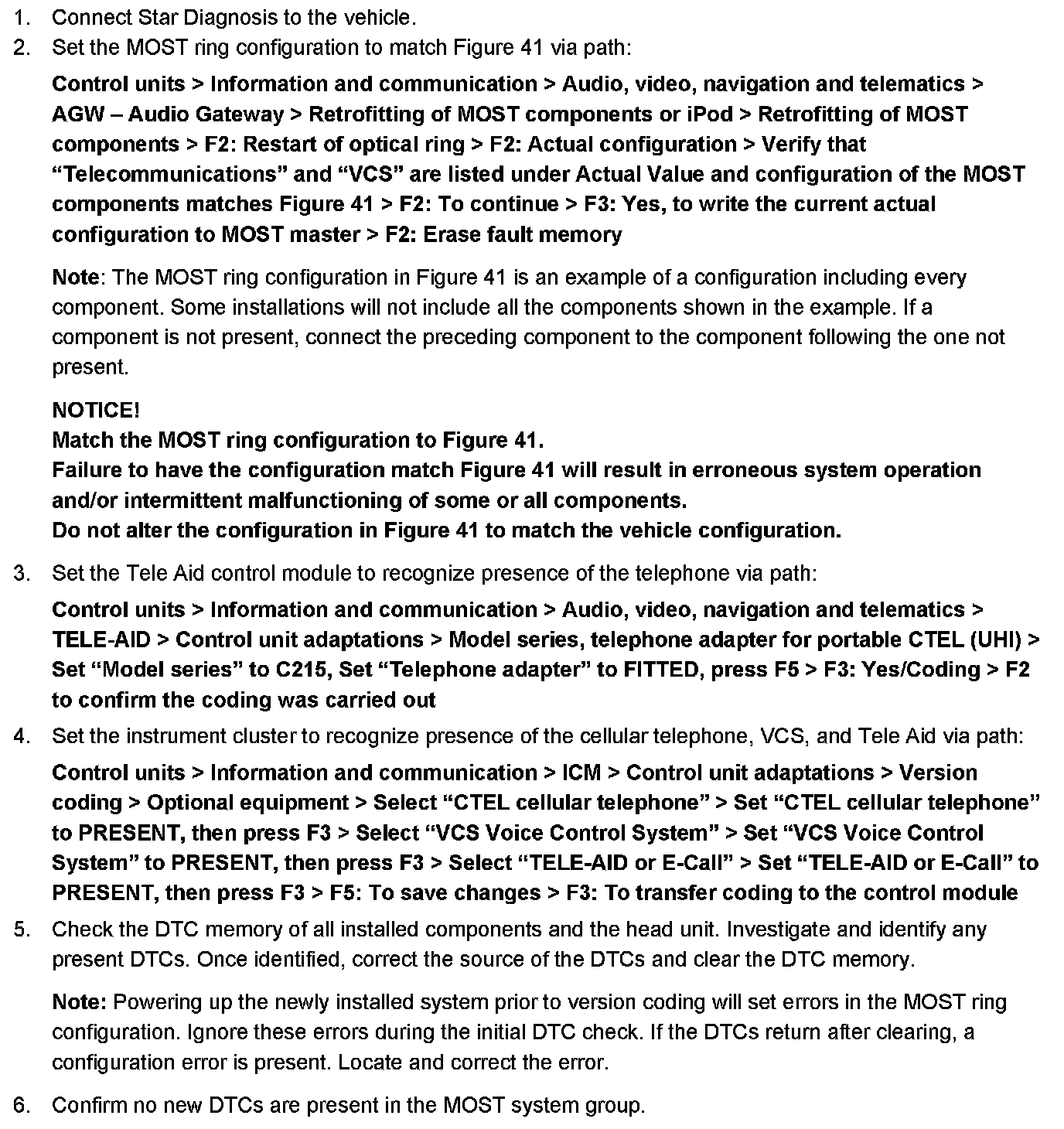

K. Version coding

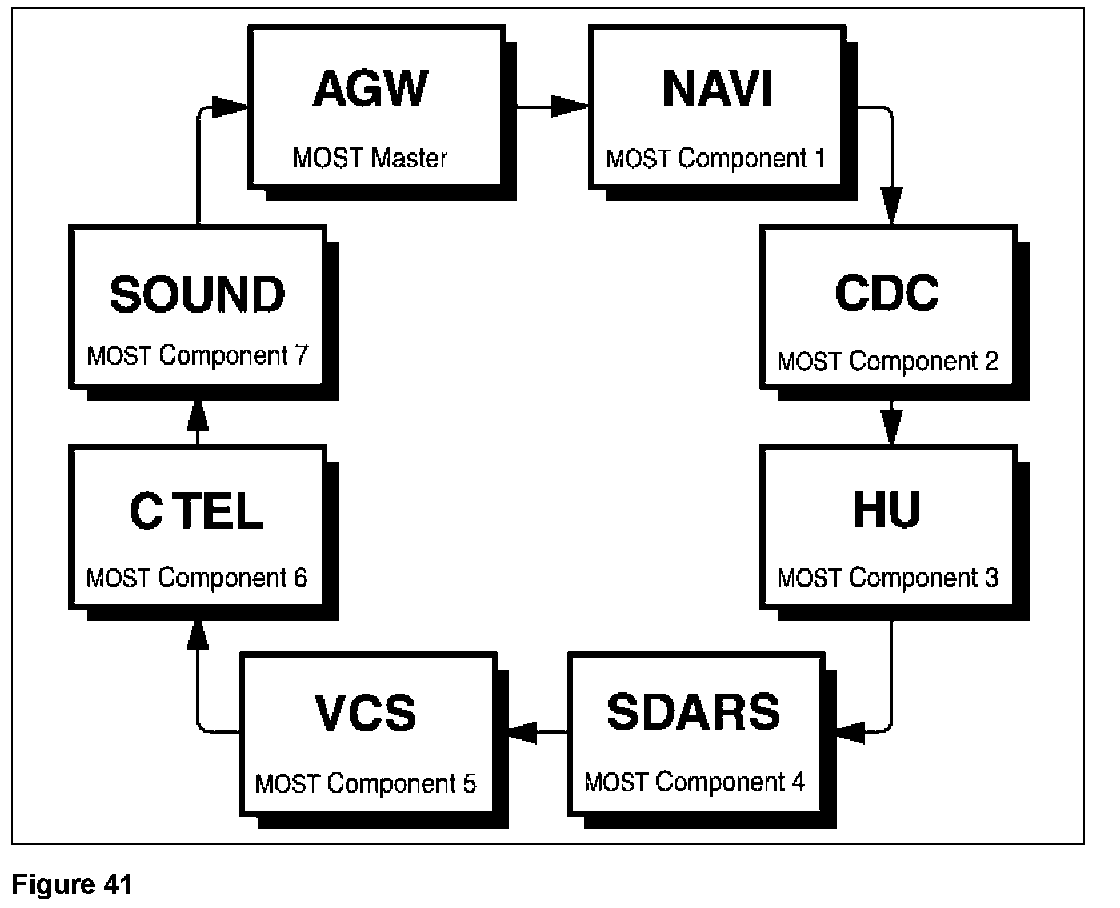

L. MOST ring configuration
M. Final assembly and function testing
1. Verify proper telephone operation per the following checklist:
^ Handset dialing is functioning correctly-Use an active telephone to dial a valid telephone number. Listen for a dial tone and ring.
^ Head unit dialing is functioning correctly-Use an active telephone to dial a valid telephone number. Listen for a dial tone and ring over the vehicle audio system and then end the call via the steering wheel controls.
^ Handset incoming/outgoing call audio is clear-Use an active telephone to dial a telephone number, connect and either speak to a live person or leave a voicemail message.
^ Hands-free incoming/outgoing audio is clear-Use an active telephone to dial a telephone number, connect and either speak to a live person or leave a voicemail message.
^ Automatic memory download is functioning-Connect the telephone to the vehicle and wait 3 minutes for the download to complete. After 3 minutes, check several random phonebook locations and match the received and dialed call list to the telephone's list. (It may be necessary to store a test number in the telephone handset for this feature to operate. Stored numbers should be available for dialing from the head unit after automatic download.)
^ Signal strength-Note the telephone signal strength before and after connected to the vehicle. The signal strength should stay constant or increase when the telephone is connected to the vehicle. If the signal strength decreases, a problem exists.
2. Reinstall the left side paneling and floor paneling in the trunk.
^ See WIS document AR68.30-P-4600M, "Remove/install paneling in trunk"
