Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
CL 65 AMG (215.379) V12-6.0L Turbo (275.980)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Information Bus
>>

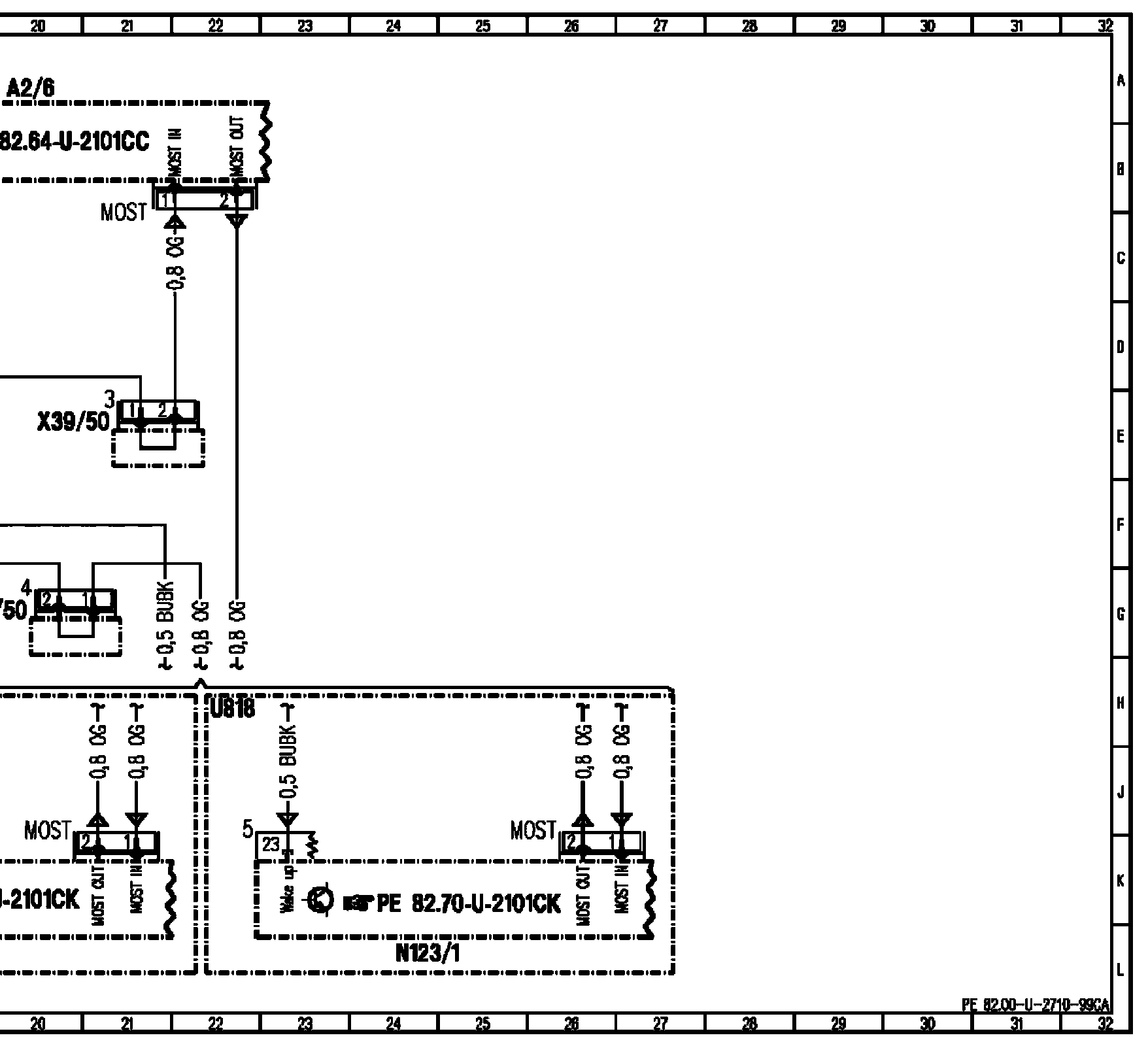

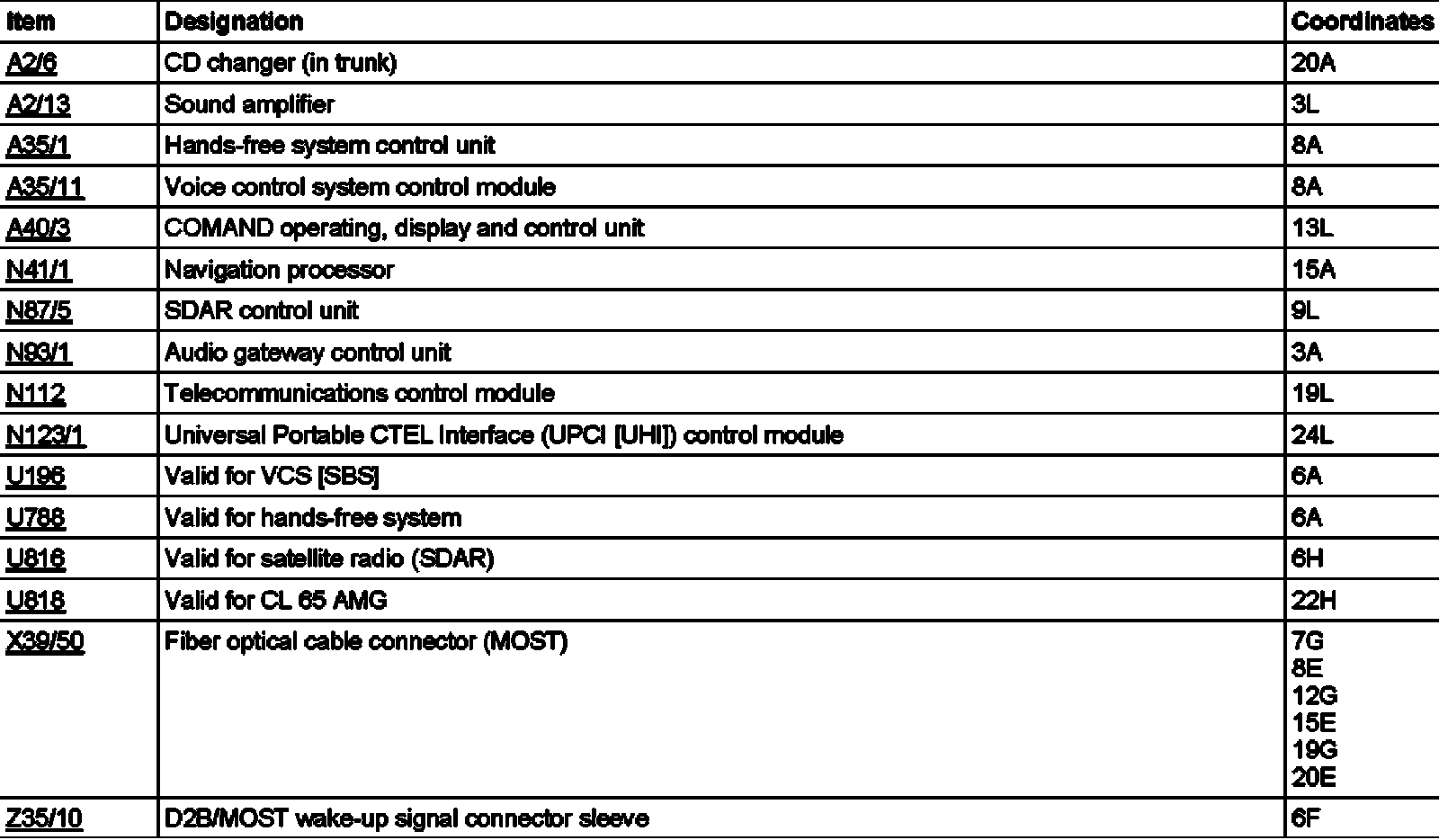

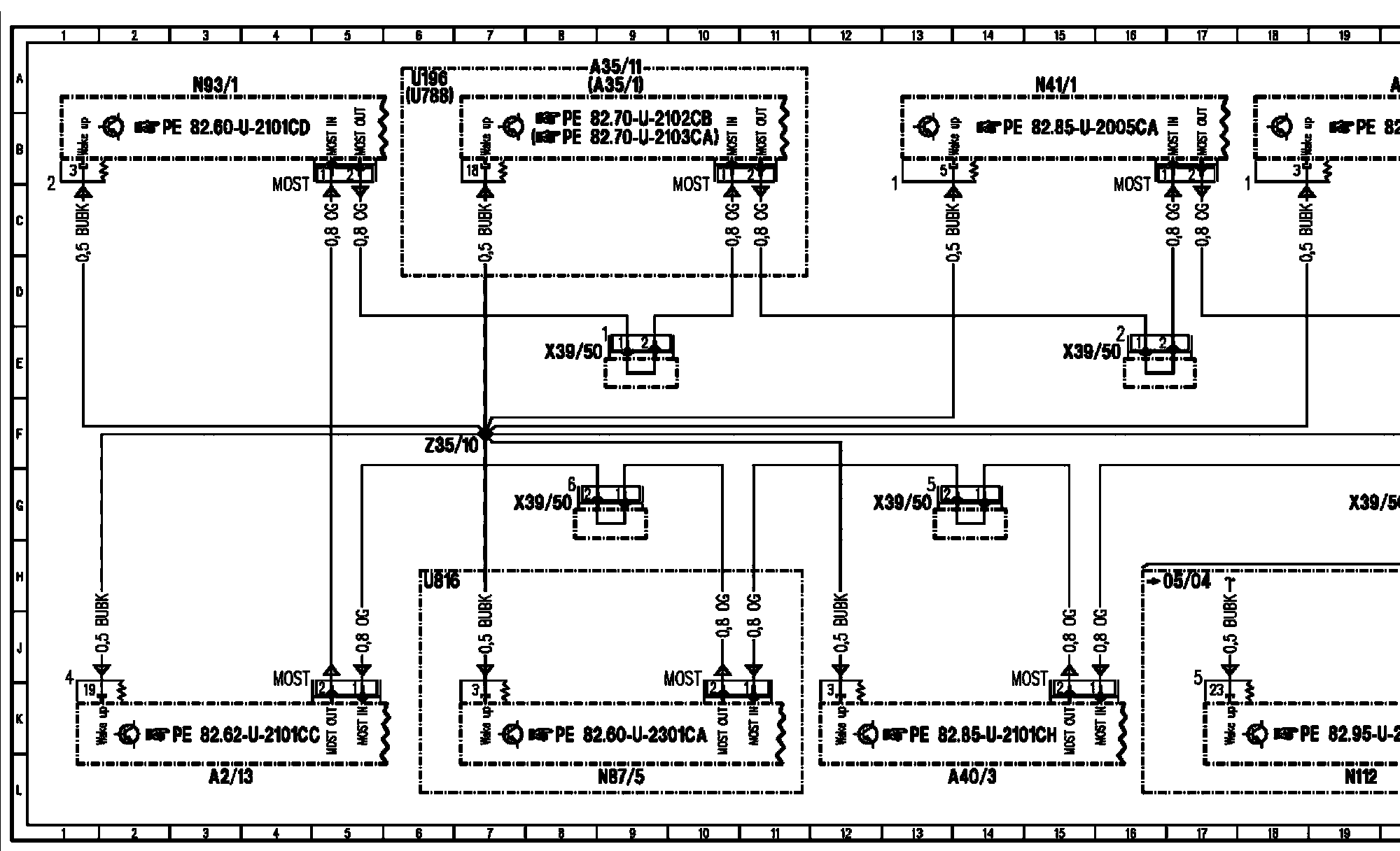

PE82.10-U-2710CA MOST Bus
PE82.10-U-2710CA MOST Bus
PE82.10-U-2710CA MOST Bus
