Splash Guard: Service and Repair

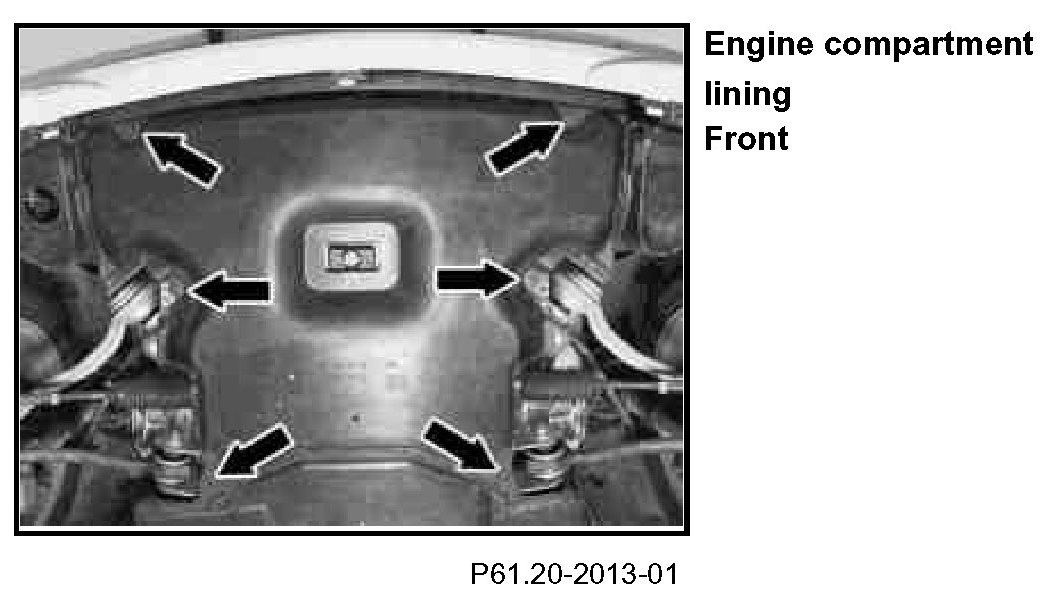

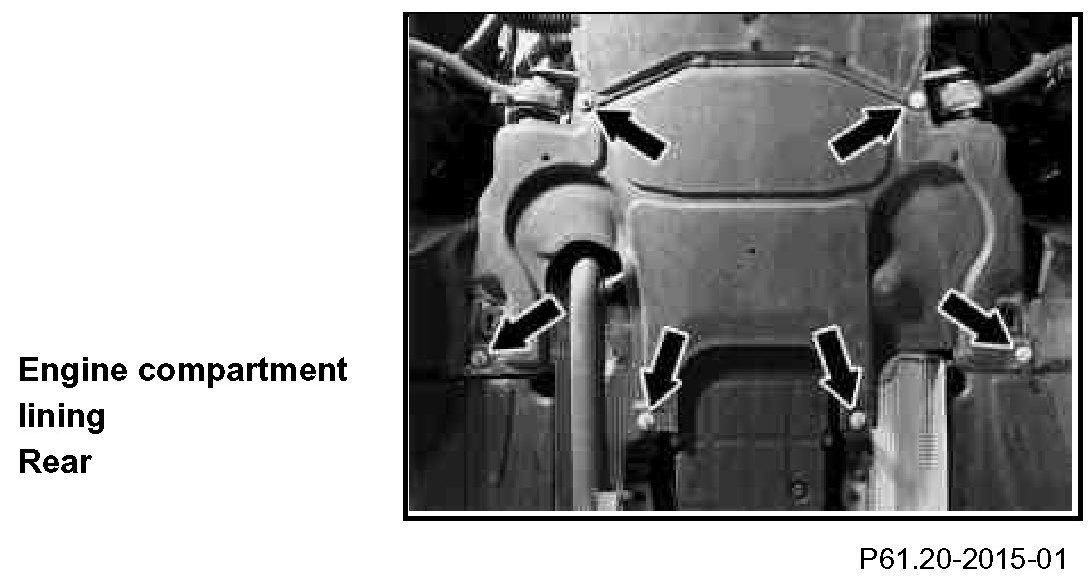

AR61.20-P-1105P Remove And Install Bottom Engine Compartment Paneling MODEL 203

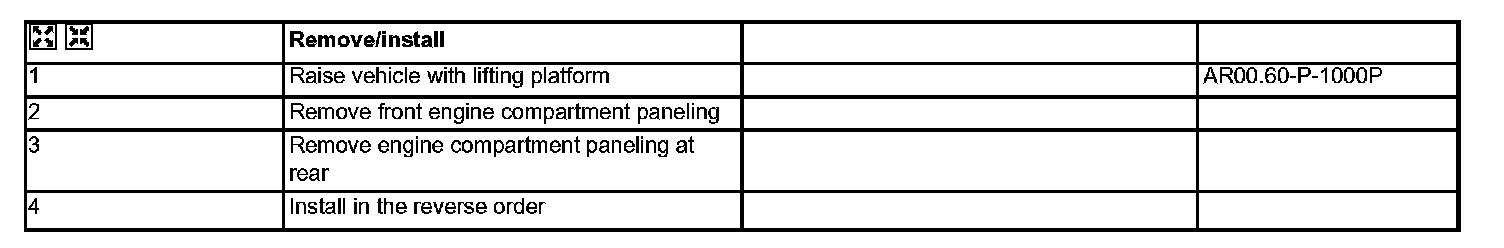

Steps 1 - 4:
