CLK 500 Cabriolet (209.475) V8-5.0L (113.968)
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Oil Pan, Engine
Oil Pan, Engine
AR01.45-P-7500-06F
Oil pan

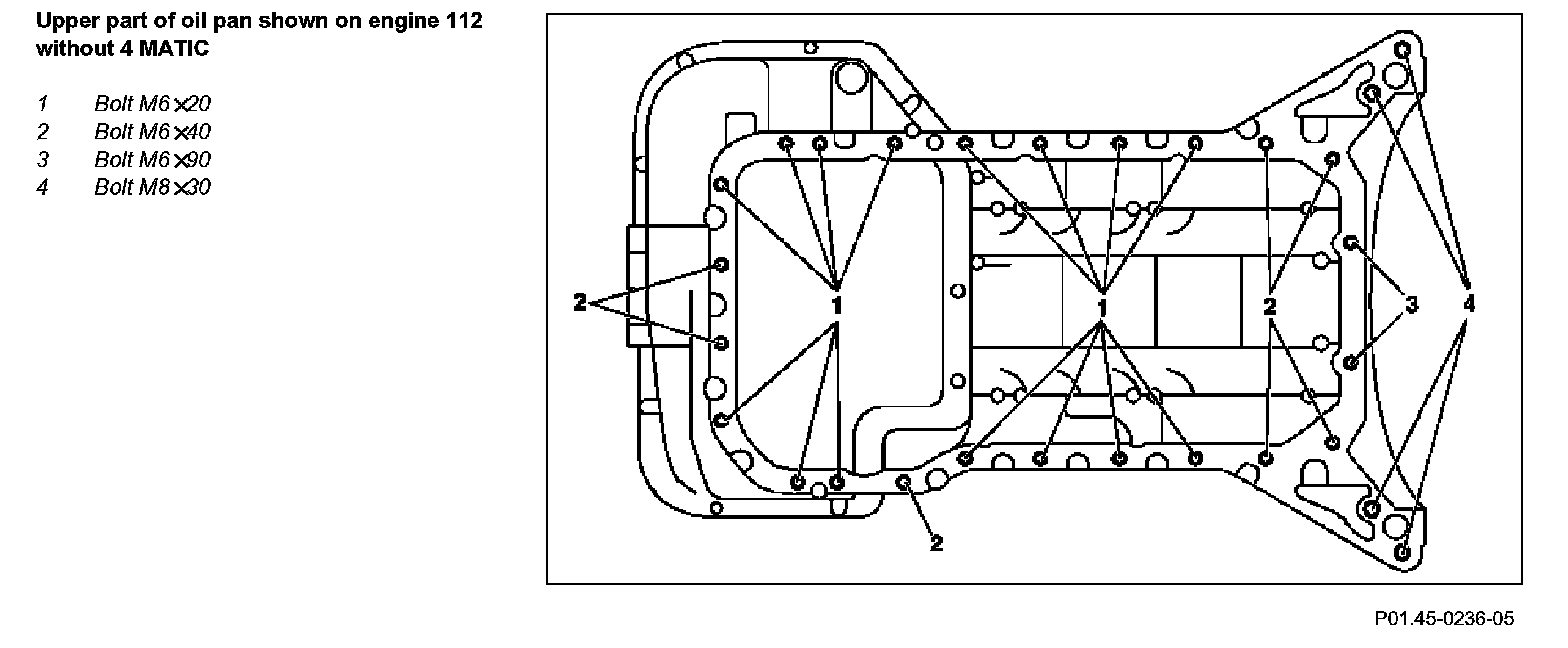

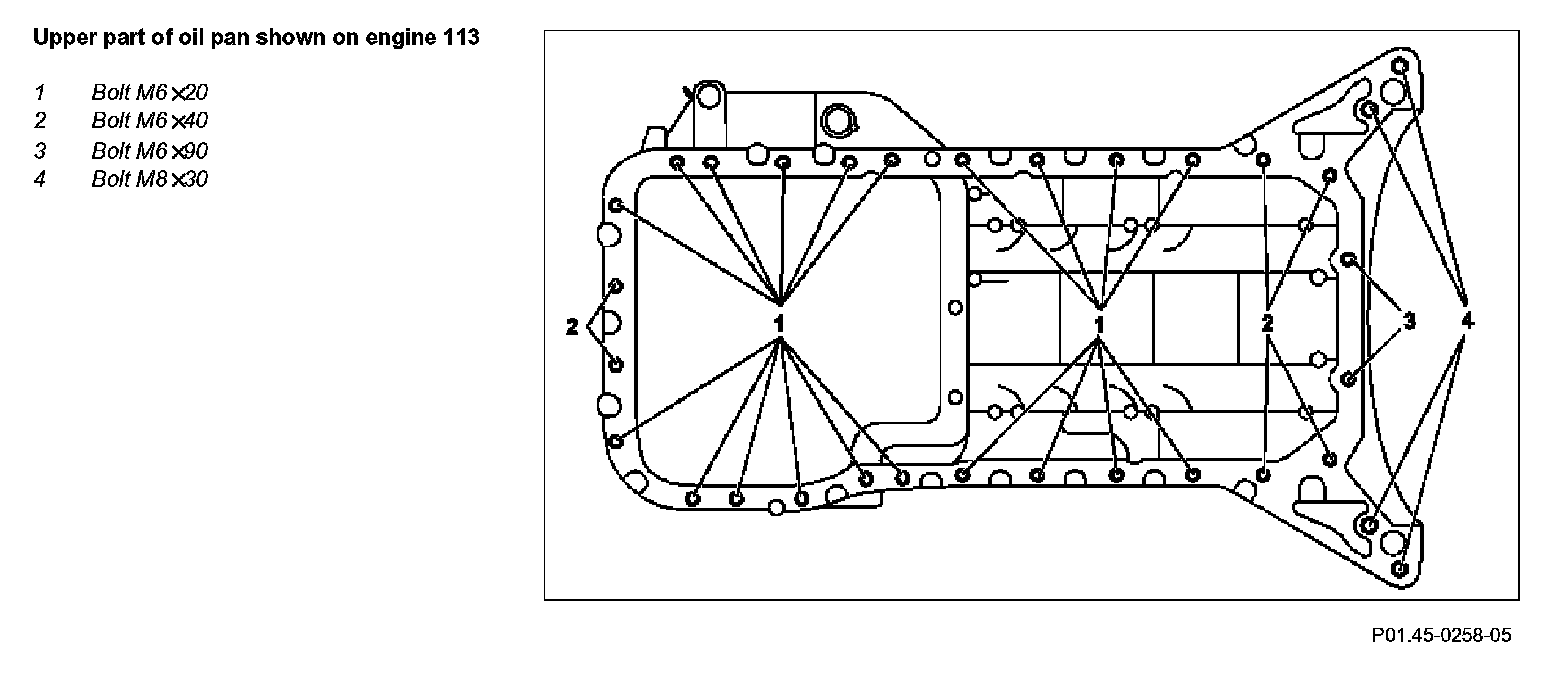

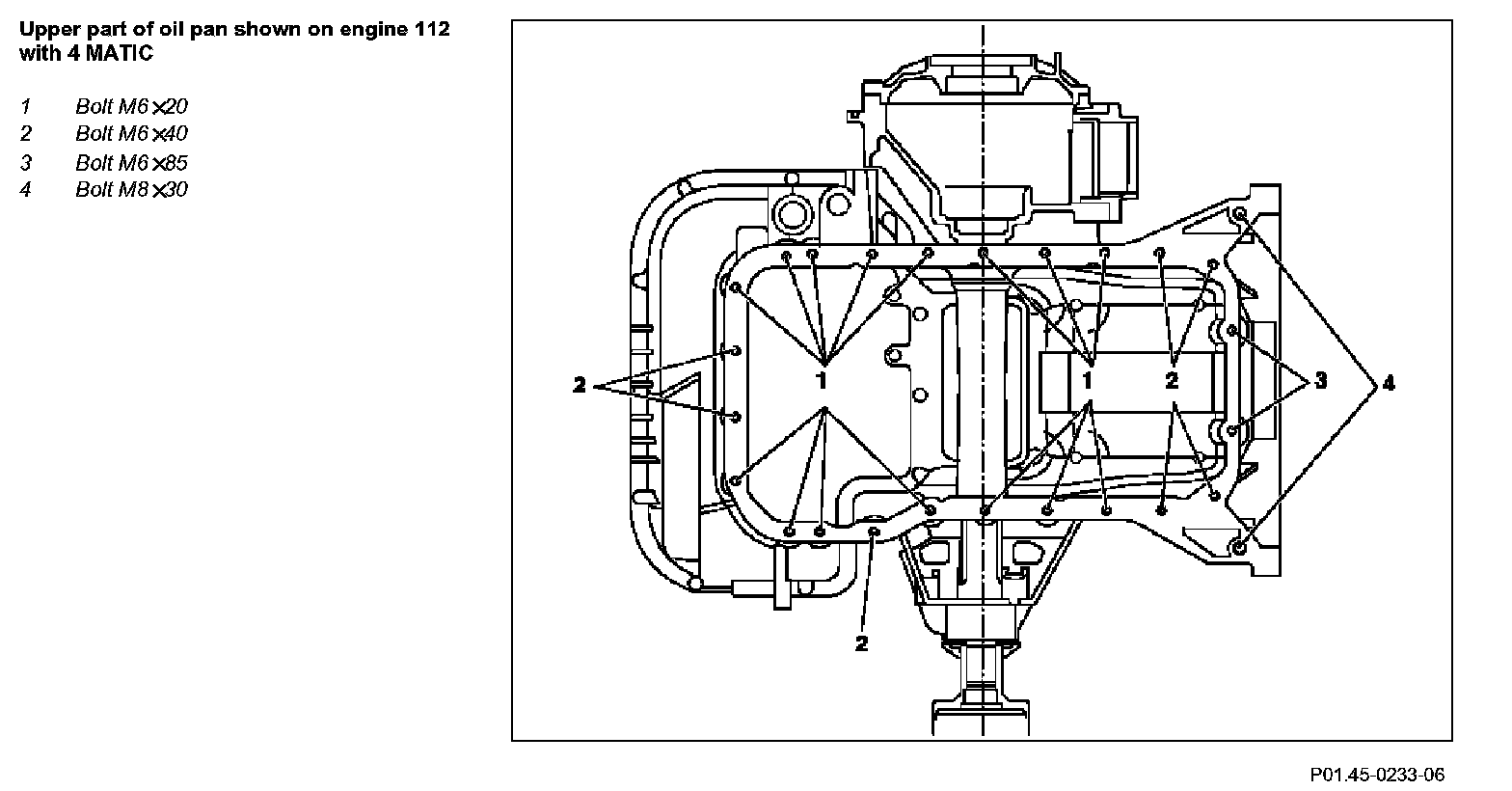

bolt diagram
Component Identification:
Component Identification:
Component Identification:
