Body - Trunk Gas Strut Replacement Information
Date: December 11, 2007Order No.: P-B-88.50/71
Supersedes:
Group: 88
SUBJECT:
Model 209.456/465/472/475/476/477
From VIN F229896 to F242483 and T084581 to T091781
Gas Operated Struts on Trunk Lid

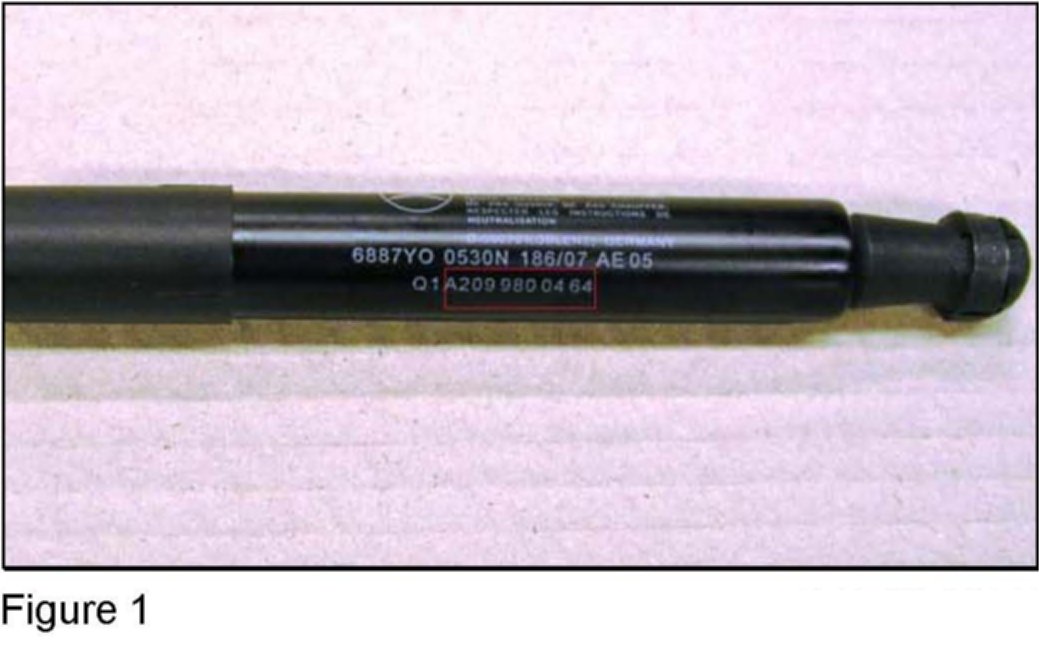

If you receive customer reports in the above model vehicles of the failure of the gas operated struts on the trunk lid, replace both of the gas operated struts (in pairs). Please pay attention to the vehicle VIN ranges. Only gas operated struts with part number A209 980 04 64 are affected (Figure 1).
Parts Information
Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on December 11, 2007. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

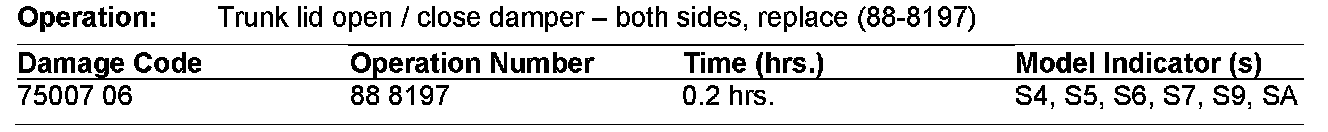

In Case of Warranty, use the table.
