A. Installation Preparation

1. Read these installation instructions in their entirety before proceeding.

2. Unpack and compare the installation kit contents against the Parts Information list - Section M.

3. Place the operating guides and customer accessories in the glove box or appropriate storage or stowage compartment.

4. Remove the floor paneling and right and left side paneling in the trunk.

^ See WIS document AR68.30-P-4600QA, "Remove paneling in trunk"

5. Install the following relays and fuses if not present:

^ N10/1kP relay in the front SAM (N10/1)

^ N10/2kF relay in the rear SAM (N10/2)

^ N10/1f44, 5 amp fuse in the front SAM (N10/1)

^ N10/2f13, 5 amp fuse in the rear SAM (N10/2)

^ N10/2f16, 7.5 amp fuse in the rear SAM (N10/2)

^ F34f36, 7.5 amp fuse in the interior fuse box (F34)

^ F34f40 7.5 amp fuse in the interior fuse box (F34)

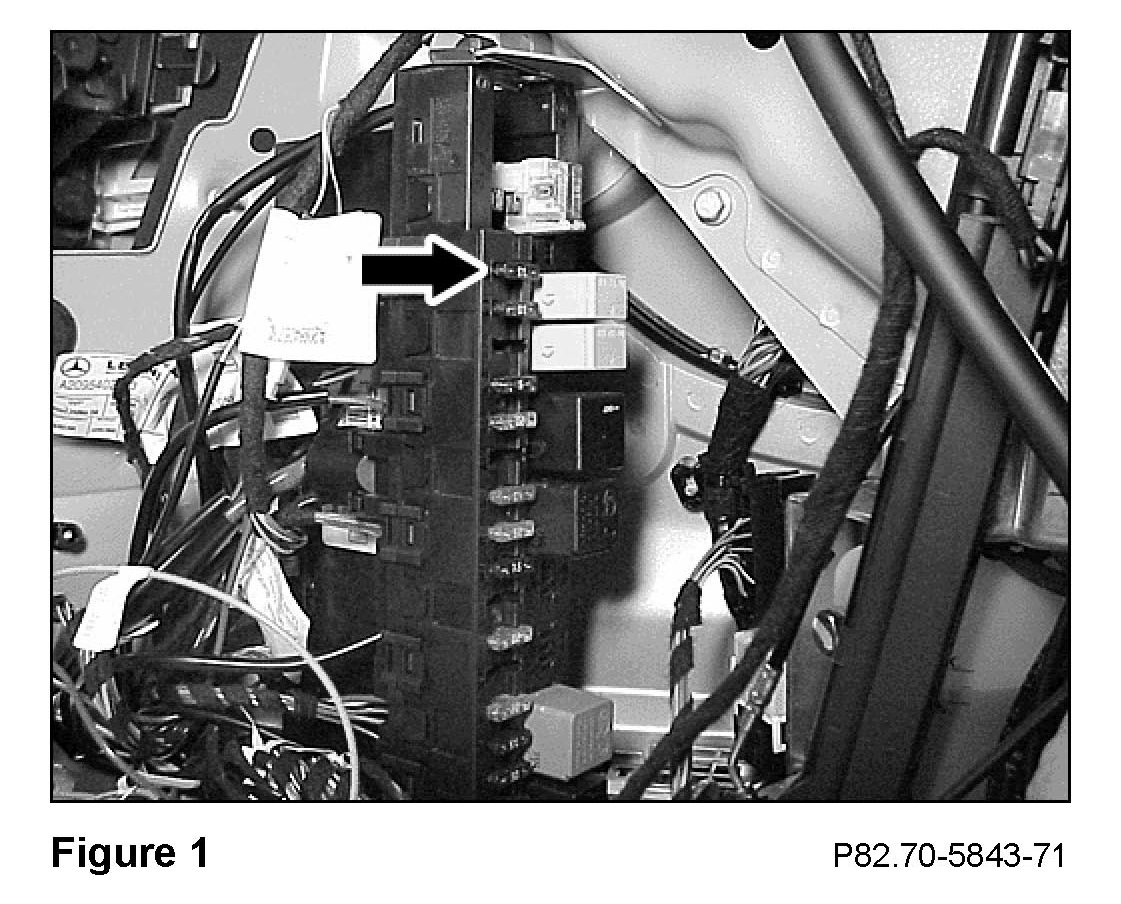

6. In the exposed left side of the trunk, insert the kit-included, 7.5 amp fuse (Figure 1) into position #16 of the rear SAM control unit with fuse and relay module.
