C. Identifying the Cables

1. In the exposed right side well of the trunk, find the 13 telephone electronics cables with foam-covered connectors (Figure 5) and carefully cut the wire ties to release them.

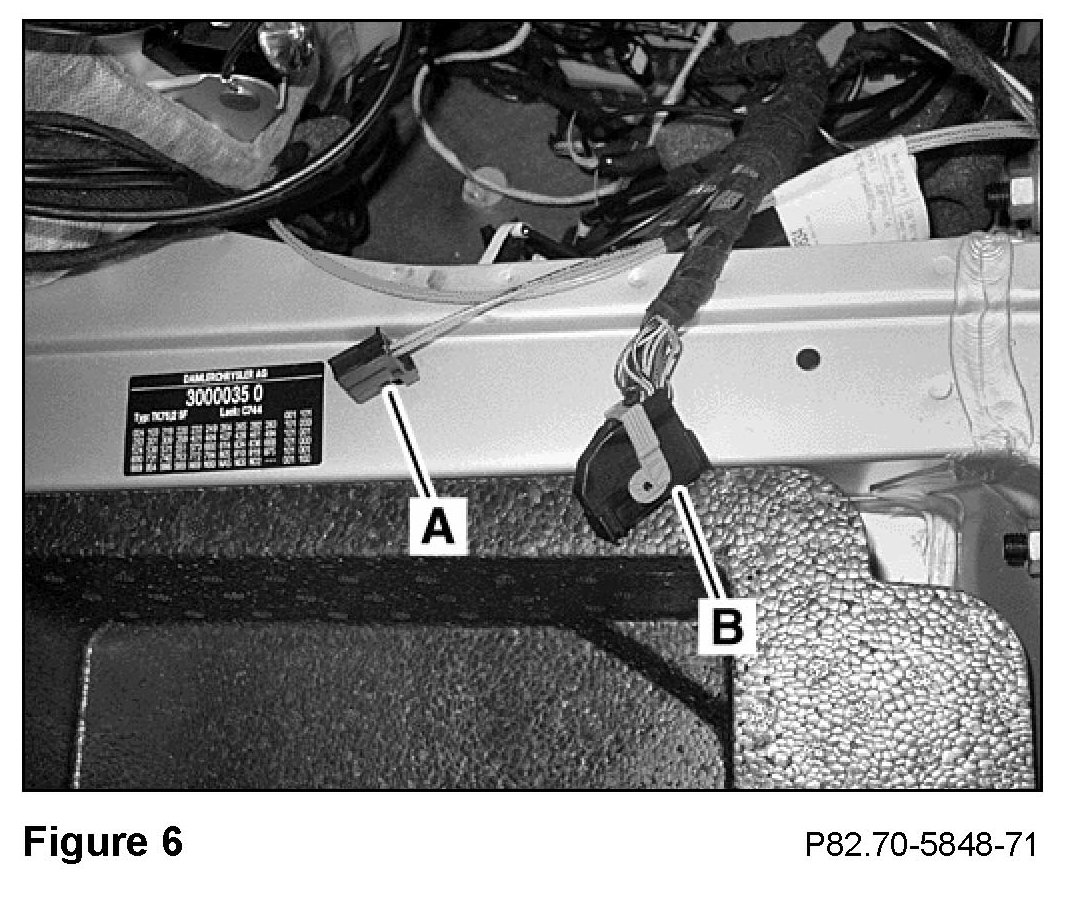

2. Remove or fold back the foam sleeves to expose the connectors for the MHI control module and identify the:





^ MHI MOST connector (A, Figure 6)

^ MHI power supply connector (B, Figure 6)

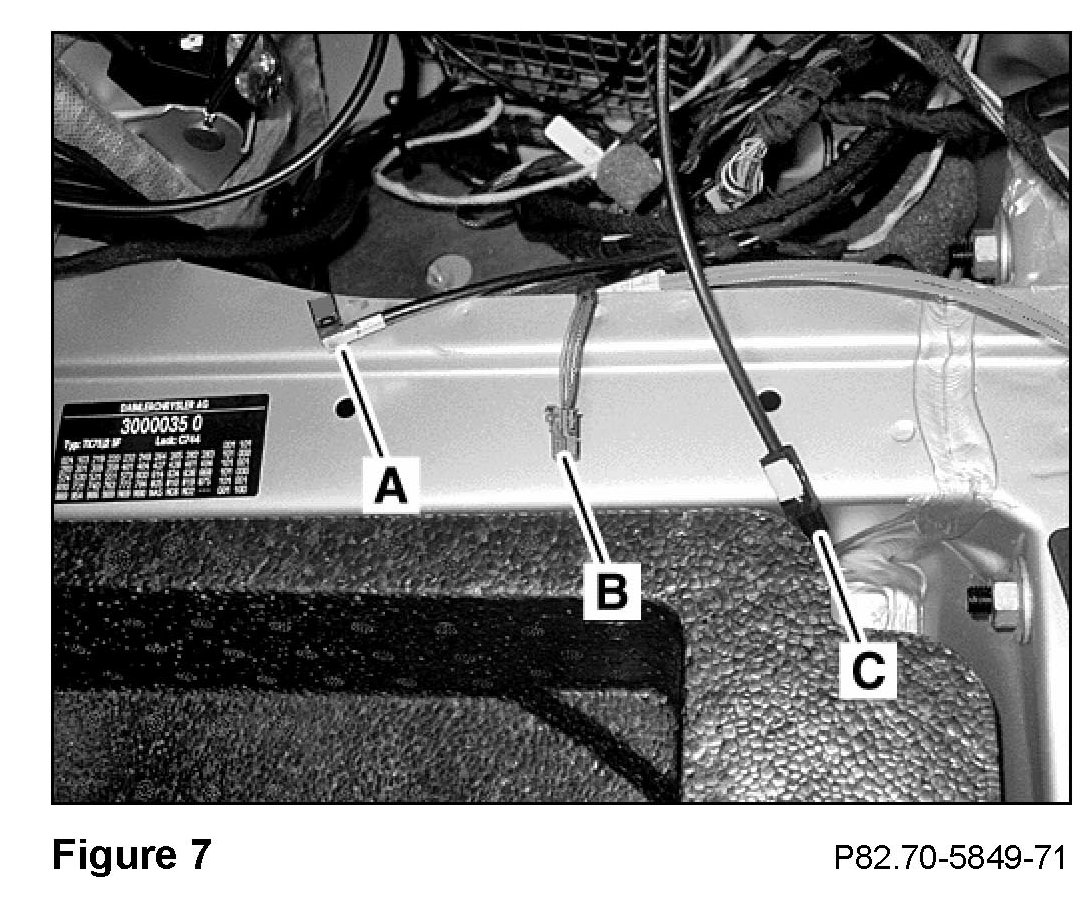

3. Remove or fold back the foam sleeves to expose the connectors for the linear compensator and identify the:





^ Linear compensator female FAKRA antenna lead (A, Figure 7)

^ Linear compensator power supply connector (B, Figure 7)

^ Linear compensator male FAKRA antenna lead (C, Figure 7)

4. Remove or fold back the foam sleeves to expose the connectors for the antenna switch and identify the:





^ Main antenna lead (white, male FAKRA) (A, Figure 8)

^ 4-pin power supply connector (B, Figure 8)

^ Telephone lead (black, female FAKRA labeled "KPS") (C, Figure 8)

^ Tele Aid lead (white, female FAKRA labeled "LCT") (D, Figure 8)
