Accessory Control Display: Service and Repair

AR82.85-P-1000TX Remove And Install COMAND Operating, Display And Controller Unit
- with CODE (526) COMAND (without navigation)
- with CODE (527) COMAND APS (with navigation)
- with CODE (530) COMAND APS USA (with navigation system)

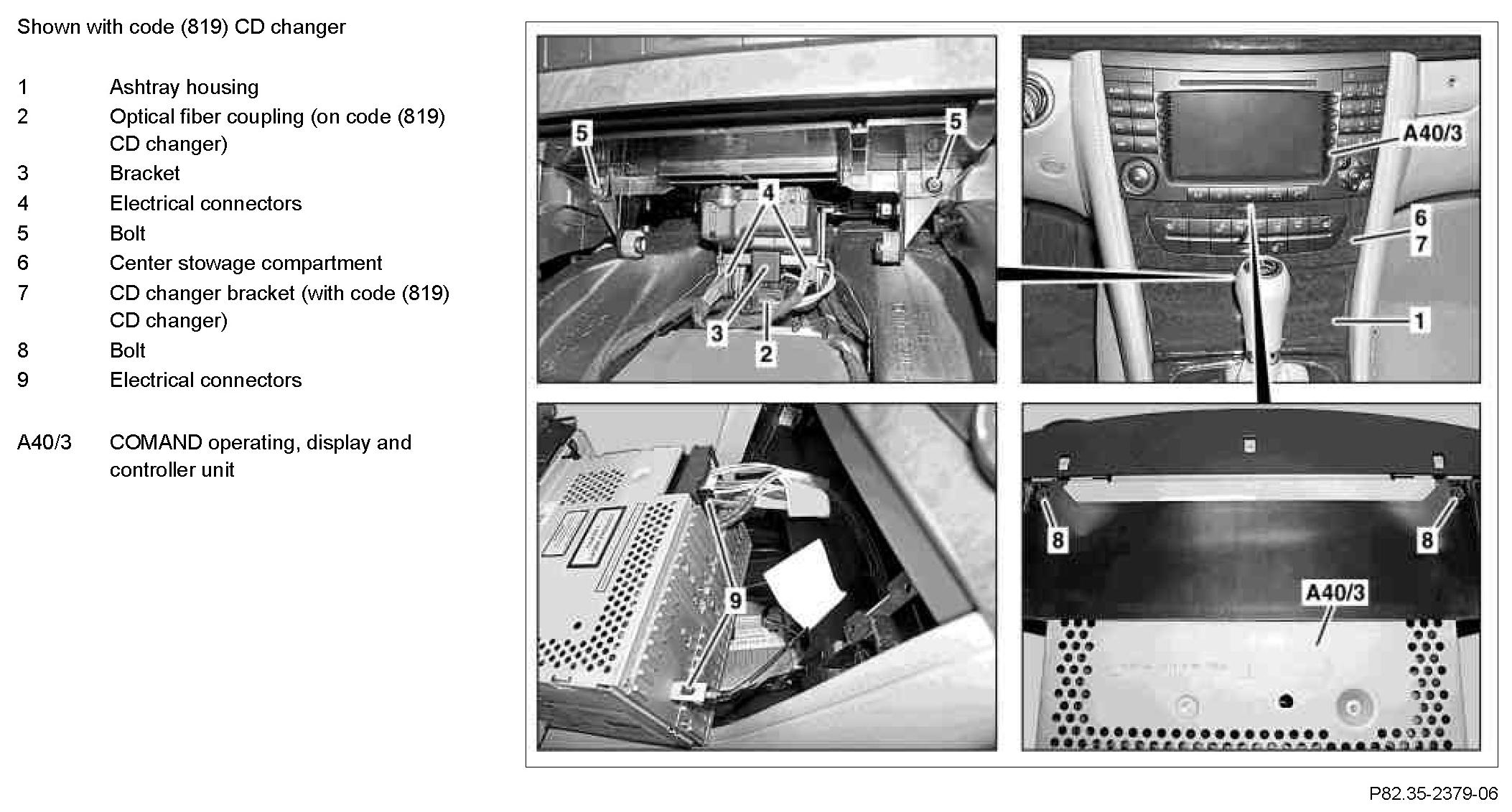

Component Identification:

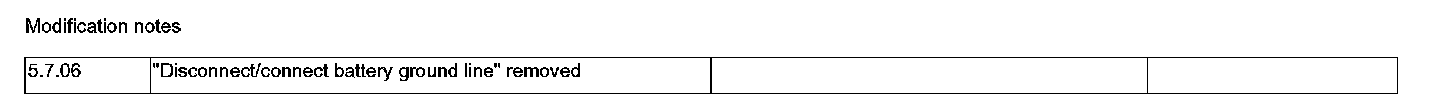

Modification Notes:

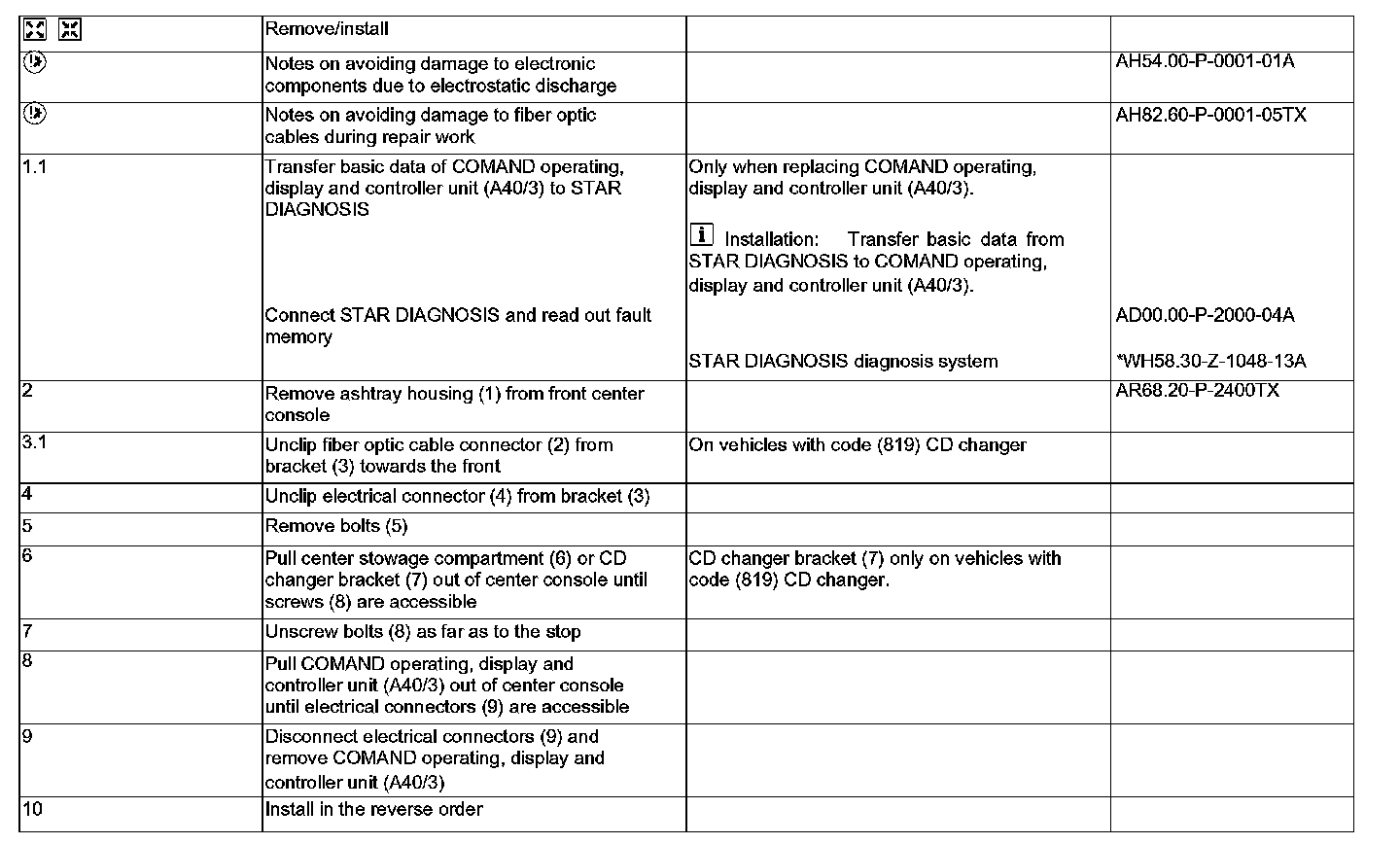

Steps 1.1 - 10:

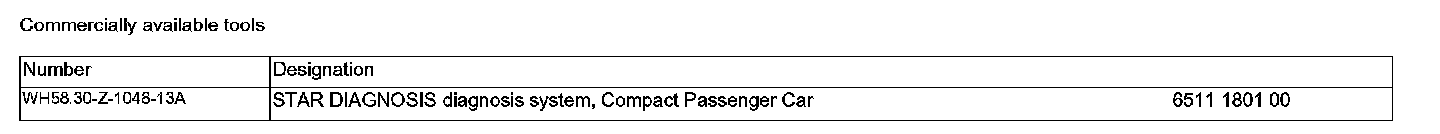

Commercially Available Tools:
