GF82.00-P-4001TXA Fiber Optical Cable Component Description
GF82.00-P-4001TXA Fiber Optical Cable Component Description
- with CODE (498) Japan version

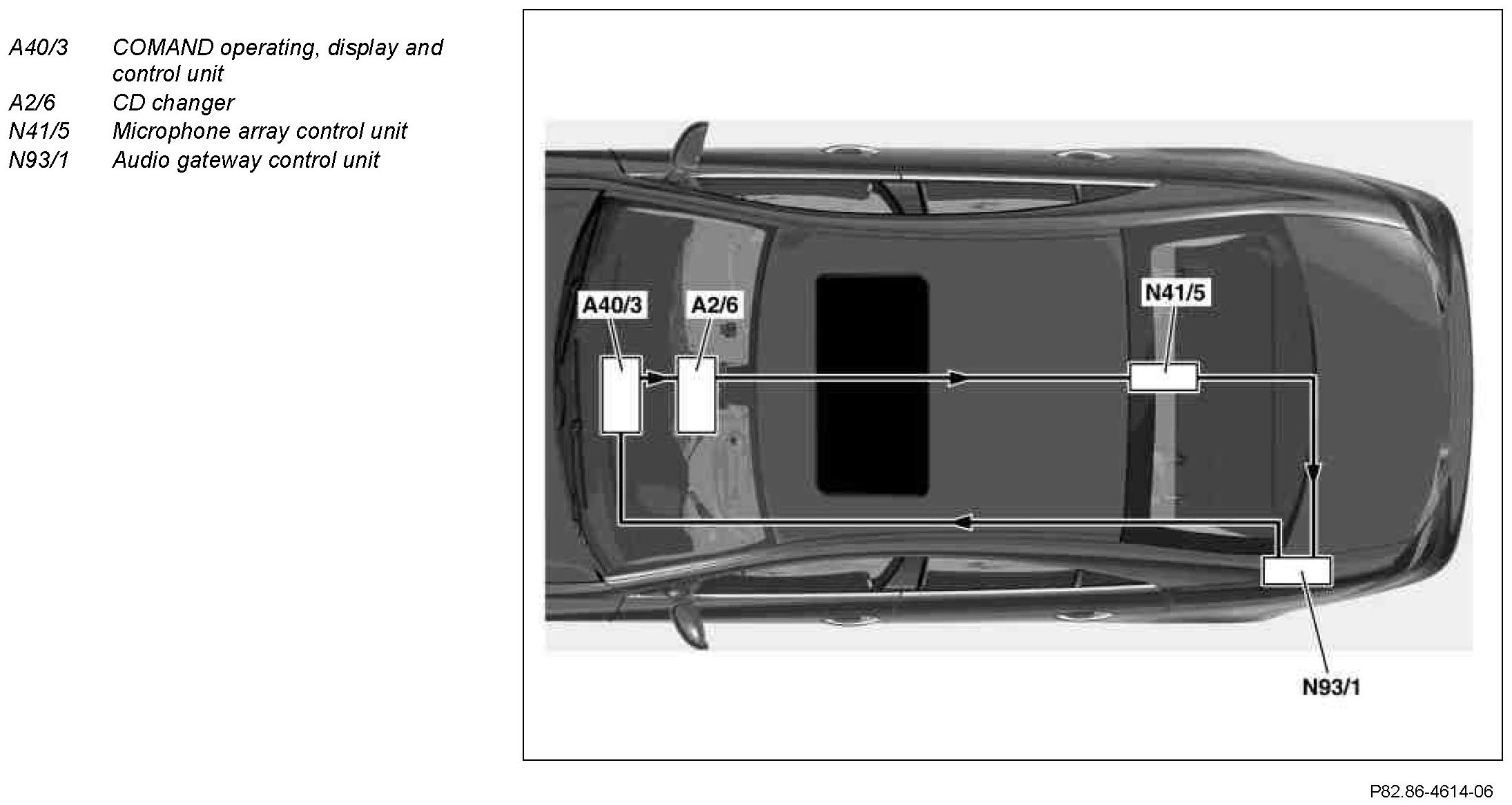

Component Identification:
The light for the data transfer in the MOST ring has a wavelength of 650 nm. Visible light is in the range of blue with 400 nm to red with 800 nm.
Optical attenuation of the light signal can occur in the fiber optical cable.
This attenuation is dependent on:
^ the length of the line between the components
^ Bending radii for routing (minimum bending radius 25 mm)
^ Condition of fiber optical cable (mechanical damage, crushing)
If a ring subscriber fails, it can be removed from the MOST ring. In order to assure the functional availability of the remaining components, the MOST ring has to be closed again with passive connectors.
The fiber optical cable consists of plastic with a fiber diameter of 1 mm. Each fiber optical cable is protected against mechanical damage and against admission of outside light with the help of an orange-colored sheath.
