Radio, Stereo, and Compact Disc: Service and Repair

AR82.60-P-7605TX Remove/Install Main Audio Components
- audio gateway control unit

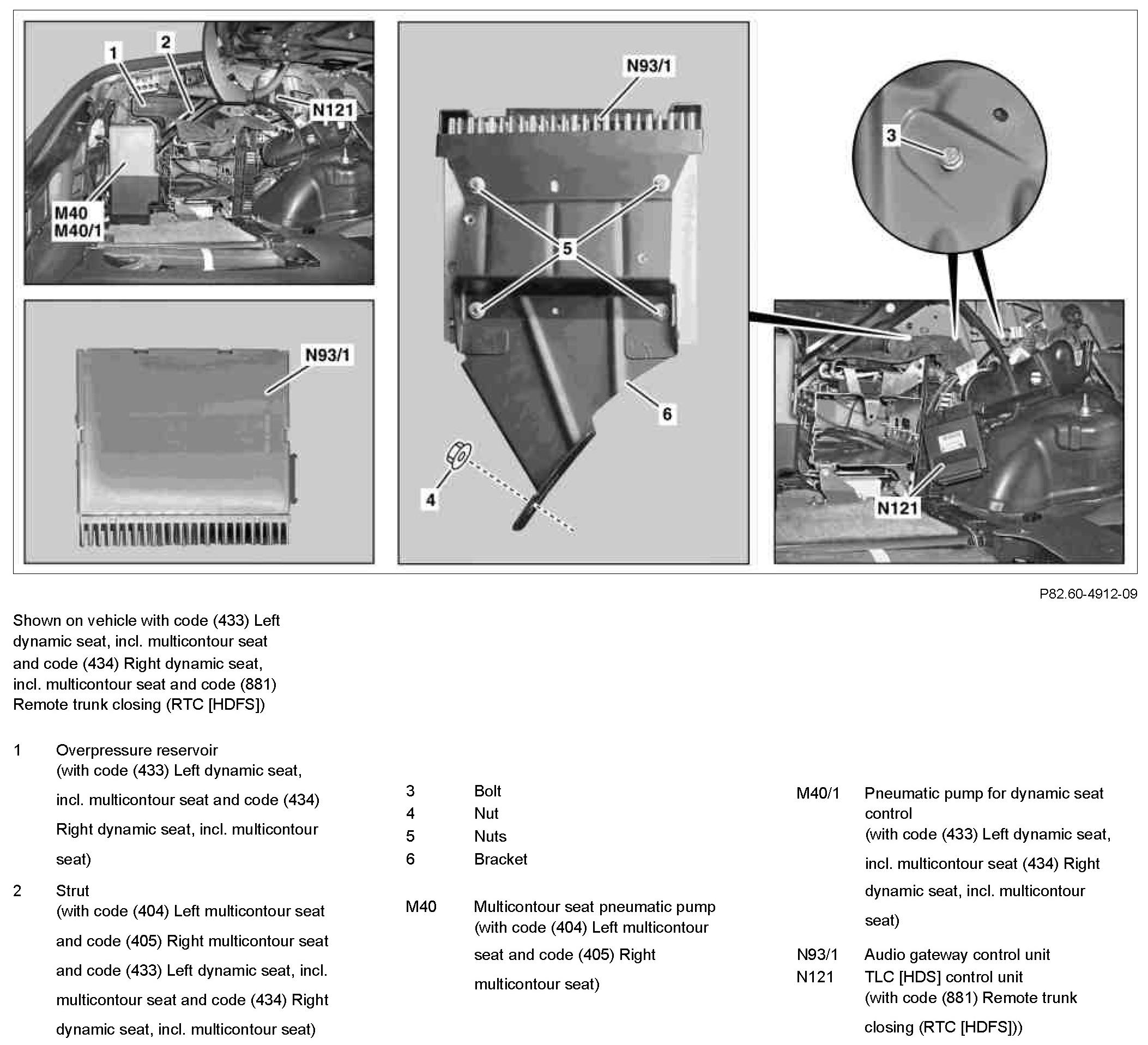

Component Identification:

Modification Notes:

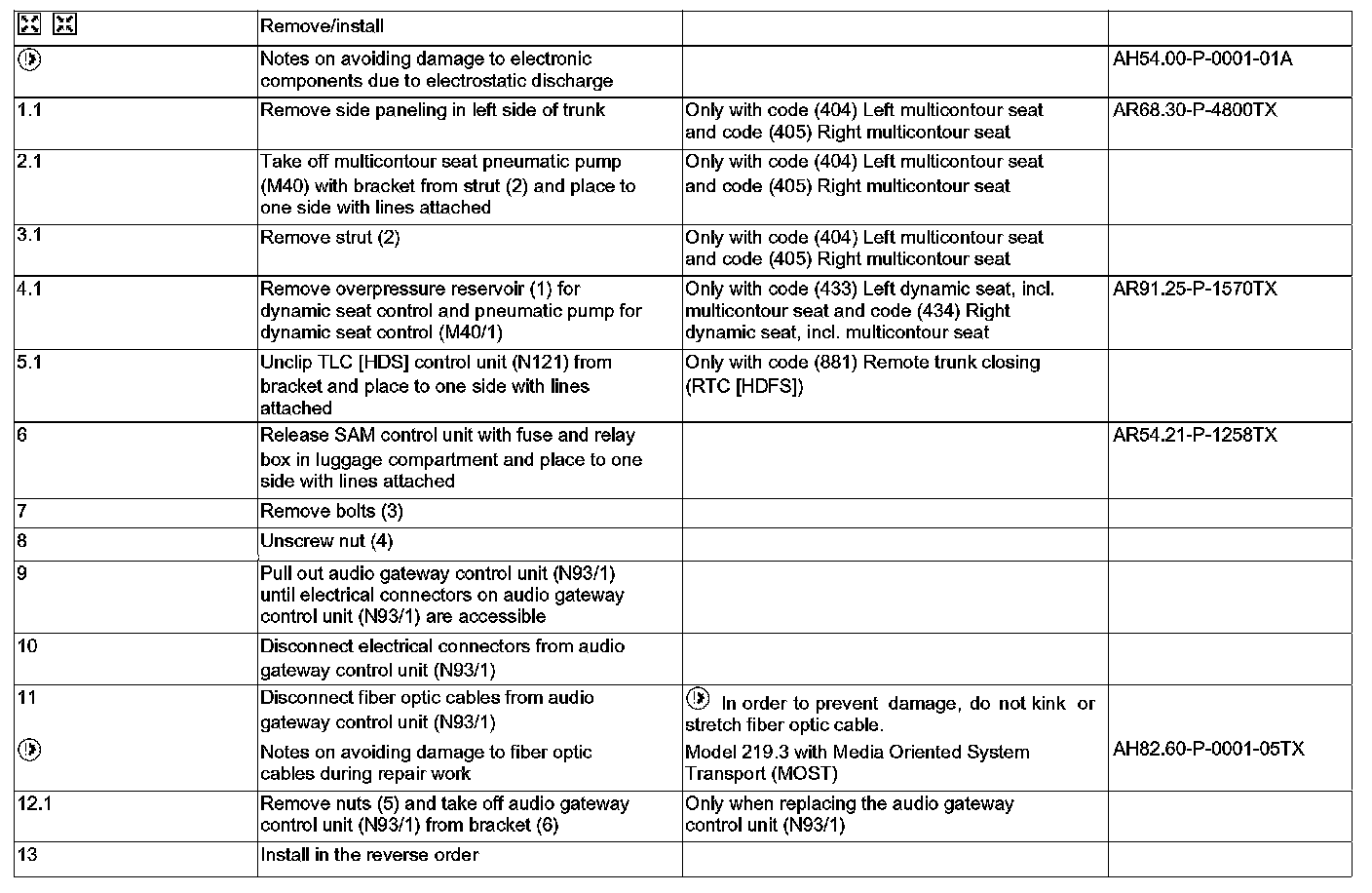

Steps 1.1 - 13:
