BA61.10-P-1000-01C Frame Floor
BA61.10-P-1000-01C Frame Floor
BA61.10-P-1000-01C
Frame
Floor

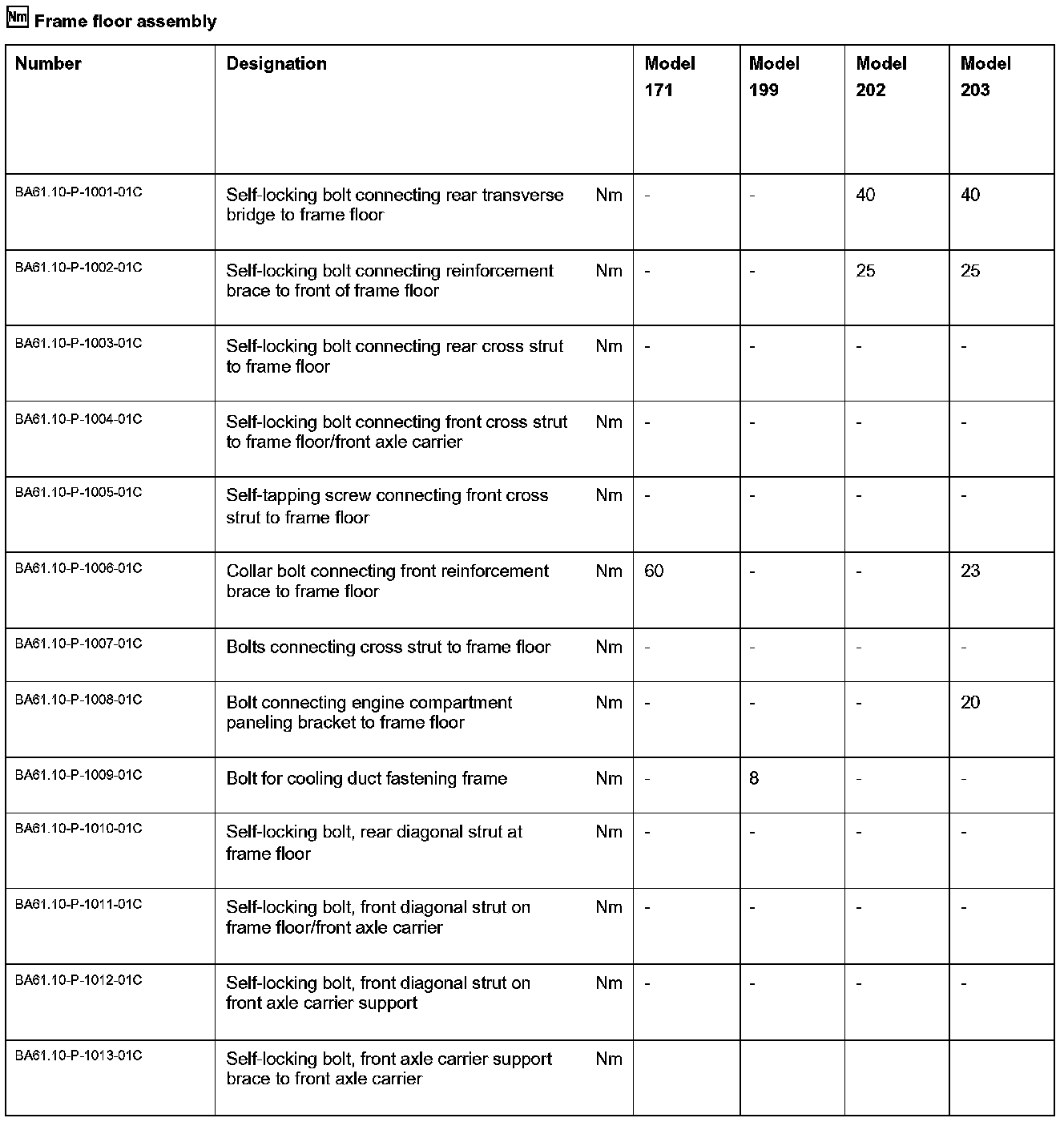

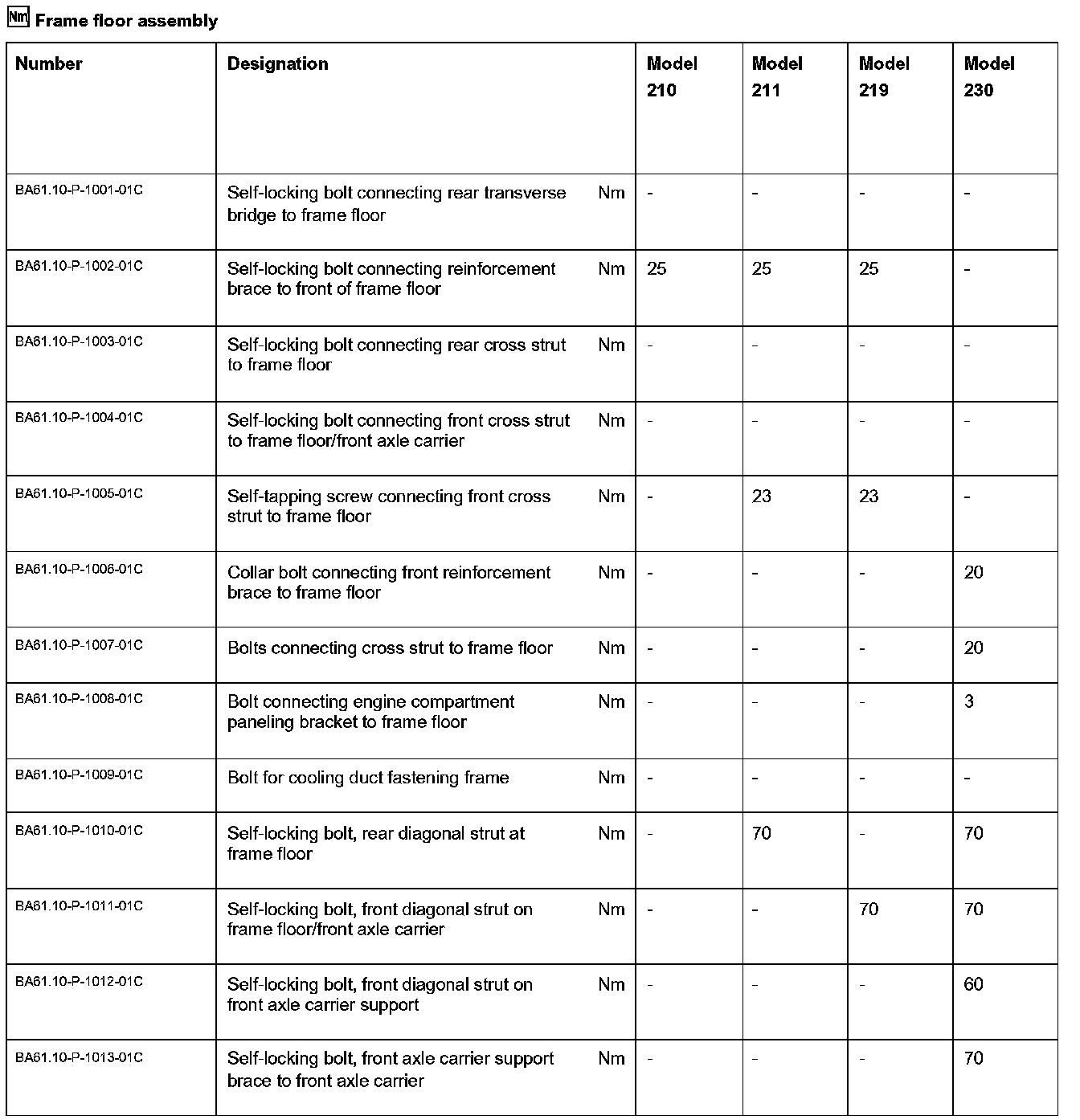

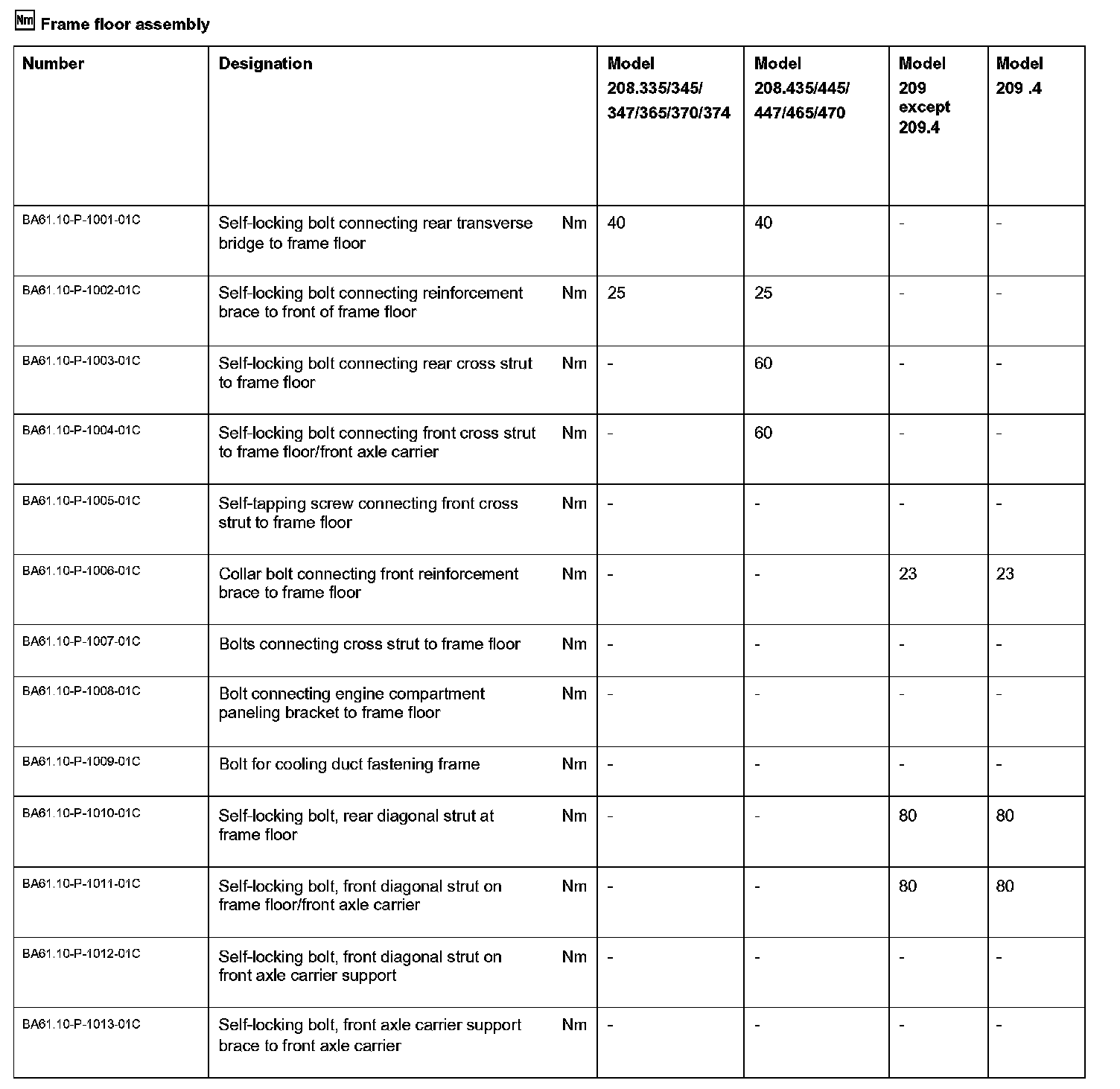

Frame Floor Assembly:
Frame Floor Assembly:
Frame Floor Assembly:
