Blower Motor: Service and Repair
AR83.25-P-1200TX Remove And Install
Blower Motor

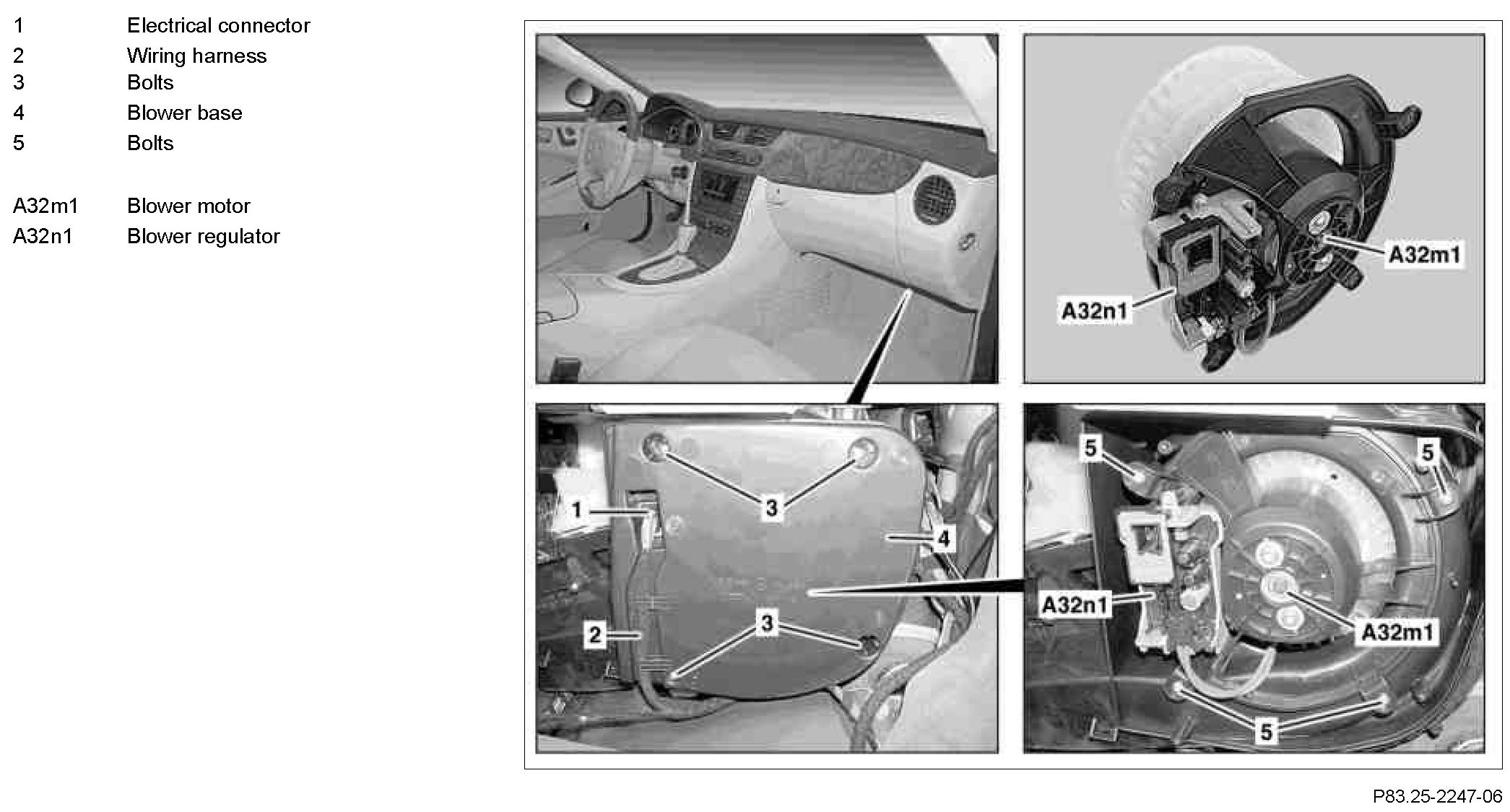

Component Identification:
Modification Notes:

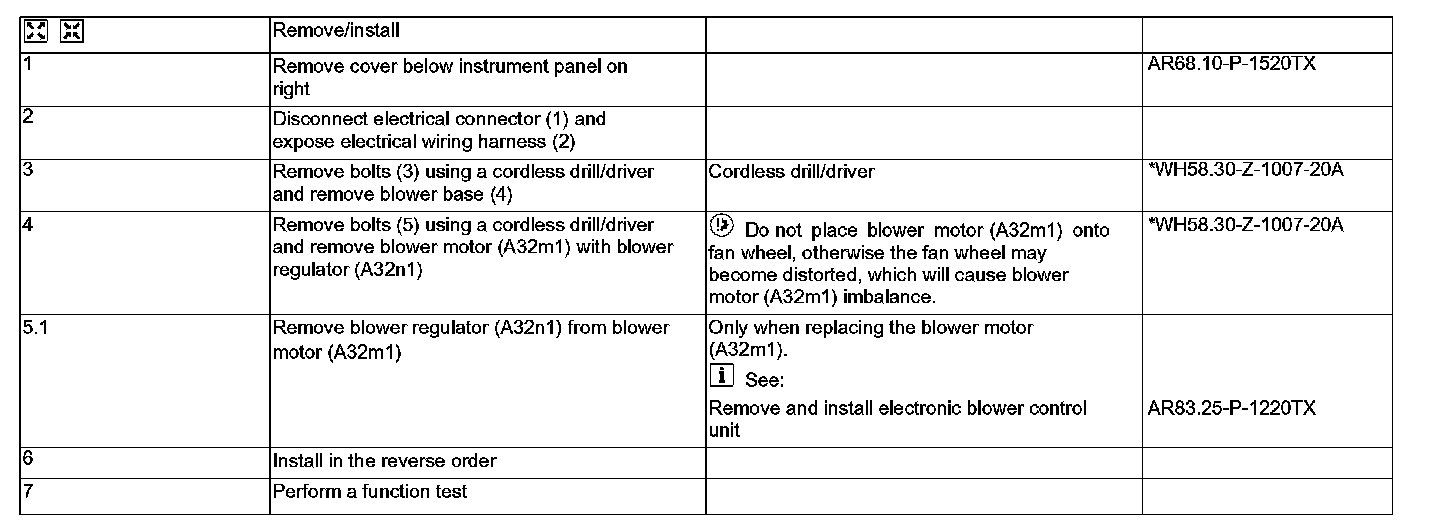

Steps 1 - 7:
Commercially Available Tools:
