GF83.20-P-2003TX Heater Circuit Function

GF83.20-P-2003TX Heater Circuit Function

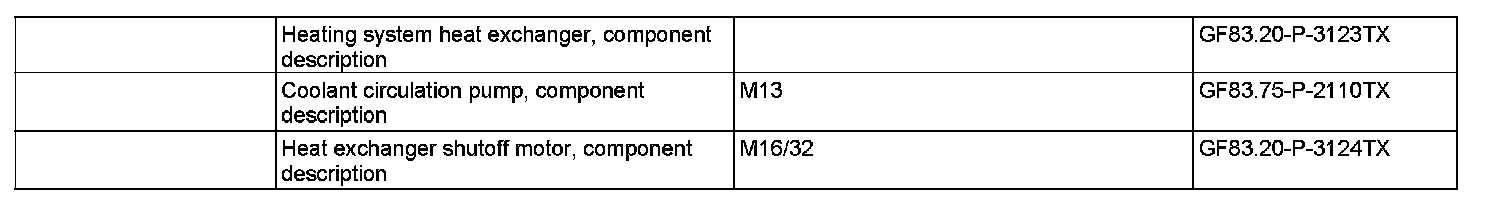

Component Identification:

Function
The coolant pump pumps cold coolant through the engine. The coolant absorbs the engine's heat and becomes heated. The heated coolant is subsequently guided through the heat exchanger, where the heat is emitted into the air in the interio The heater heat exchanger only has a specific volume of coolant flowing through it, sufficient to fulfill the heating requirement.

The AAC [KLA] control and operating unit (N22) (in vehicles without code (581) Comfort automatic air conditioning) or the comfort AAC [KLA] control and operating unit (N22/7) (in vehicles with code (581) Comfort automatic air conditioning) controls the flow of temperature-controlled coolant to the heater heat exchanger via the heat exchanger shutoff motor. The coolant is routed via the coolant return, in which the coolant circulation pump is located, back to the coolant pump.
