Home
>>
Mercedes Benz
>>
2006
>>
CLS 55 AMG (219.376) V8-5.5L SC (113.990)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Heater Control Valve
>>
Locations
Heater Control Valve: Locations
Heat Exchanger Shutoff Motor

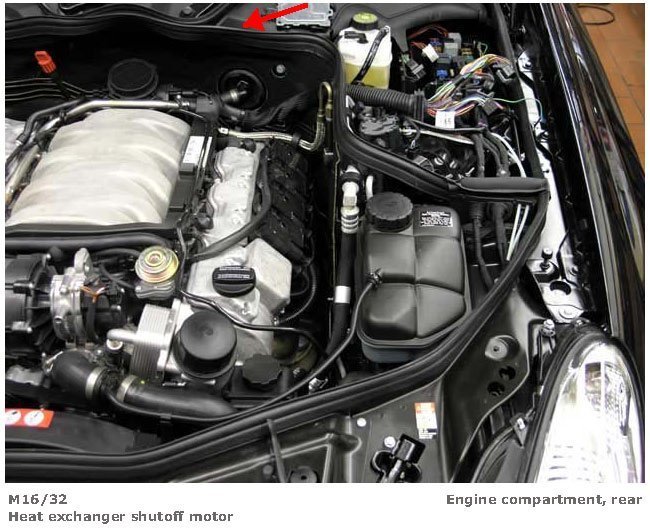

Heat Exchanger Shutoff Motor (View 1):

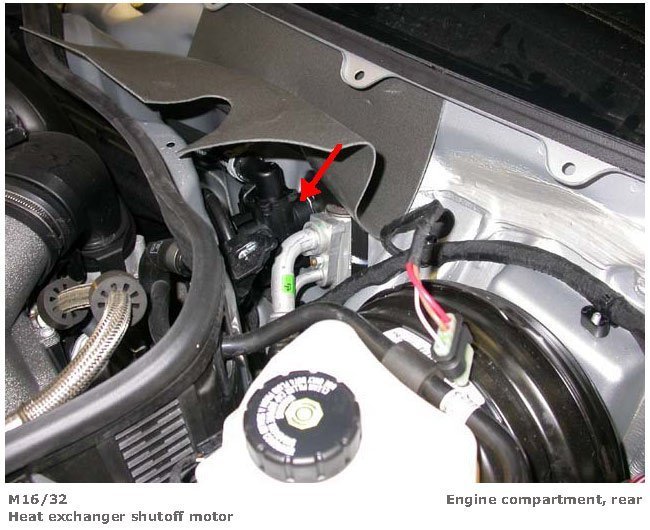

Heat Exchanger Shutoff Motor (View 2):
