Receiver Dryer: Service and Repair
AR83.30-P-6520TX Remove/Install Fluid Reservoir

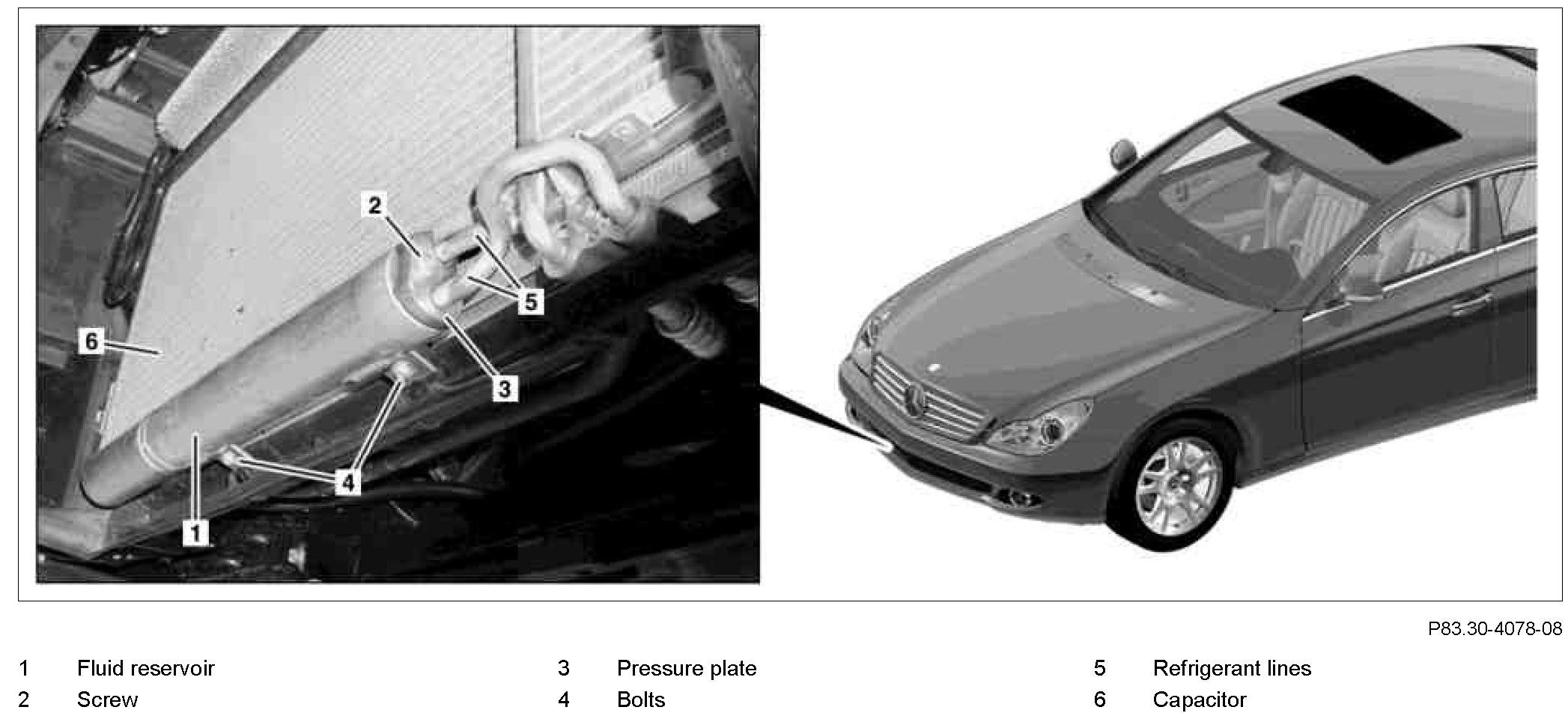

Component Identification:

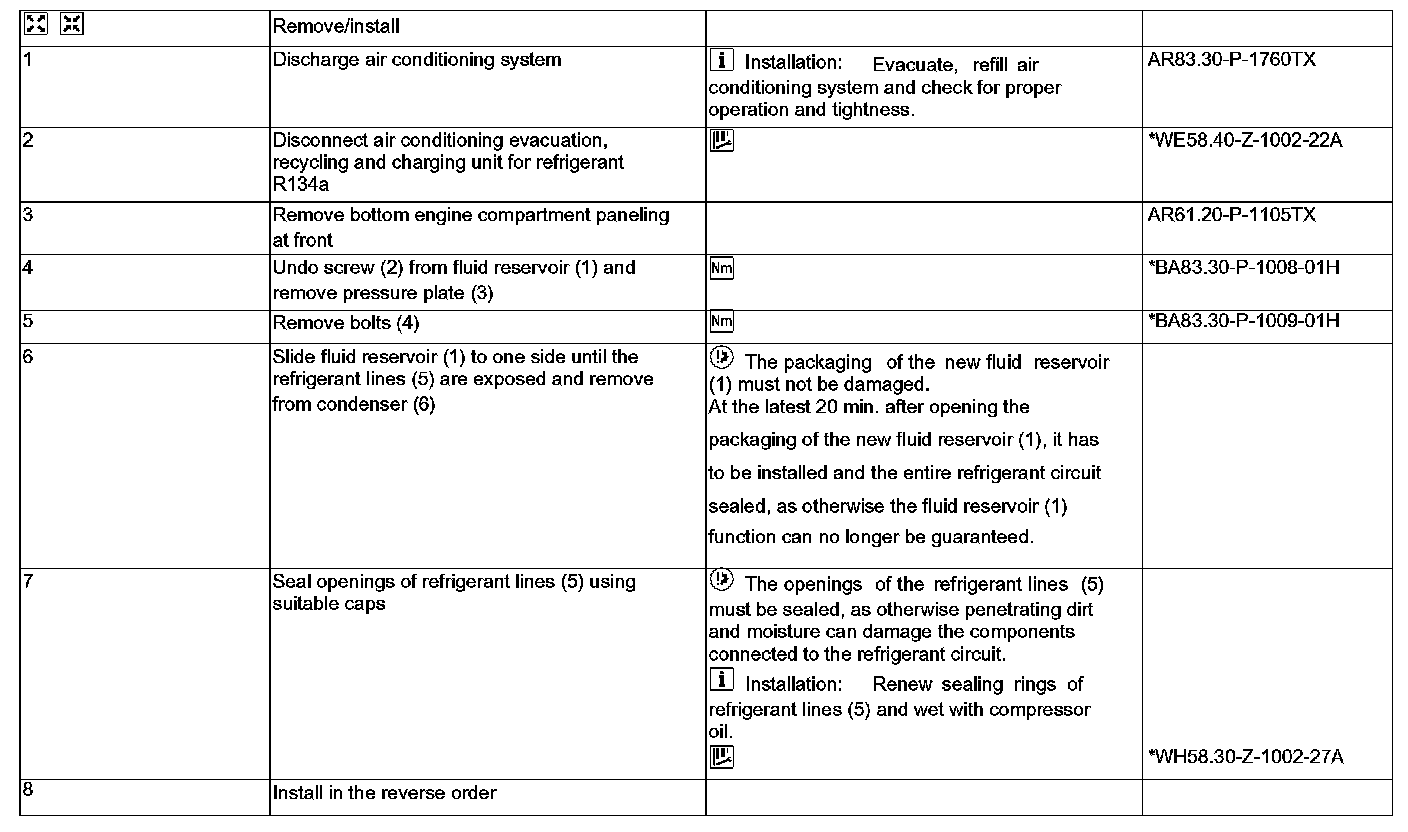

Steps 1 - 8:

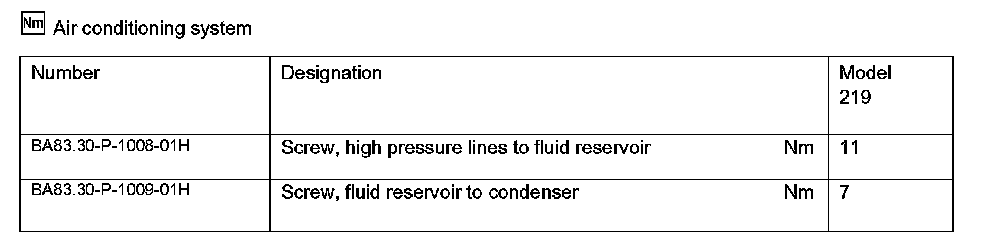

Air Conditioning System:

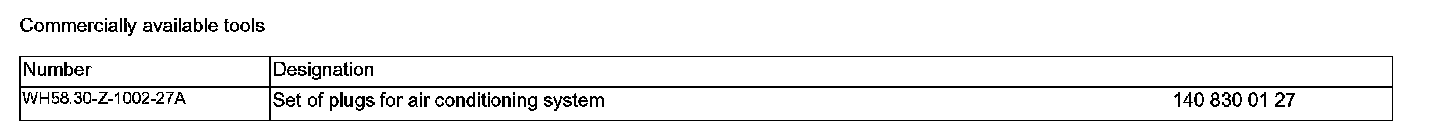

Commercially Available Tools:
Workshop Equipment:
