GF54.50-P-2004TX Travel Time, Function

GF54.50-P-2004TX Travel Time, Function

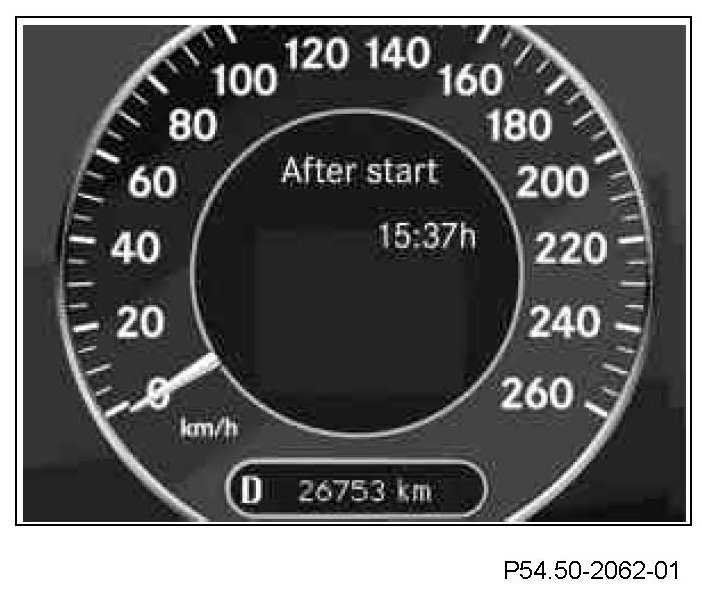

Travel time "Since start" (short-distance memory), function
Time elapsed since start

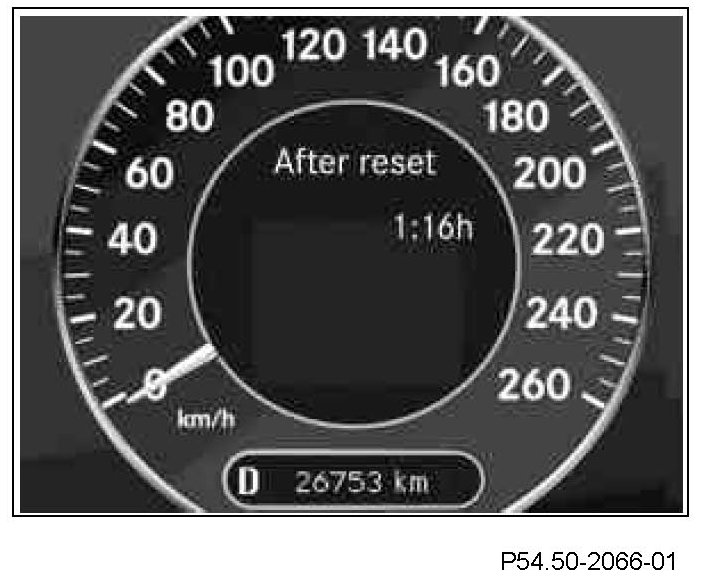

Travel time "Since reset" (long-distance memory), function
Time elapsed since the last reset

The display screen " Since start" or " since reset" for the travel time can be activated via the system selection button (S110s3) and scroll forward/back button (S110s1) of the multifunction steering wheel.

As the time is only counted with "circuit 15 ON", the instrument cluster (A1) needs the information about the condition of circuit 15. This information is placed on the interior CAN by the EIS [EZS] control unit (N73) and is read by the instrument cluster (A1)The time is calculated internally in the instrument cluster (A1).

If the displayed travel time or mileage exceeds the maximum display value (99:59 hours or 40959 miles (65535 km)), the travel time and the mileage are automatically reset in the relevant memory. This preserves the relationship between travel time and mileage.
