GF54.50-P-2009TX Average Speed, Function

GF54.50-P-2009TX Average Speed, Function

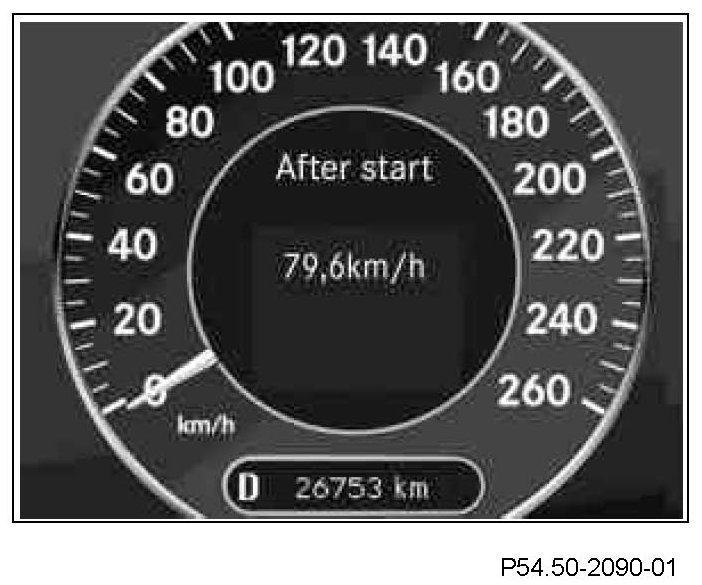

Average speed "Since start" (short-distance memory), function
Average speed since start







Average speed "since reset" (long-distance memory), function
Average speed since the last reset

The display screen "since start" or " since reset" for the average speed can be activated via the system selection button (S110s3) and scroll forward/back button (S110s1) of the multifunction steering wheel.

The following information is required:
^ Travel time: This is calculated internally in the instrument cluster (A1).
^ Mileage: This is determined from the four wheel speeds. The wheel speeds reach the instrument cluster as an engine compartment CAN message from the ESP, SPS [PML] and BAS control unit (N47-5) (A1).

If different values are displayed in the display screen "since start" (short-distance memory) and in the display screen "since reset" (long-distance memory), this is normal as both displays access different data records. The "Since start" display (shortdistance memory) reacts much more sensitively to the current driving situation than the "Since reset" display (long-distance memory).
