Electrical Diagrams

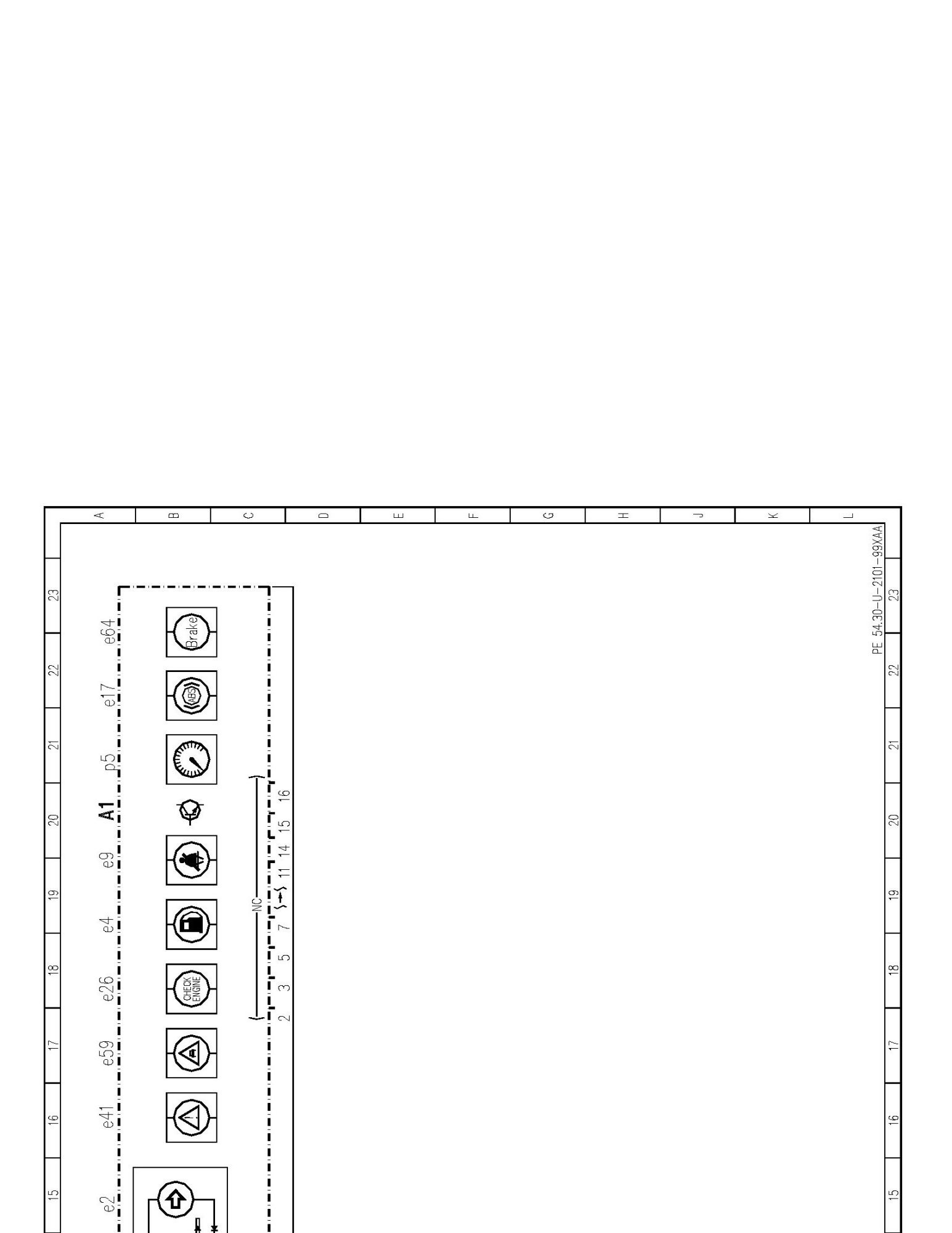

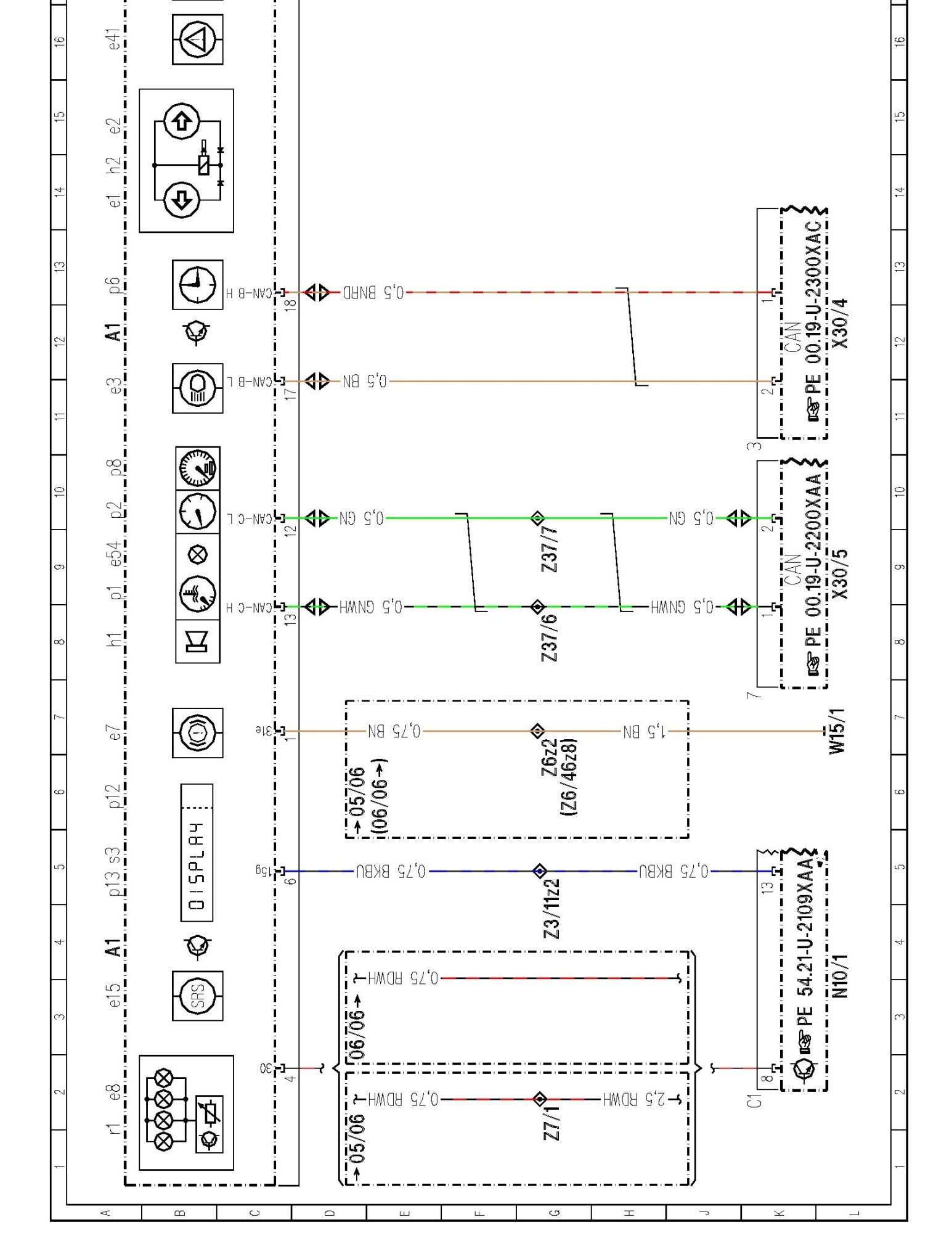

PE54.30-U-2101XAA Instrument Cluster (IC) Control Module
- Control module A1















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
