Function Diagrams

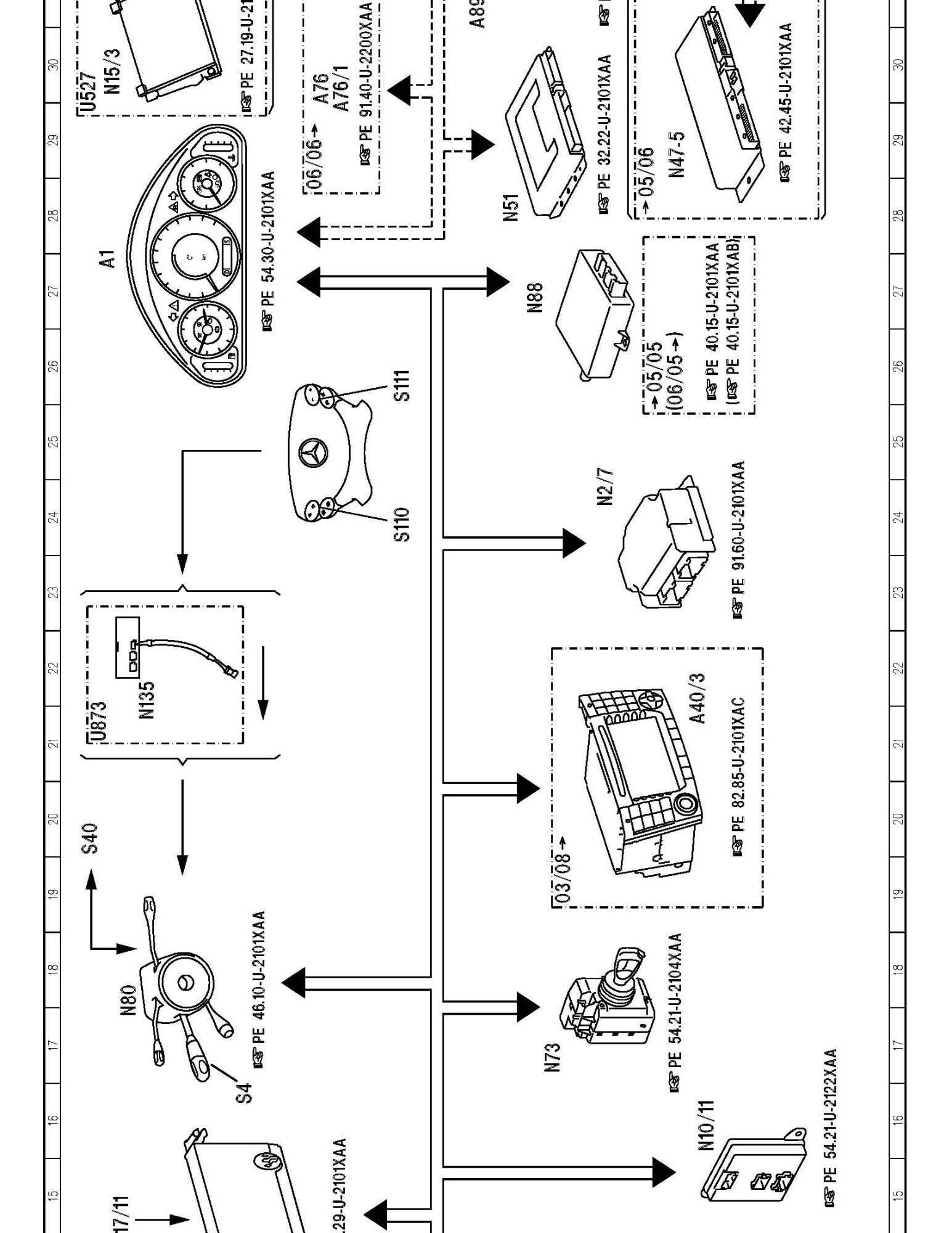

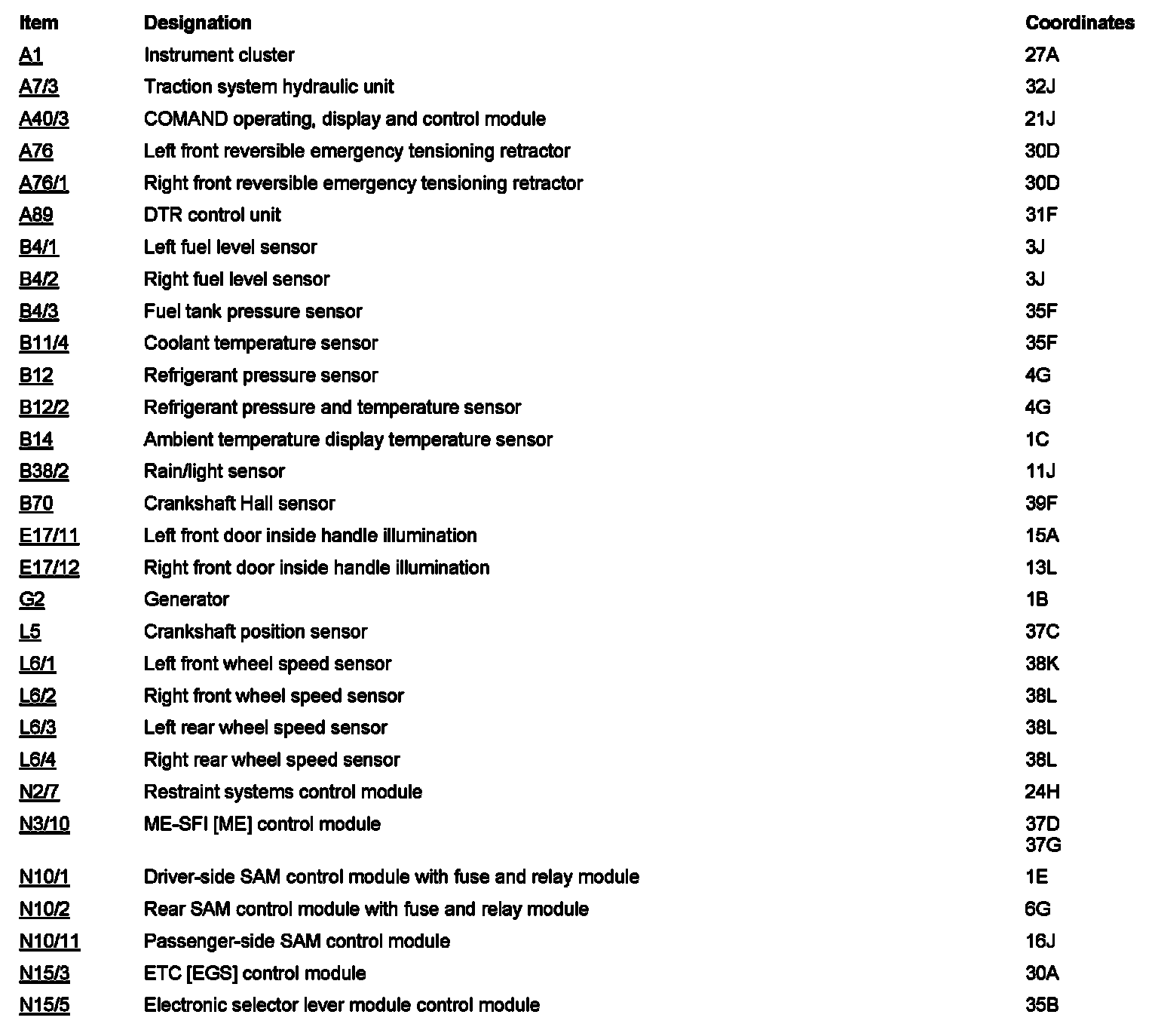

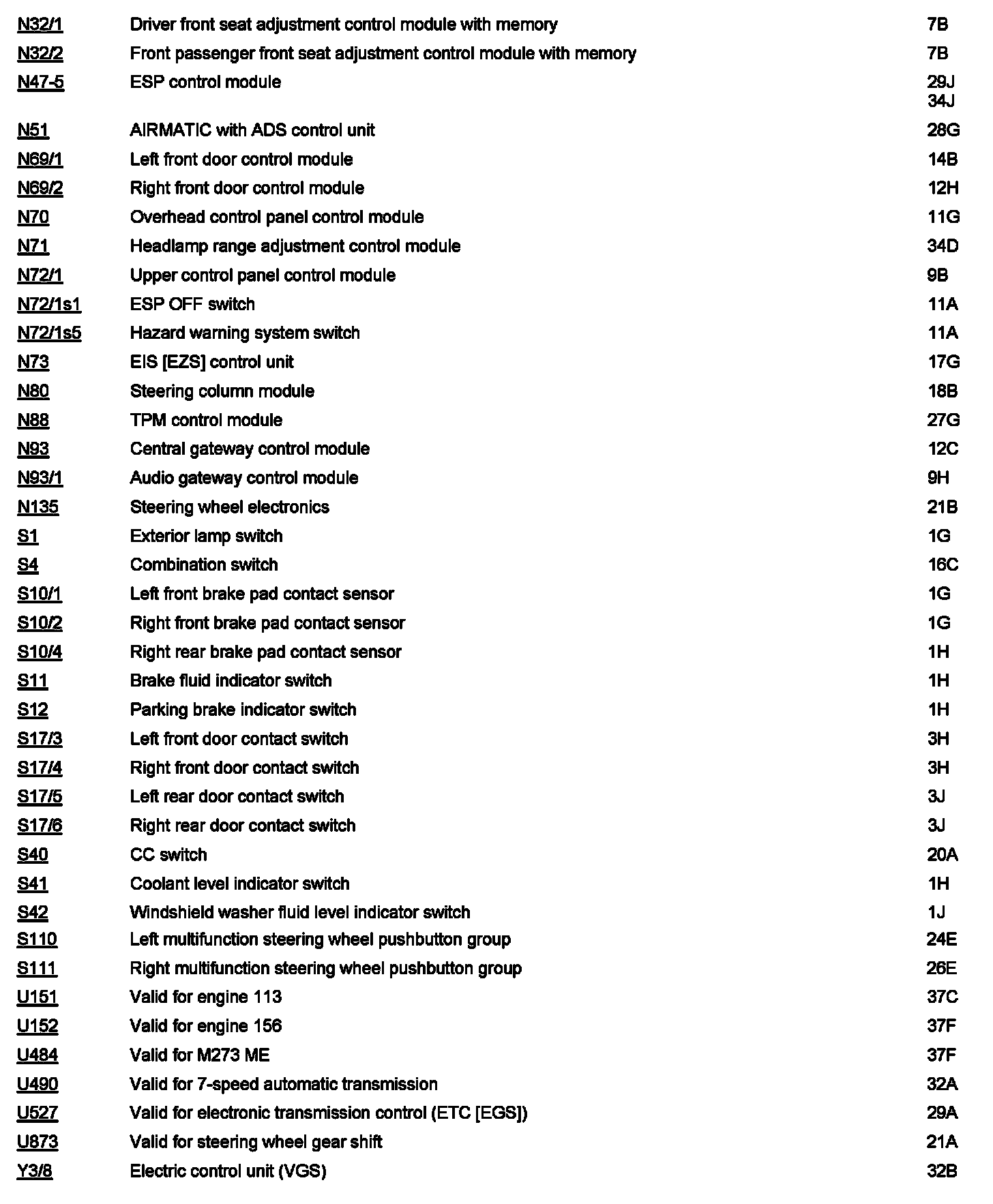

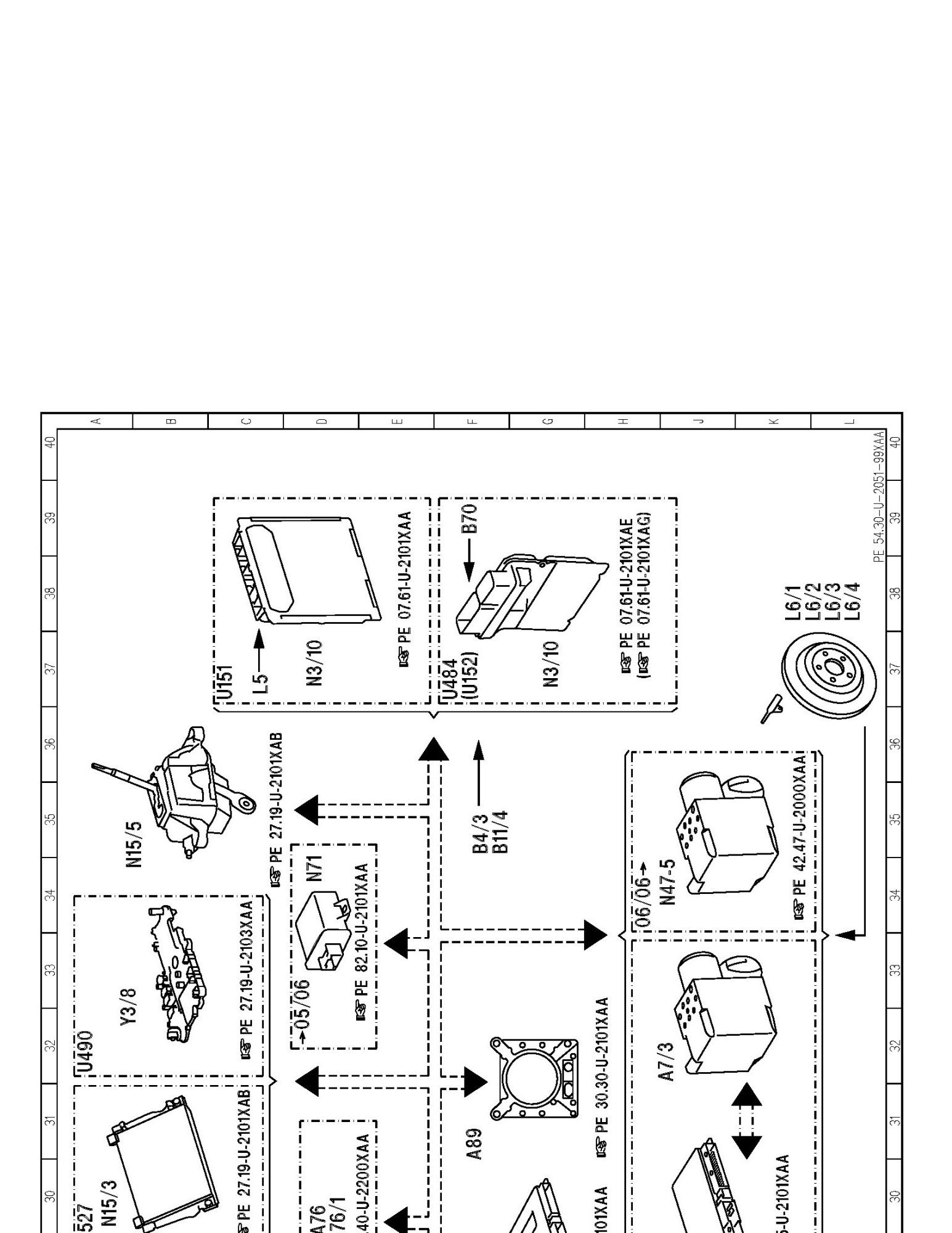

PE54.30-U-2051XAA Function Diagram of Instrument Cluster (IC) Electrical System
























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
