GF07.61-P-0001-01TM Motor Electronics (ME-SFI) Fuel Injection and Ignition System, Arrangement of Components



GF07.61-P-0001-01TM Motor Electronics (ME-SFI) Fuel Injection And Ignition System, Arrangement Of Components

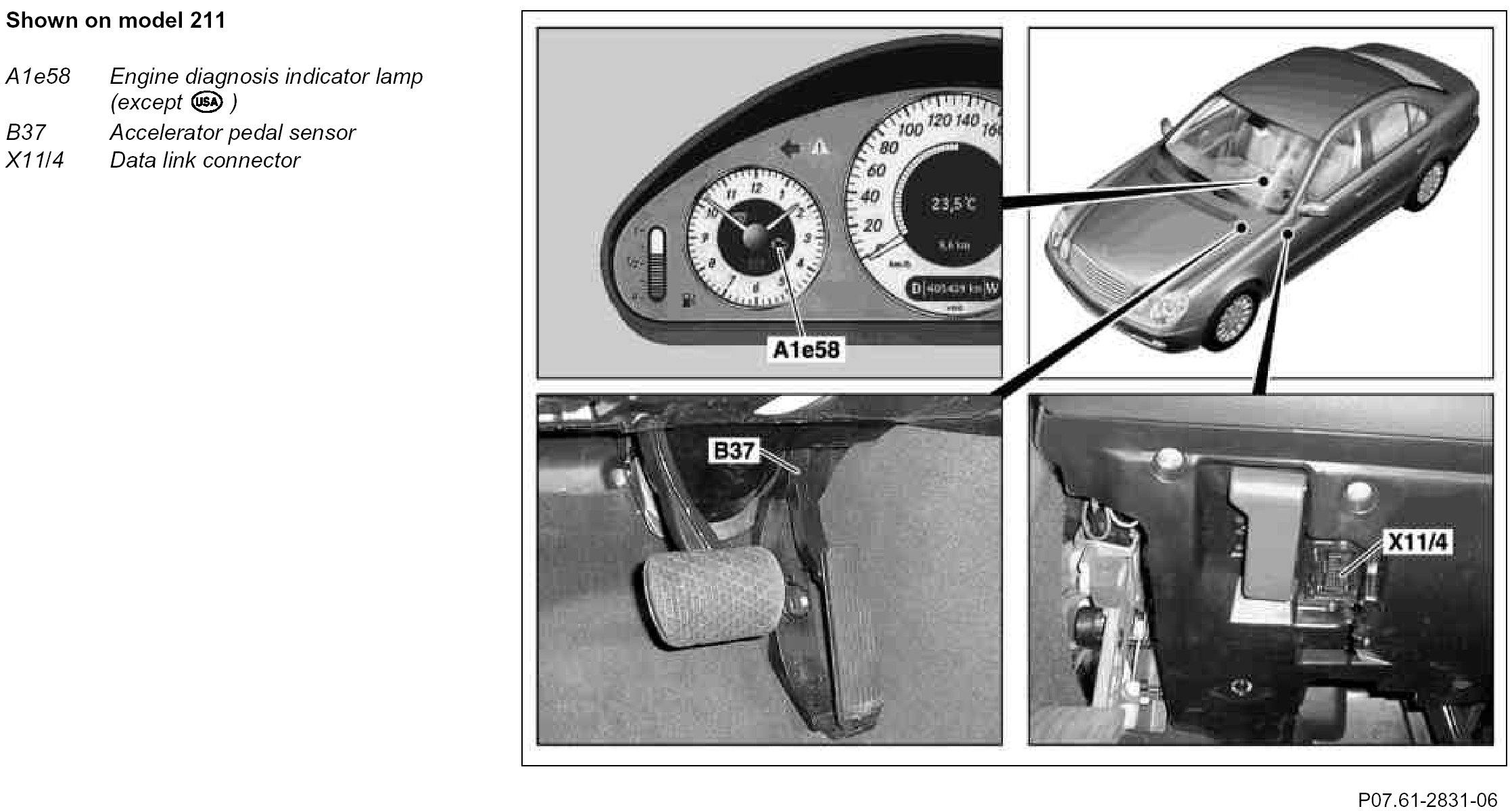

Component Identification:

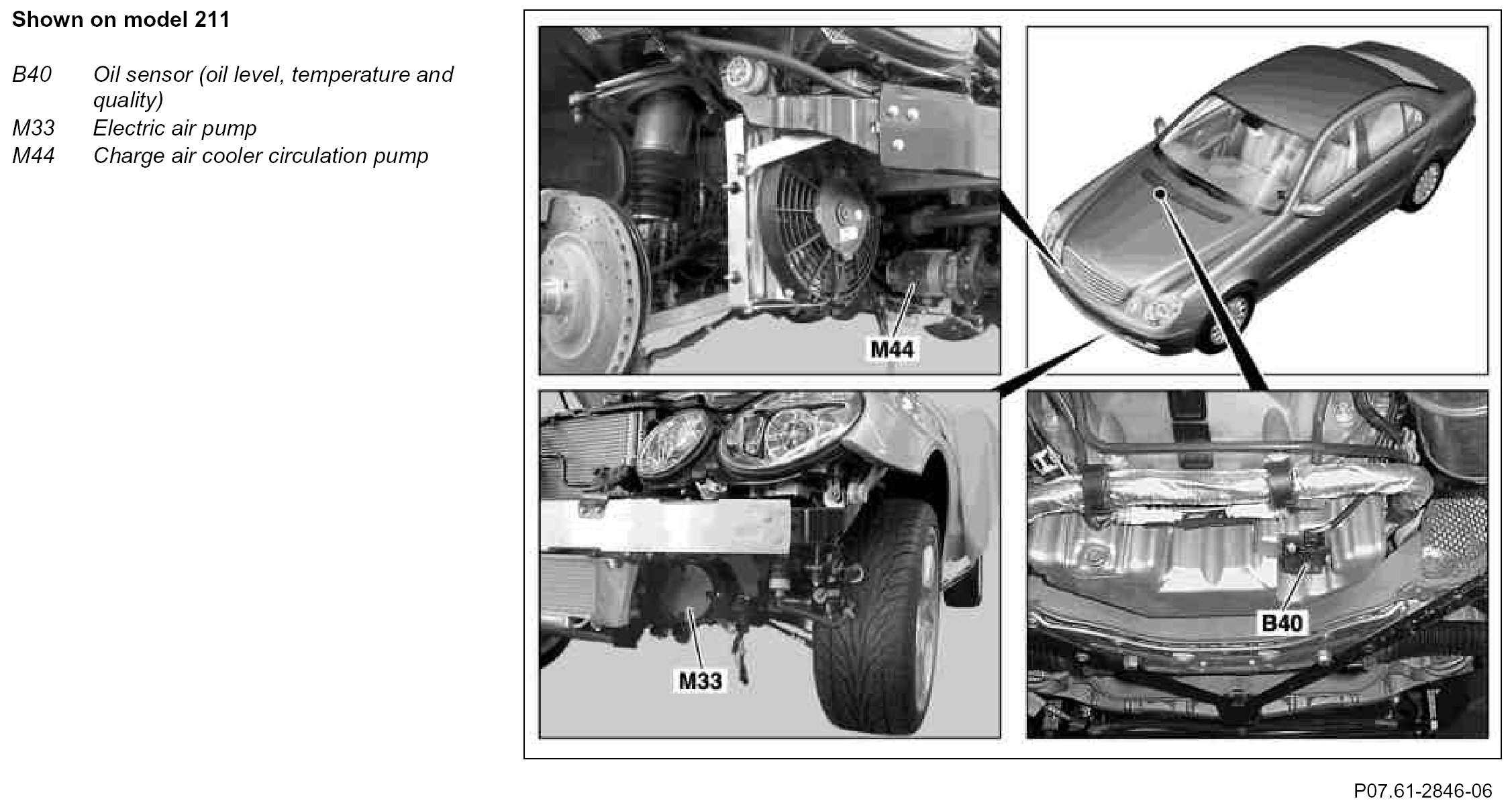

Component Identification:

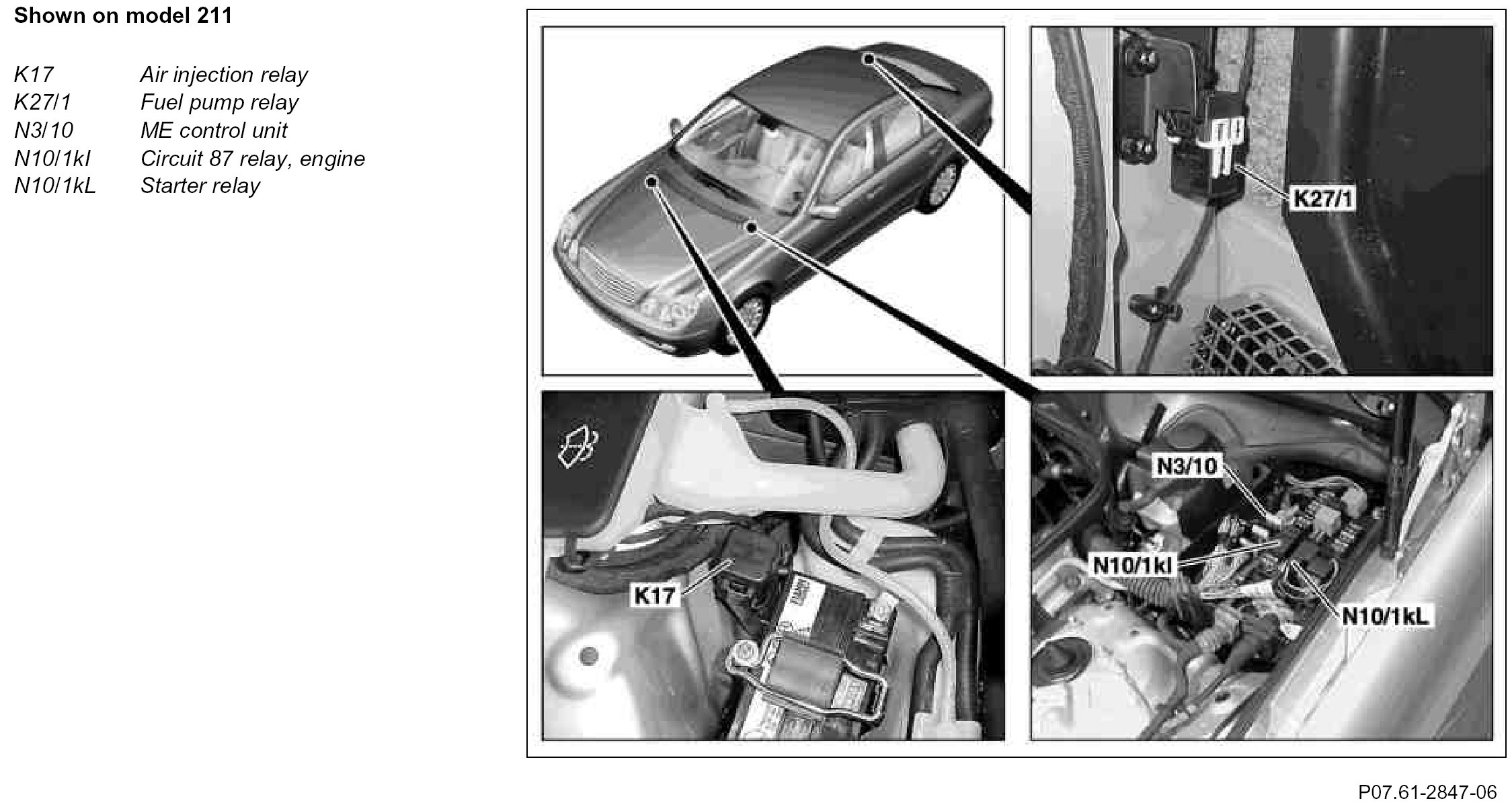

Component Identification:





Component Identification:





Component Identification:
