A. Installation Preparation

1. Read these installation instructions in their entirety before proceeding.

2. Unpack and compare the installation kit contents against the Parts Information list - Section 0.

3. Place the operating guides and customer accessories in the glove box or appropriate storage or stowage compartment.

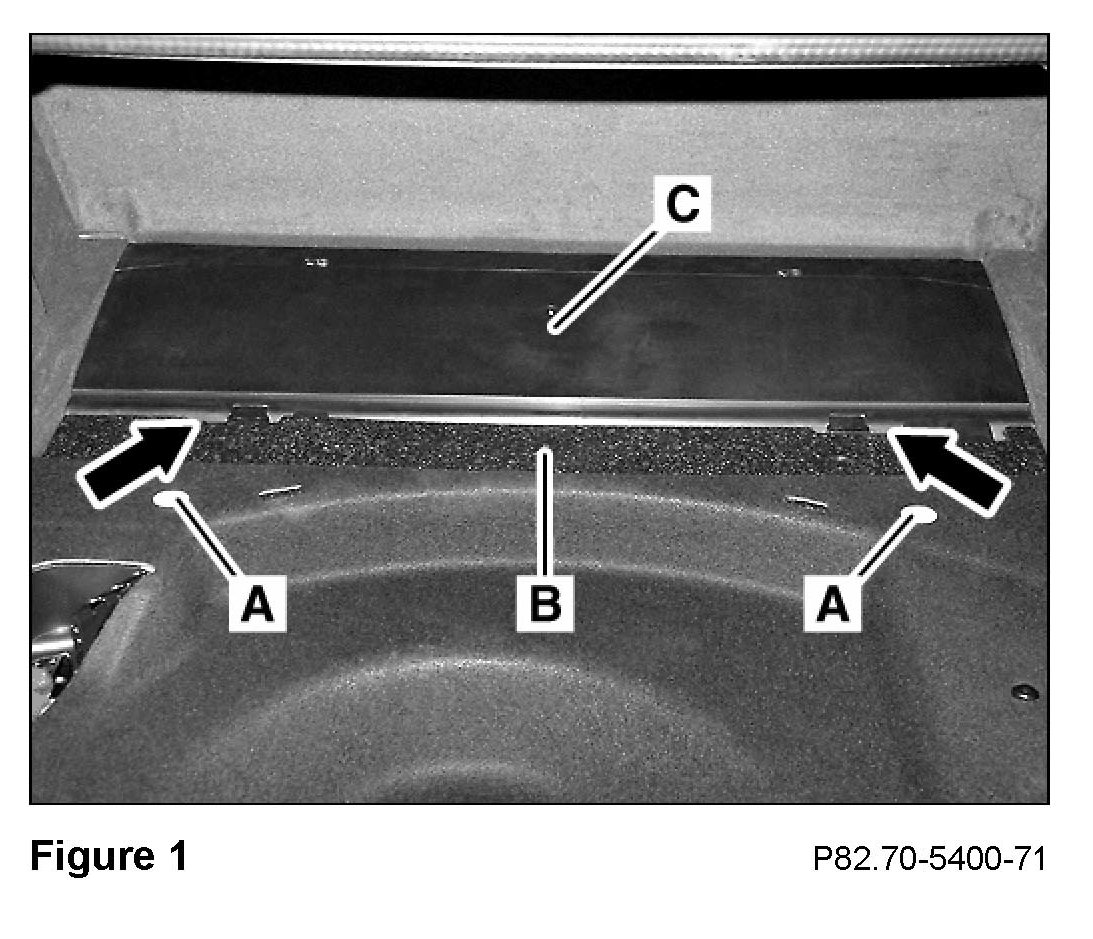

4. Remove the rear, center section paneling (A, Figure 1), vapor barrier (B, Figure 1), and carrier plate cover (C, Figure 1) in the trunk.

^ Refer to WIS document AR68.30-P-4620TX, "Remove/install spare wheel paneling"

5. Remove the right side paneling in the trunk.

^ Refer to WIS document AR68.30-P-4800TX, "Remove/install side paneling in trunk"
