D. Installing and Connecting the Antenna Switch

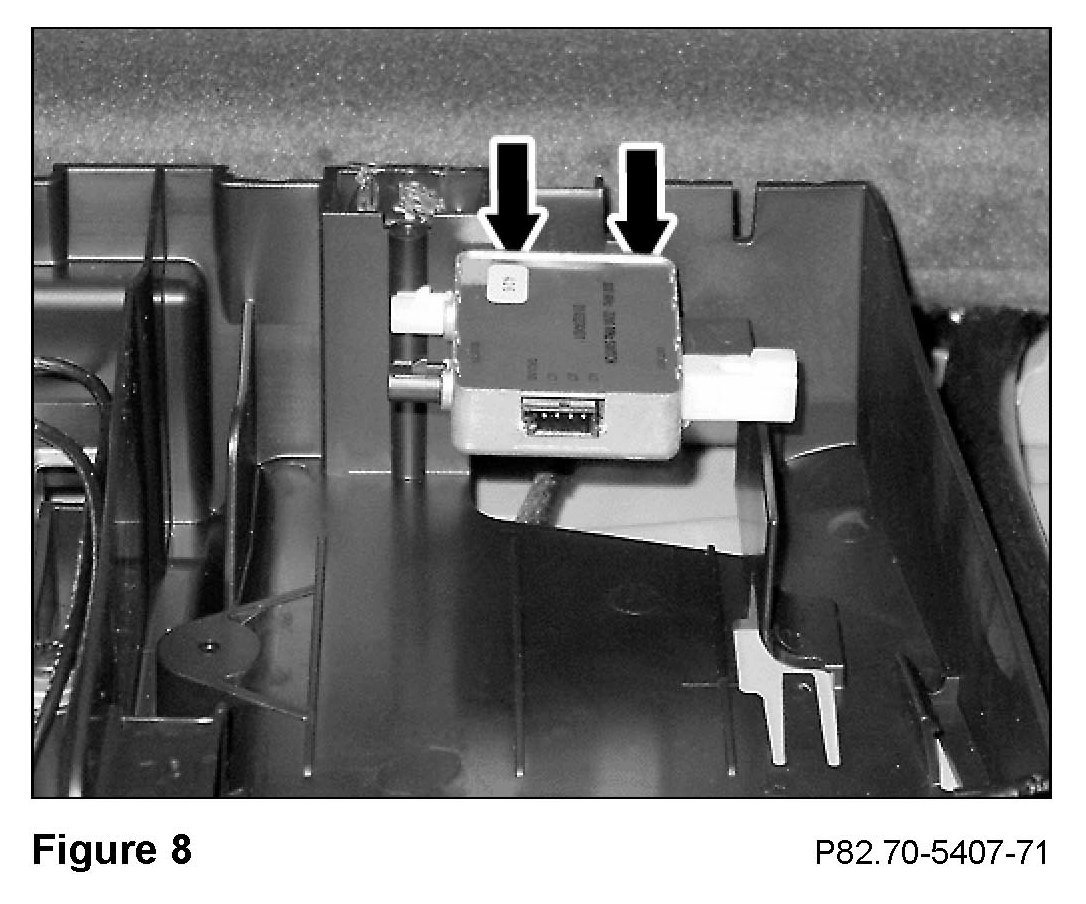

1. Mount the antenna switch (Figure 8) to the embedded bracket in the right side compartment of the carrier plate with two M4 x6 Phillips head machine screws.

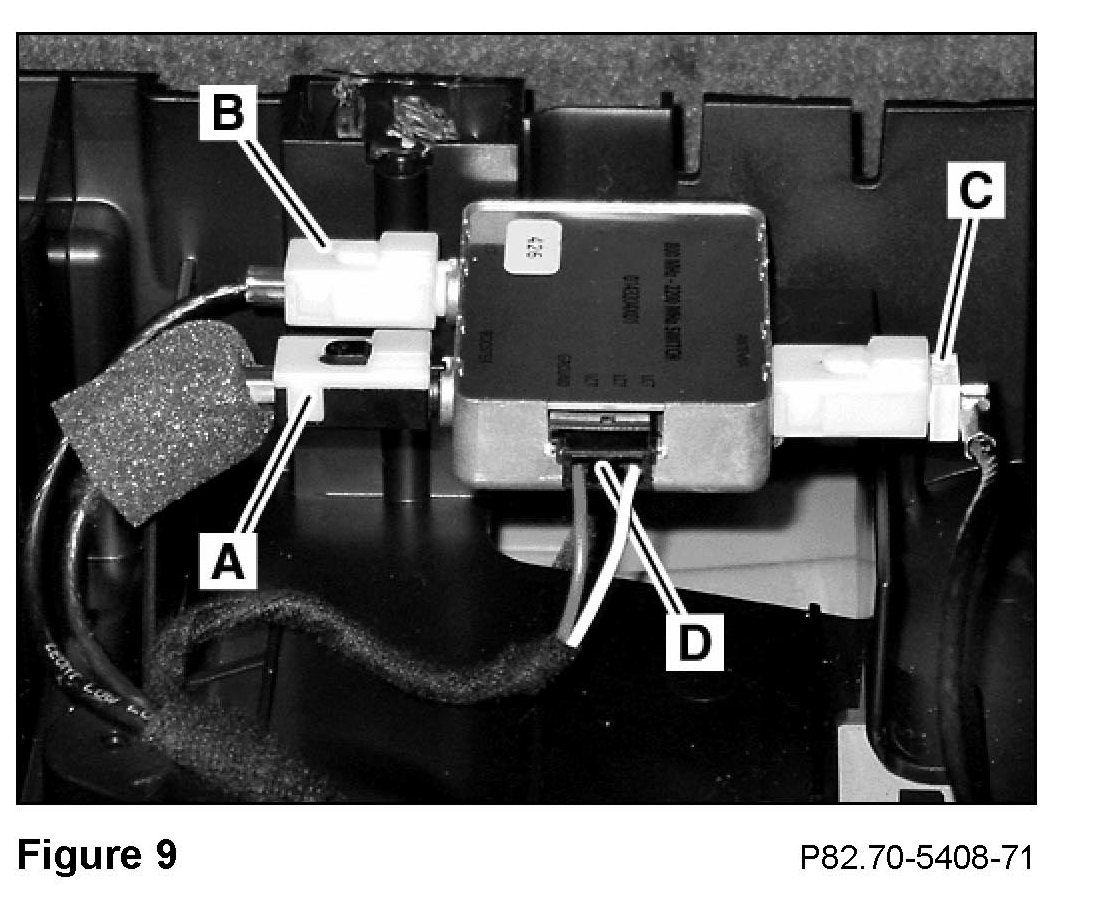

2. Connect the telephone FAKRA female, black connector to the antenna switch jack labeled "BOOSTER" (A, Figure 9).

3. Connect the Tele Aid FAKRA female, white connector to the antenna switch jack labeled "LCT" (B, Figure 9).

4. Connect the main antenna FAKRA male, white connector to the antenna switch jack labeled "ANTENNA" (C, Figure 9).

5. Connect the 2-pin power supply connector to the antenna switch (D, Figure 9).
