J. Installing the Contact Plate and Cradle

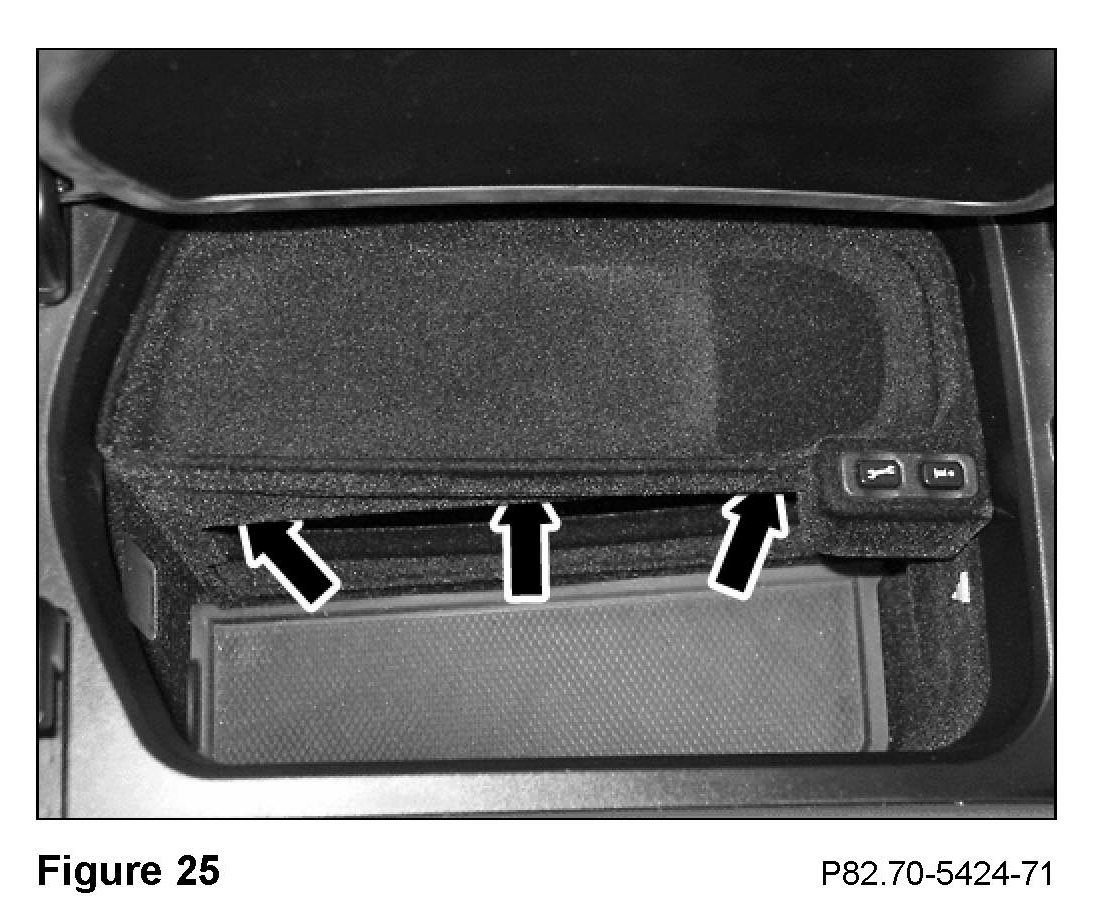

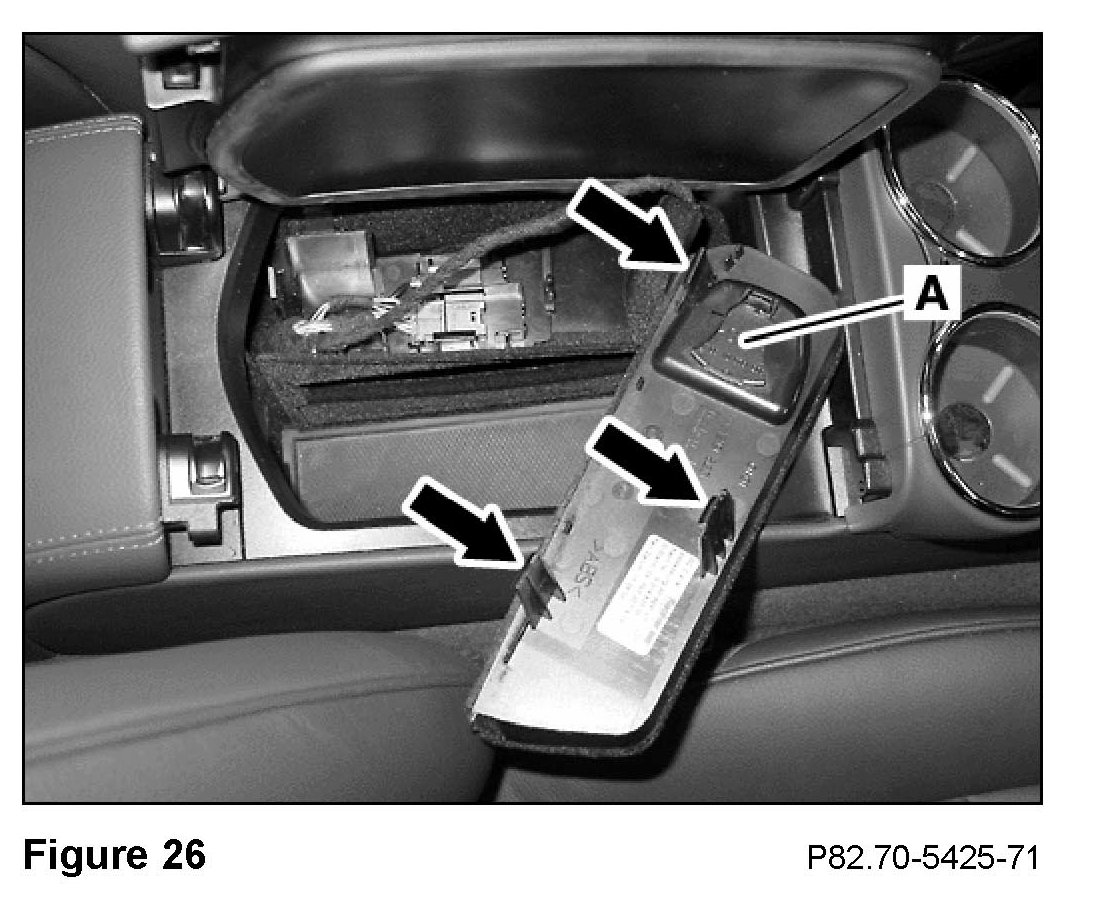

1. Open the center console compartment and remove the mounting tray for the contact plate by reaching underneath (Figure 25) and releasing the three clips (Arrows, Figure 26) on the underside.

Note:
Push the clips on the mounting tray underside to the left and then up to release them.

2. Remove the knockout (A, Figure 26) from the mounting tray for the contact plate by pressing it out from underneath.

NOTICE!
Excessive force will crack or break plastic.

Applying excessive force while removing the knockout can crack or break the plastic mounting tray.

Do not apply excessive force when removing the knockout from the mounting tray for the contact plate.

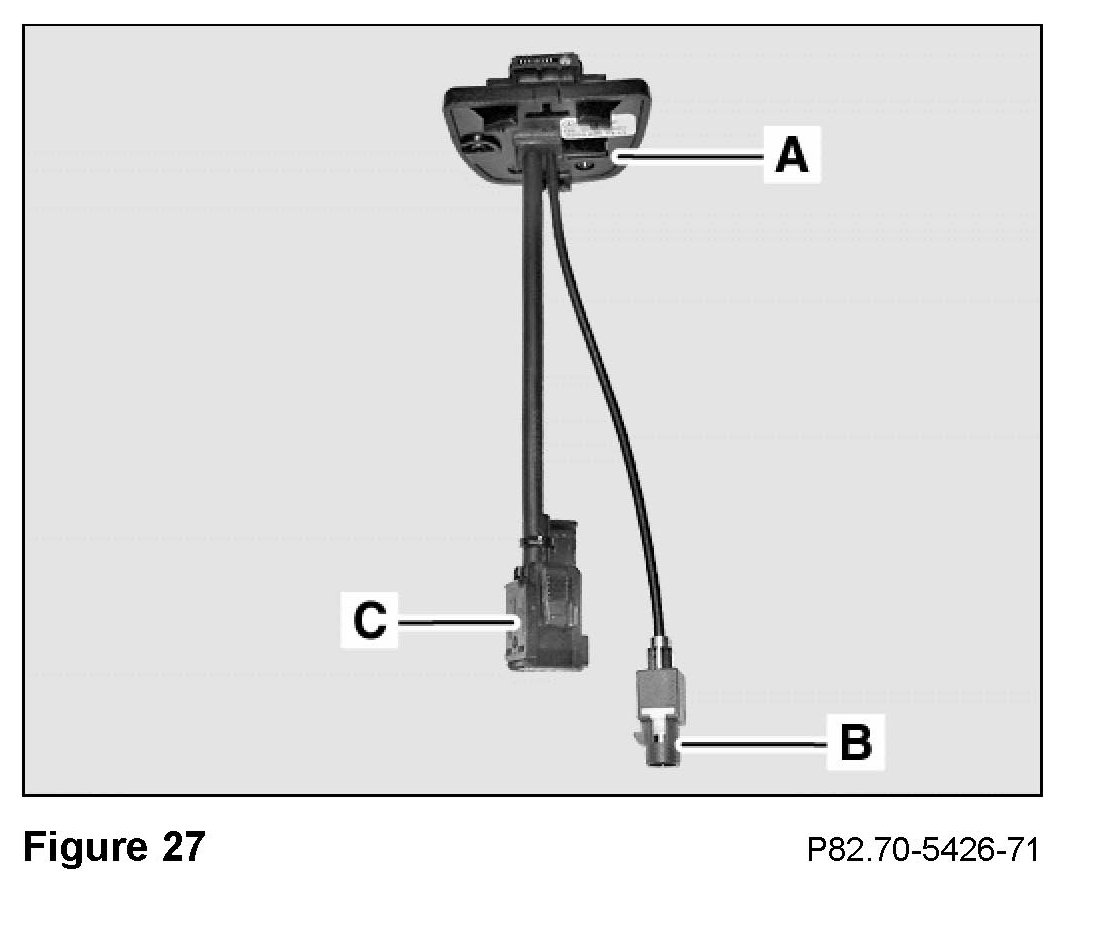

3. Find the kit-included contact plate (A, Figure 27) and identify the FAKRA antenna male connector (B, Figure 27) and the power supply male connector (C, Figure 27).





4. Feed the power supply cable and FAKRA cable of the contact plate through the knockout hole from the top side of the mounting tray (Figure 28).





5. Connect the FAKRA antenna male connector of the contact plate to the FAKRA female connector ofthe console harness (A, Figure 29).

6. Connect the power supply male connector of the contact plate to the power supply female connector ofthe console harness (B, Figure 29).

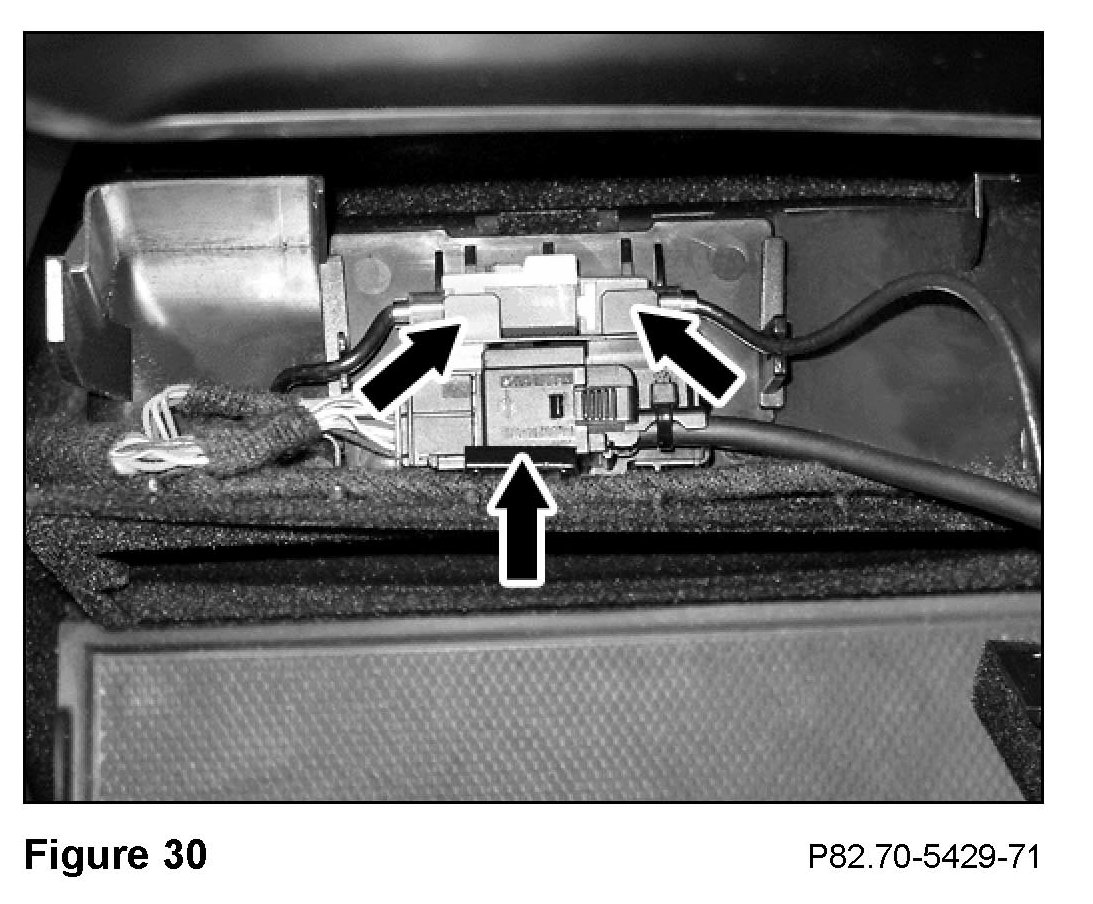

7. Secure the coupled FAKRA antenna connectors and power supply connectors in the clips (Figure 30) on the exposed floor of the center console compartment.





8. Reinstall the mounting tray with contact plate (Figure 31) by inserting the three clips on the mounting tray underside into the slots in the compartment mounting base until they snap into place.

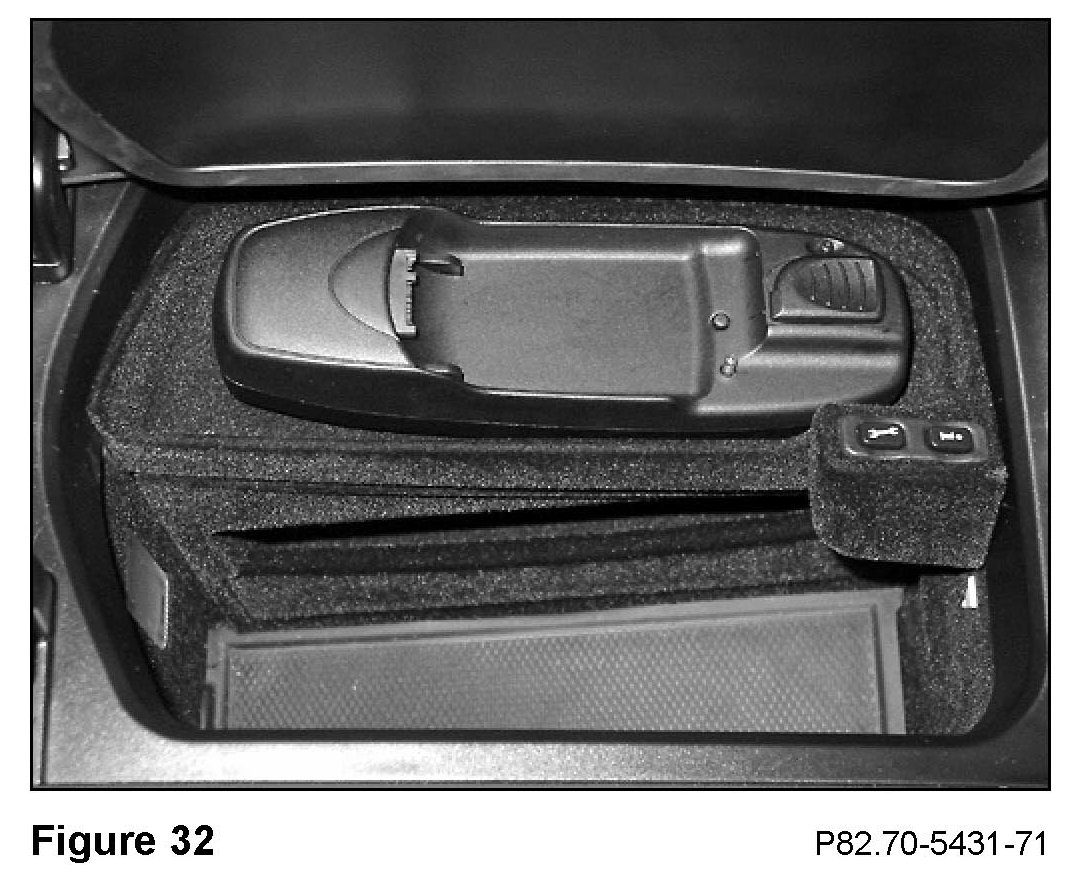

9. Attach the cradle-according to telephone type-to the contact plate by placing it atop and slightly behind the contact plate and then sliding it forward until an audible click sounds (Figure 32).





10. Insert the telephone into the cradle (Figure 33).
