Restraints - Noise From The Front Seat Belts

Date: November 7, 2006
Order No.: P-B-91.40/127
Supersedes:
Group: 91

SUBJECT:
Model 219.372/375/376/377

Noise from Front Seat Belt

If you receive customer reports in the above model vehicles of the front seat belts making noise while driving, to resolve a webbing grabber can be installed. The webbing grabber will prevent the belt latch from rattling against the B-pillar (Figure 1). Install webbing grabber as shown in Figure 2.

NOTE:
This repair is non-time claimable under Group 91 with a maximum time allowed for both doors of 0.3 hrs. with a separate time punch.





Belt contacting B-pillar





Webbing grabber installed

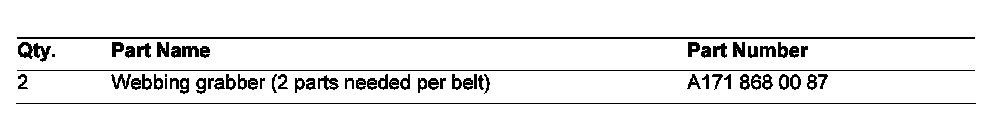

Parts Information
