Windshield Washer Pump: Service and Repair
AR82.35-P-6002TX Remove/Install Windshield Washer System Pump

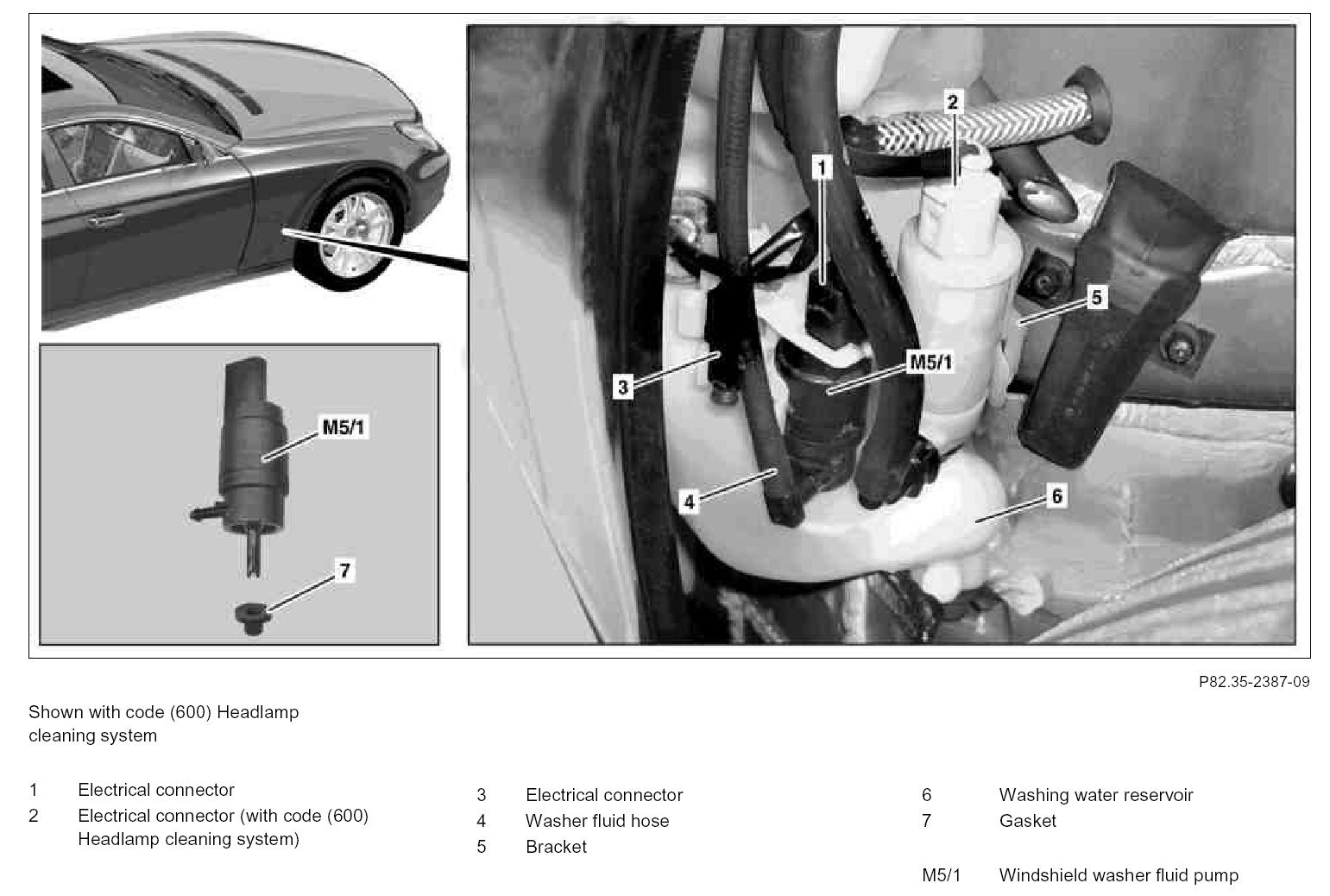

Component Identification:

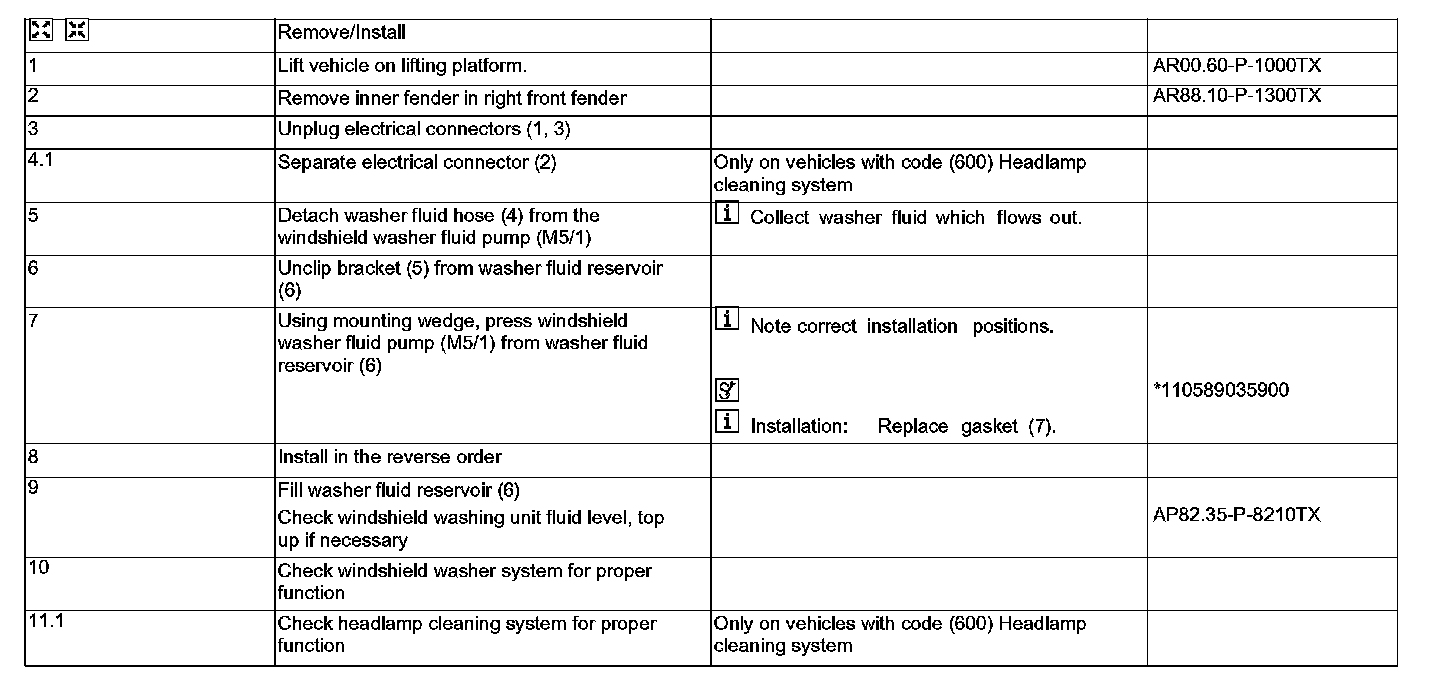

Steps 1 - 11.1:

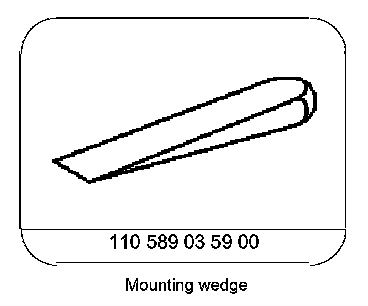

Special Tools:
