Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
CLS 55 AMG (219.376) V8-5.5L SC (113.990)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Arm
>>
Service and Repair
Wiper Arm: Service and Repair
AR82.30-P-6100TX Remove And Install
Wiper Arm

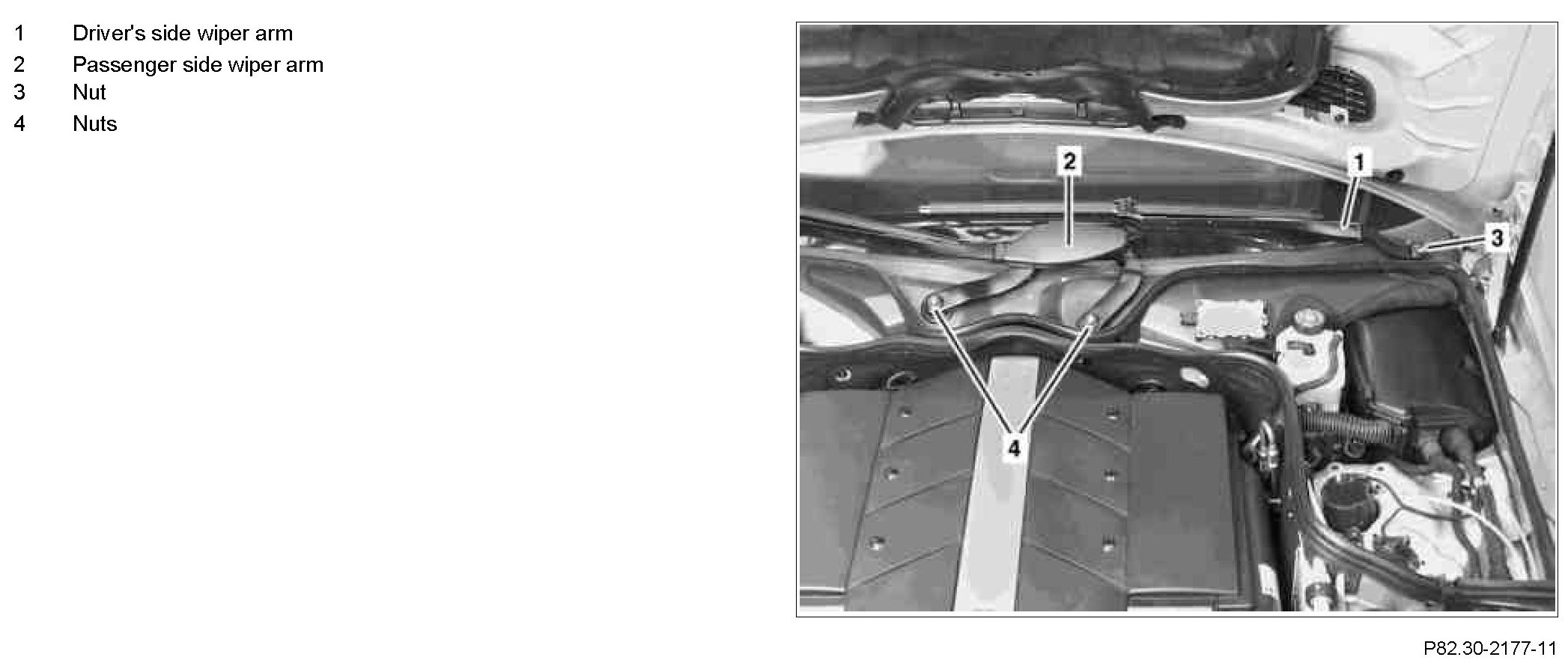

Component Identification:

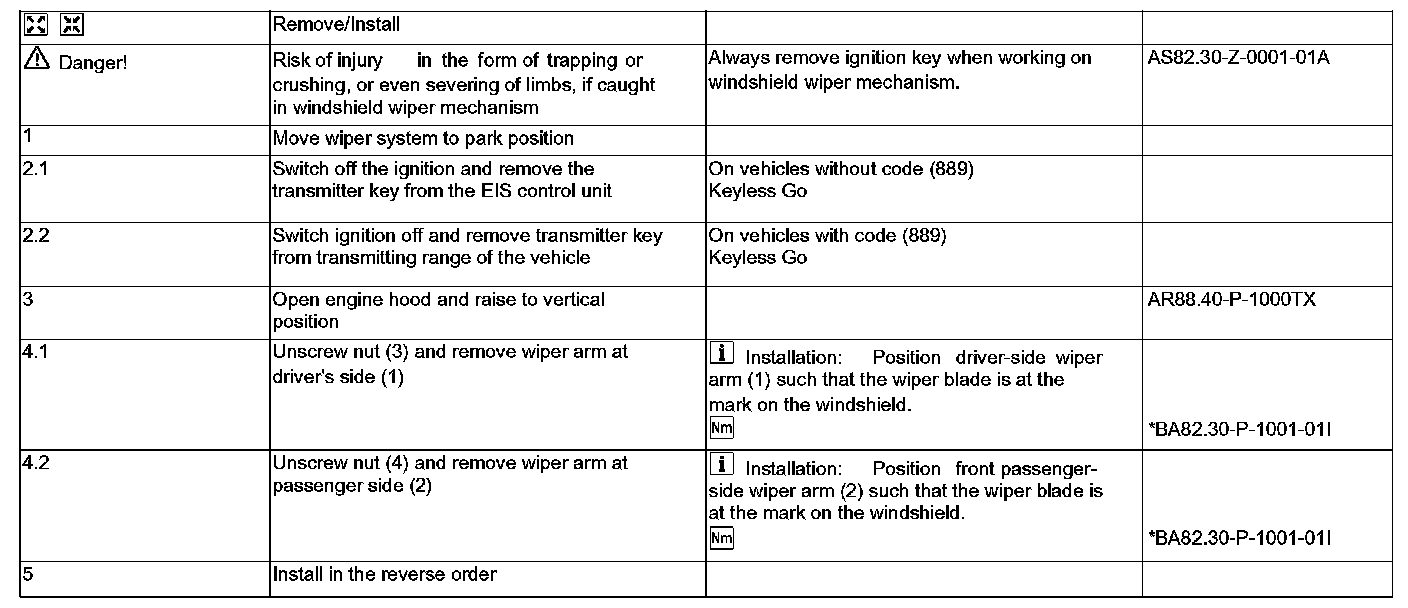

Steps 1 - 5:

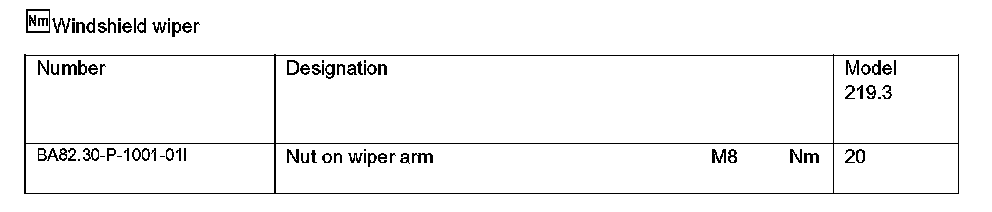

Windshield Wiper:
