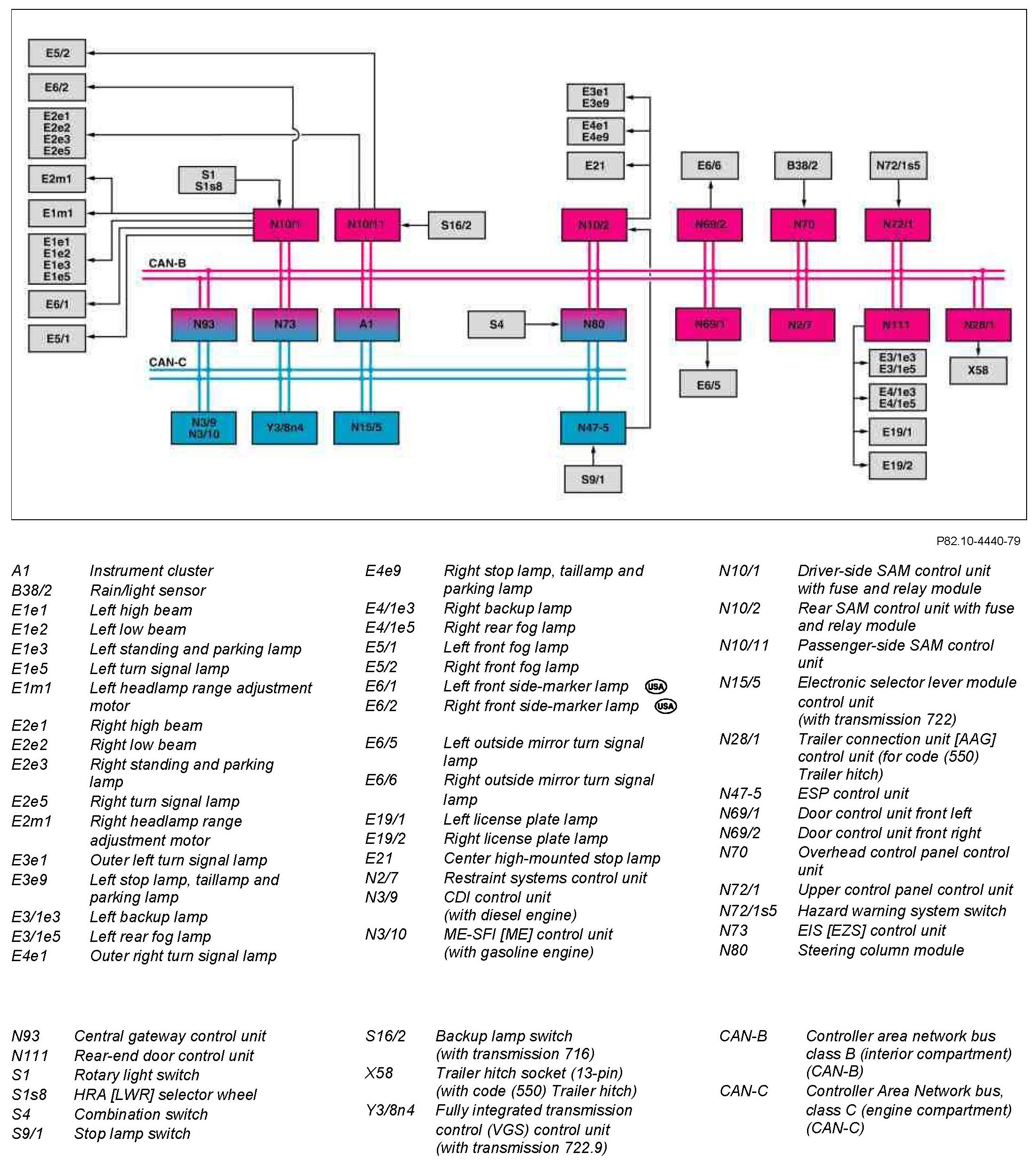

GF82.10-P-0003-03TMB Exterior Lights Block Diagram
GF82.10-P-0003-03TMB Exterior Lights Block Diagram
- except CODE (614) Bi-xenon headlamp unit
- except CODE (618) Bi-xenon headlamps
Component Identification:
GF82.10-P-0003-03TMB Exterior Lights Block Diagram
- except CODE (614) Bi-xenon headlamp unit
- except CODE (618) Bi-xenon headlamps
