Windshield Washer Hose: Service and Repair
AR82.35-P-6985TA Rear Window Windshield Washer System
Washer Fluid
Hose, Remove/Install

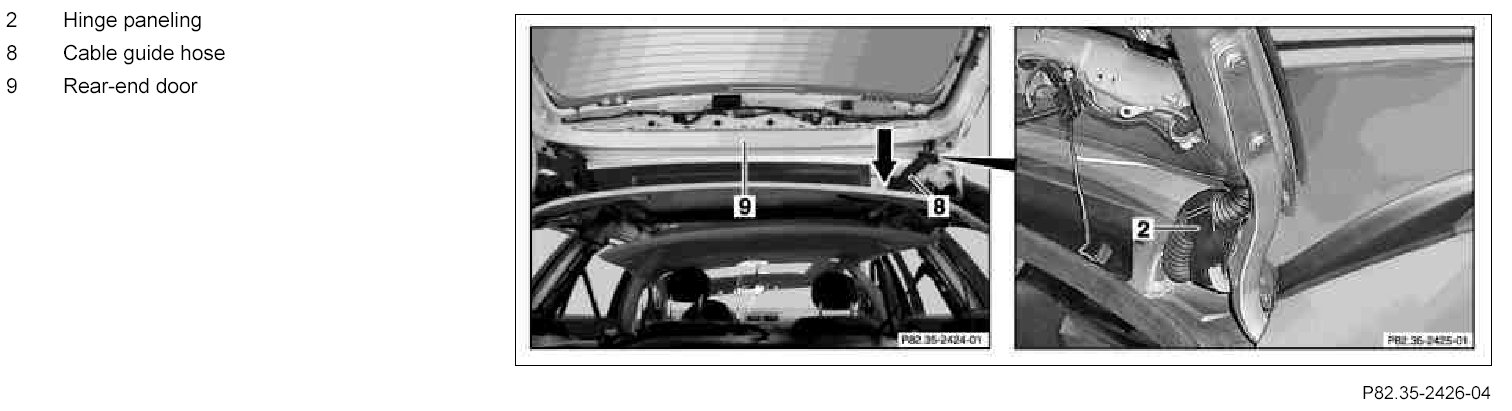

Component Identification:

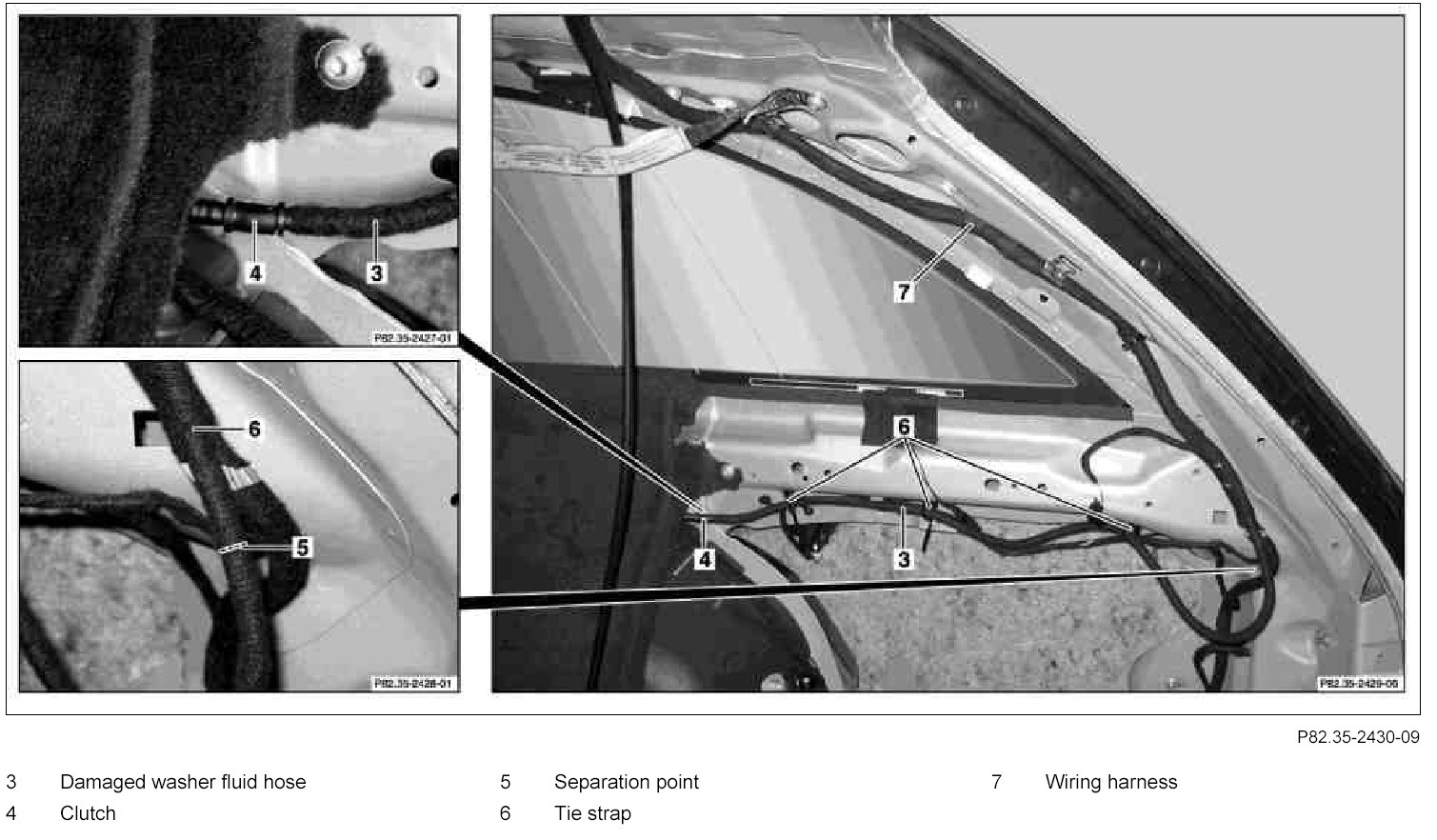

Component Identification:

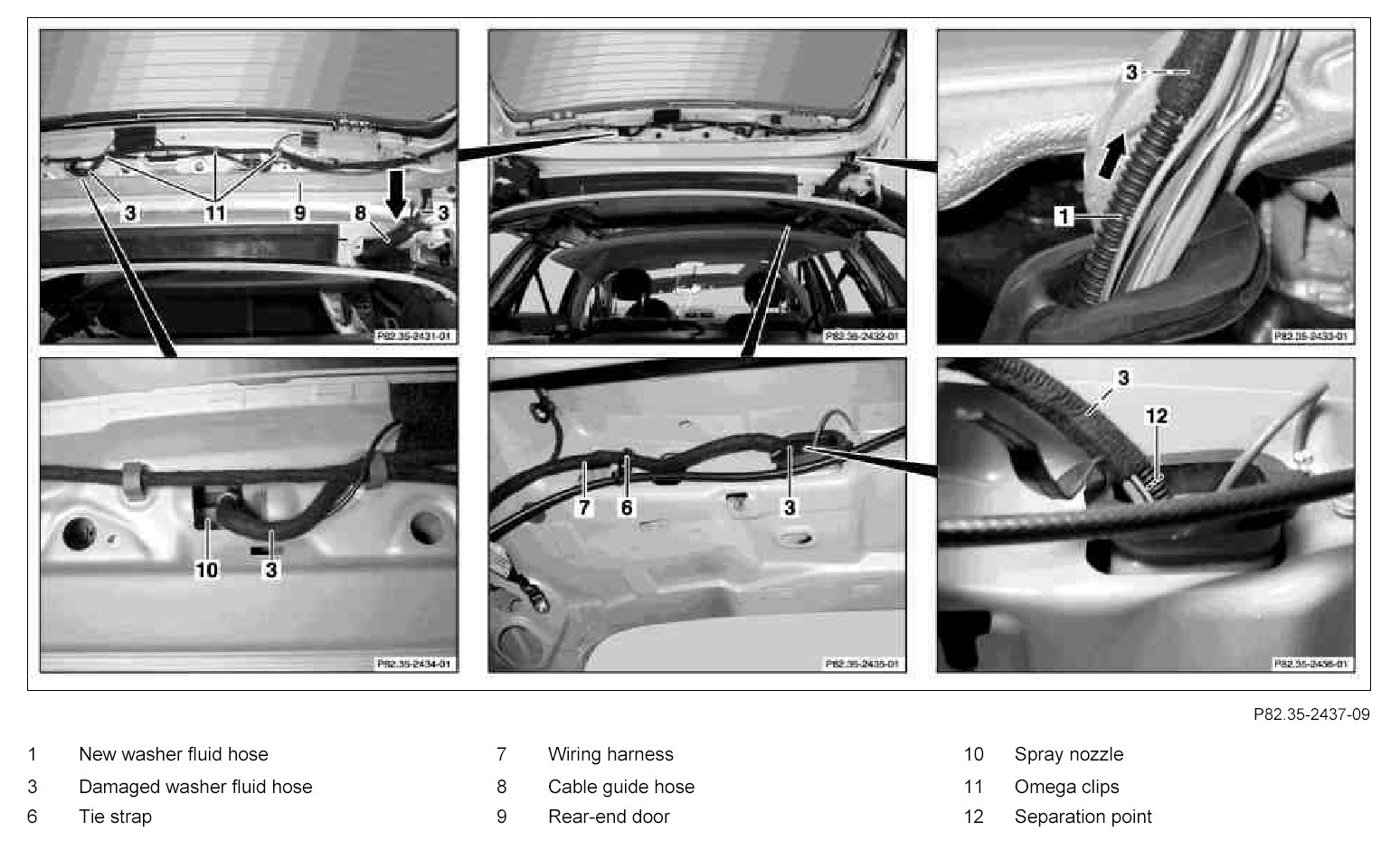

Component Identification:
Component Identification:
Steps 1 - 20:

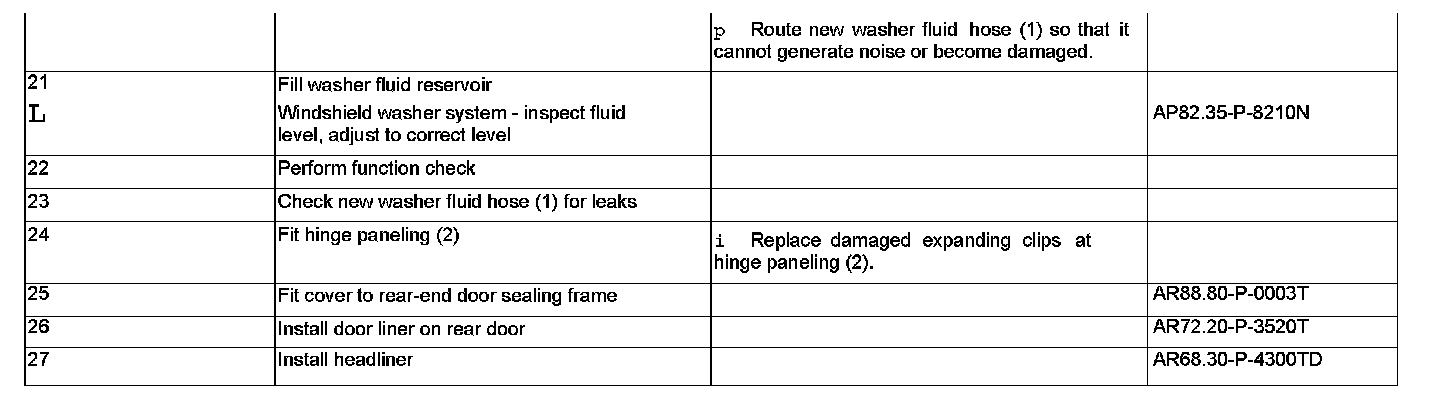

Steps 21 - 27:
