Collision Avoidance and Parking Assist Systems: Service and Repair
AZ54.65-P-0001TT Retrofit Ultrasonic Back-up Assist
Component Identification:

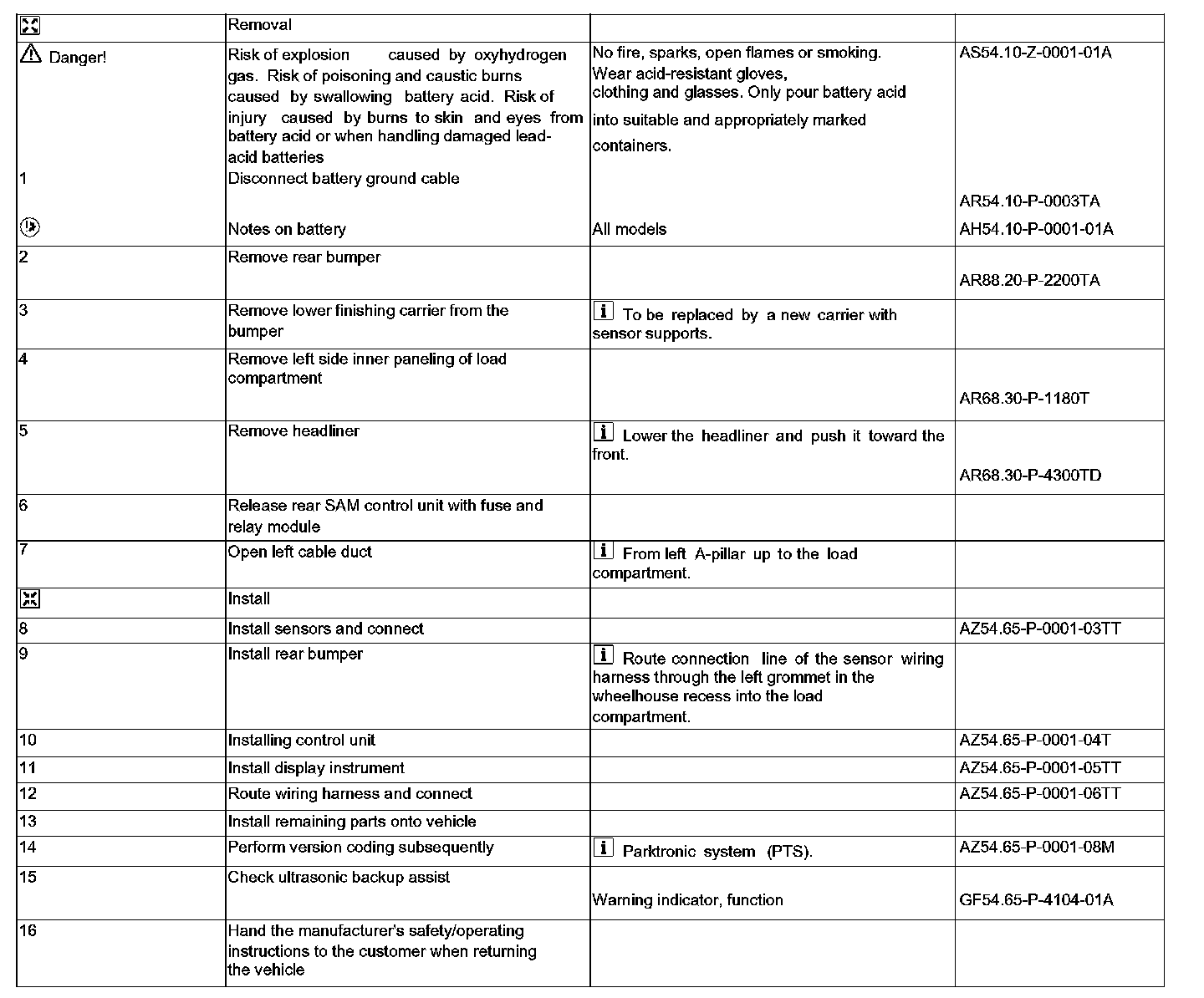

Steps 1 - 16:

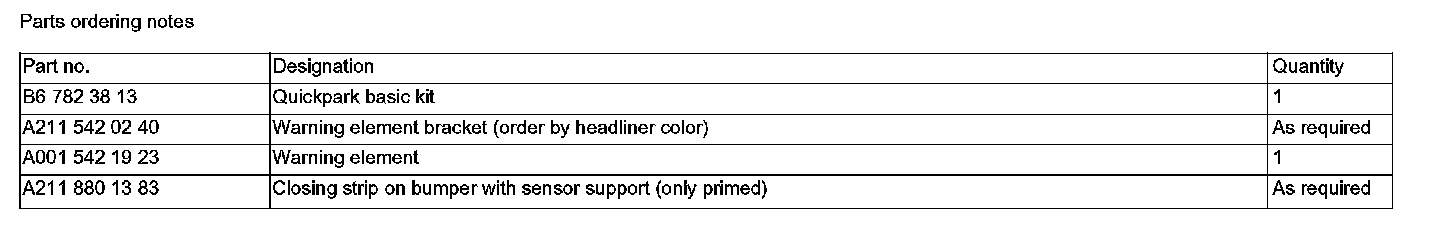

Parts Ordering Notes:
