Grille: Service and Repair
AR88.40-P-4000M Removing Radiator Cover, Disassembling And Assembling, Installing

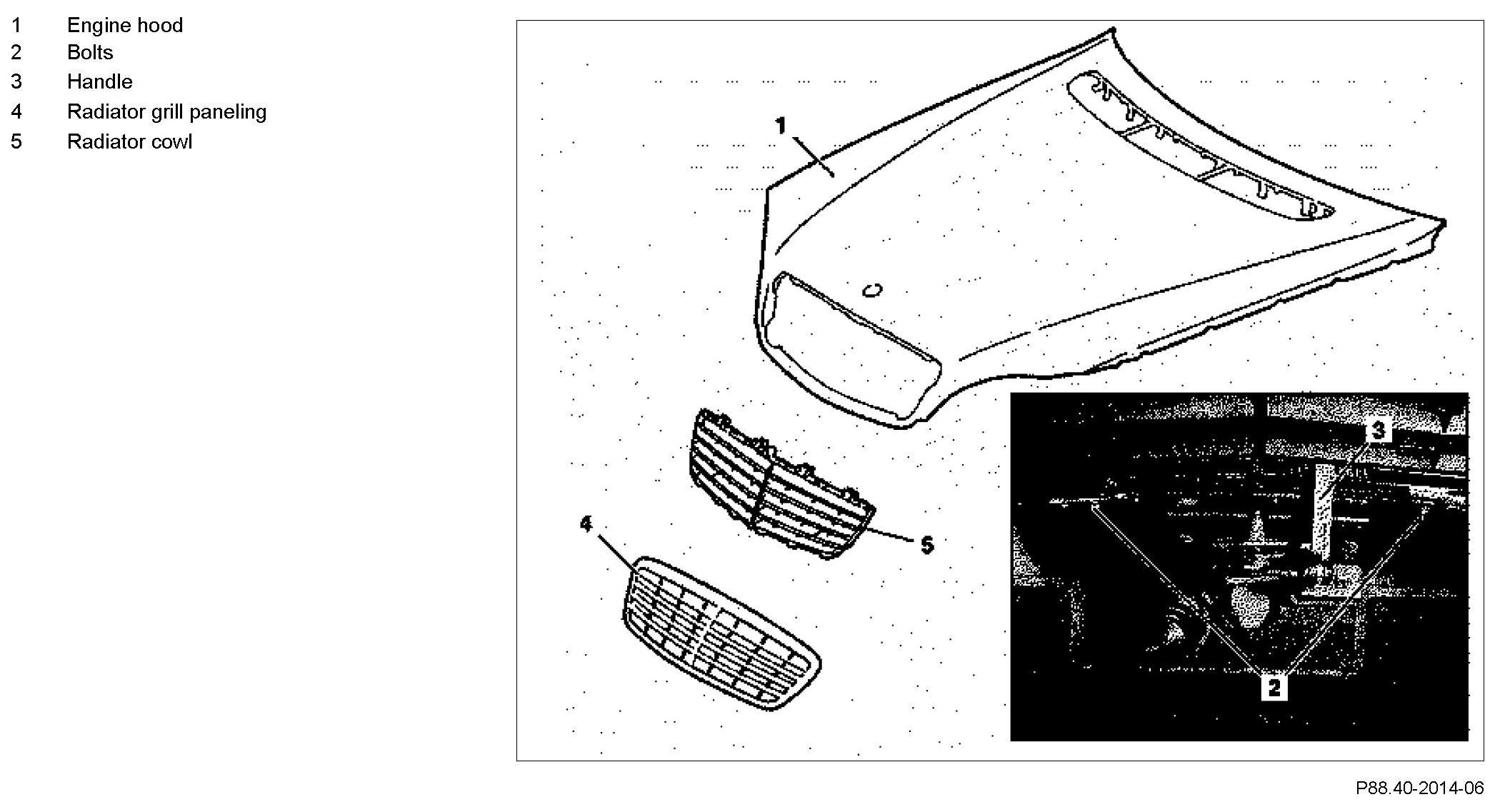

Component Identification:

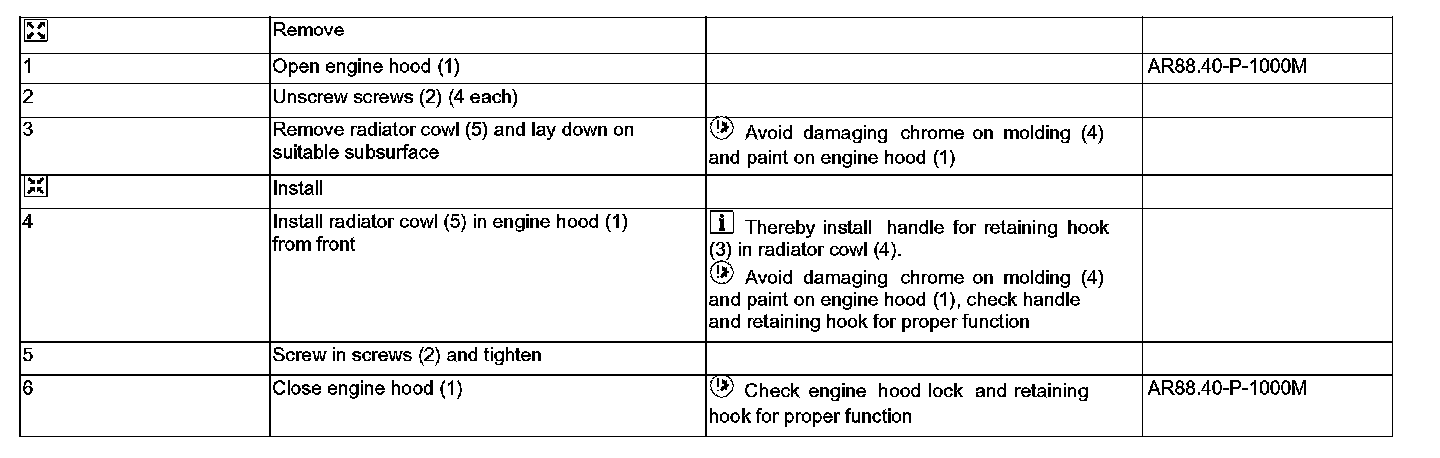

Steps 1 - 6:
