Center Mounted Brake Lamp: Service and Repair

AR82.10-P-5375M Remove/Install Center High-Mounted Stop Lamp

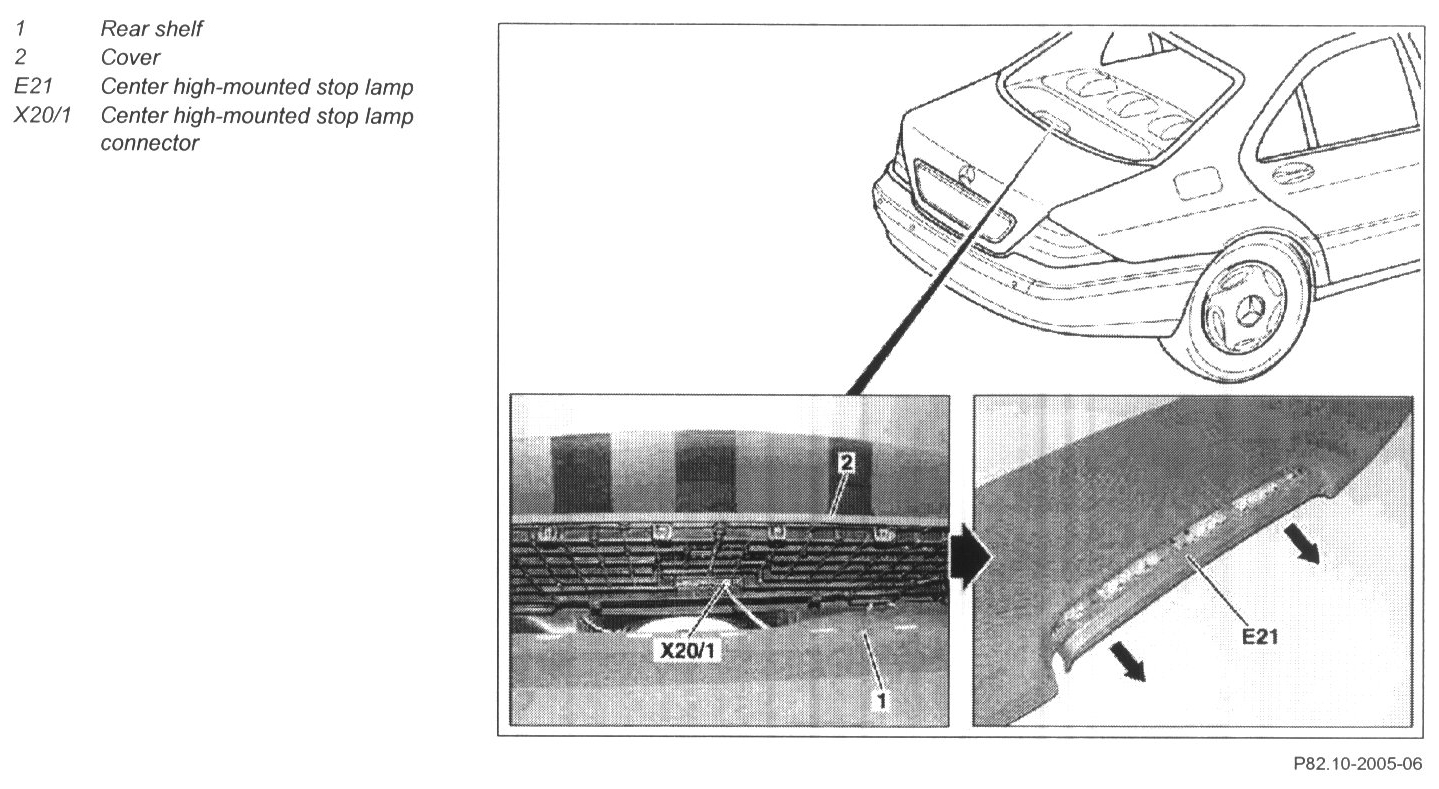

1 Use a plastic wedge to lever out cover (2) on rear shelf (1)

CAUTION: Pay attention to cleanliness

- See "Special Tools" below.

2 Detach connector for center high-mounted stop lamp (X20/1)
3 Push out center high-mounted stop lamp (E21) from covering (2) in direction of arrow
4 Install in the reverse order
5 Perform function check.


Special tools

Assembly Wedge P/N # 110 589 03 59 00:
