Windshield Washer Spray Nozzle: Service and Repair

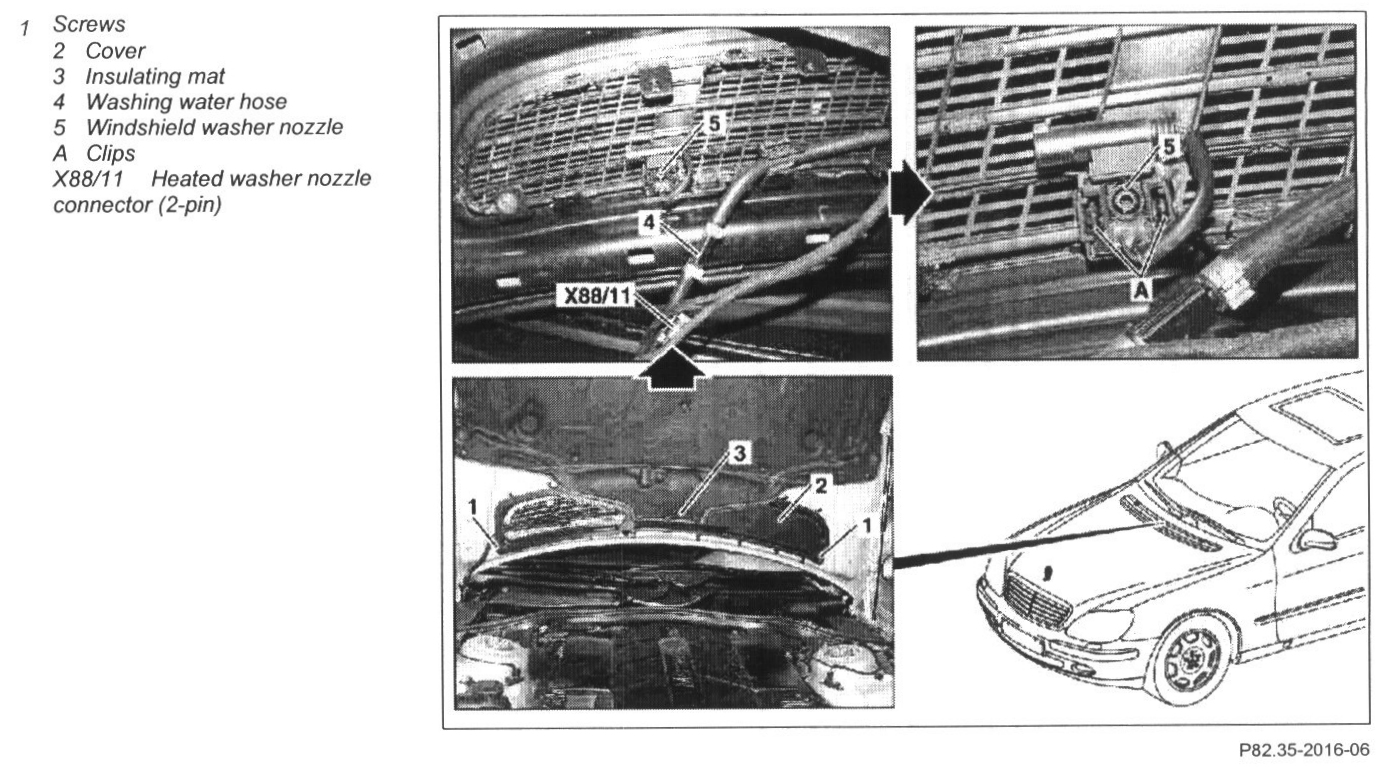

AR82.35-P-6970M Remove/Install Windshield Washer Nozzle







1 Open engine hood and move to upright position
2 Unscrew screws (1) on cover (2)
3 Hold back overlapping part of insulating mat (3), unclip cover (2) from engine hood and remove cover (2)
4 Pull washing water hose (4) off of windshield washer nozzle (5)
5 Disconnect heated washer nozzle connector (2-pin, X88/11) from windshield washer nozzle (5)
6 Press clip (A) in direction of arrow and remove windshield washer nozzle (5)
7 Install in opposite order
8 Check fluid level in windshield washer system, correct
9 Check windshield washer and wiper for proper function.
