Electrical Diagrams

Heated Windshield PE67.10-U-2000SA

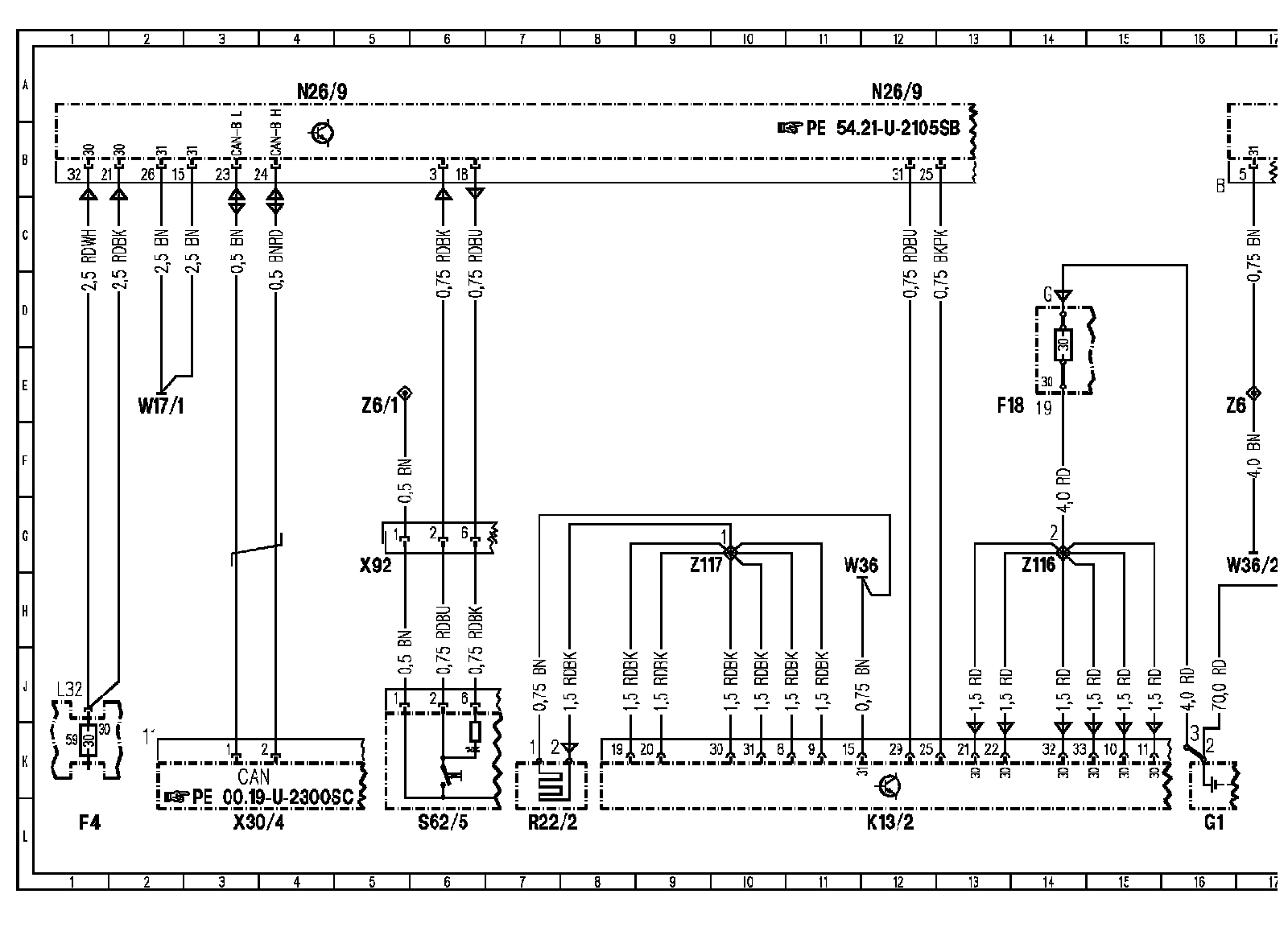

Wiring Diagram, Part 1:

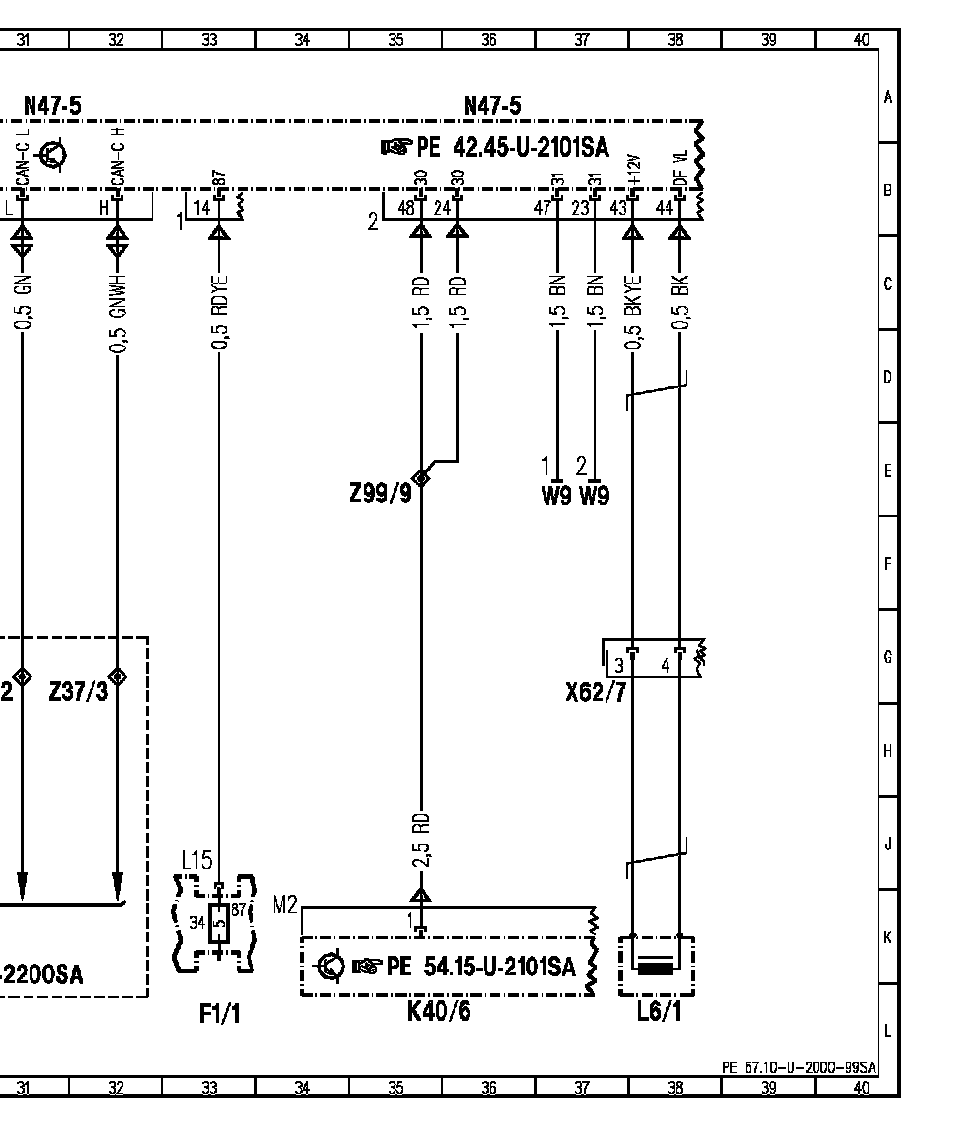

Wiring Diagram, Part 2:

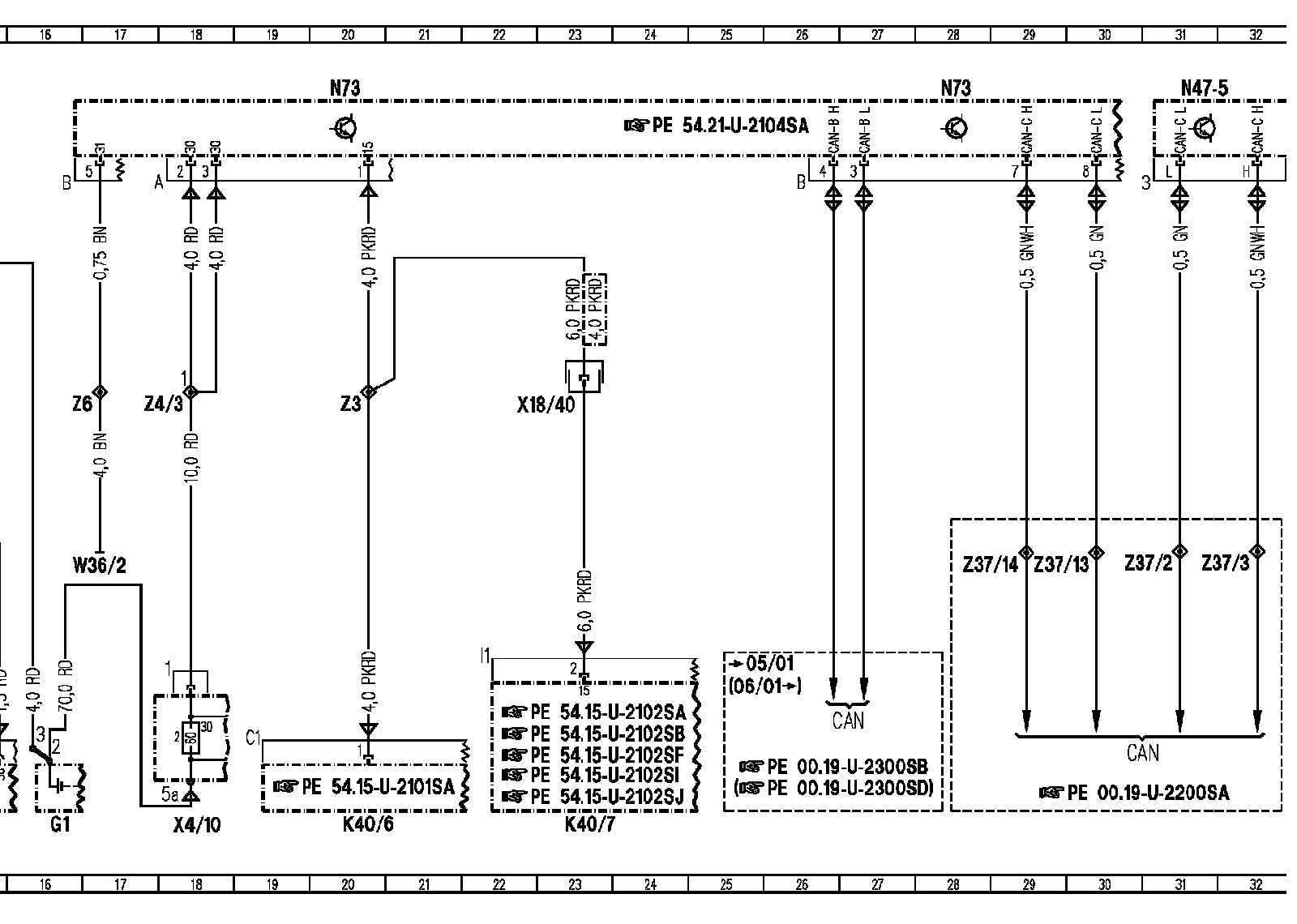

Wiring Diagram, Part 3:

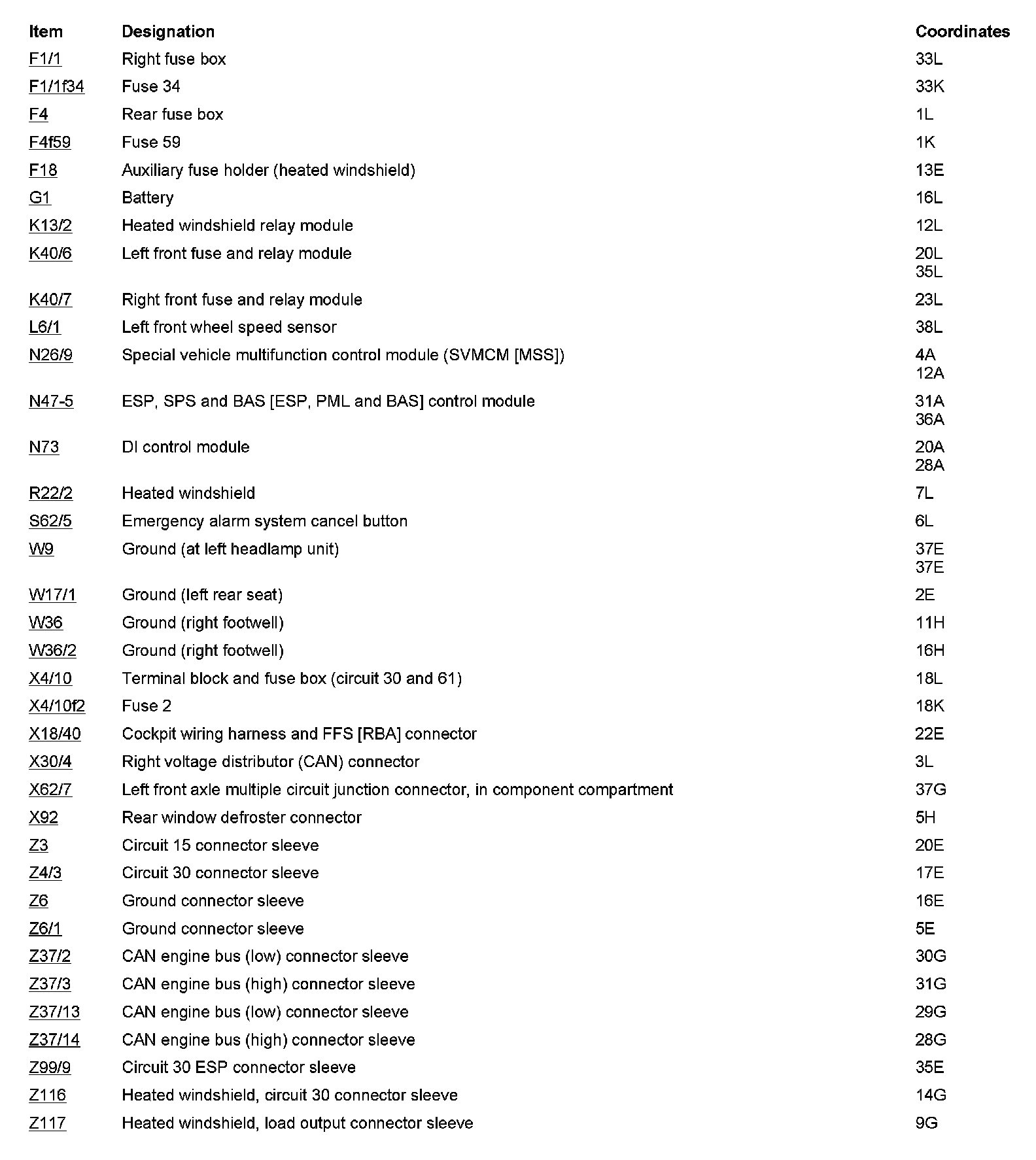

Component Description/Coordinates, F1/1 to Z117:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
