ME-SFI Fuel Injection/Ignition System PE07.61-U-2101SJ (Sheet 2)

ME-SFI Fuel Injection/Ignition System PE07.61-U-2101SJ (Sheet 2)
- ME 2.7.1.G

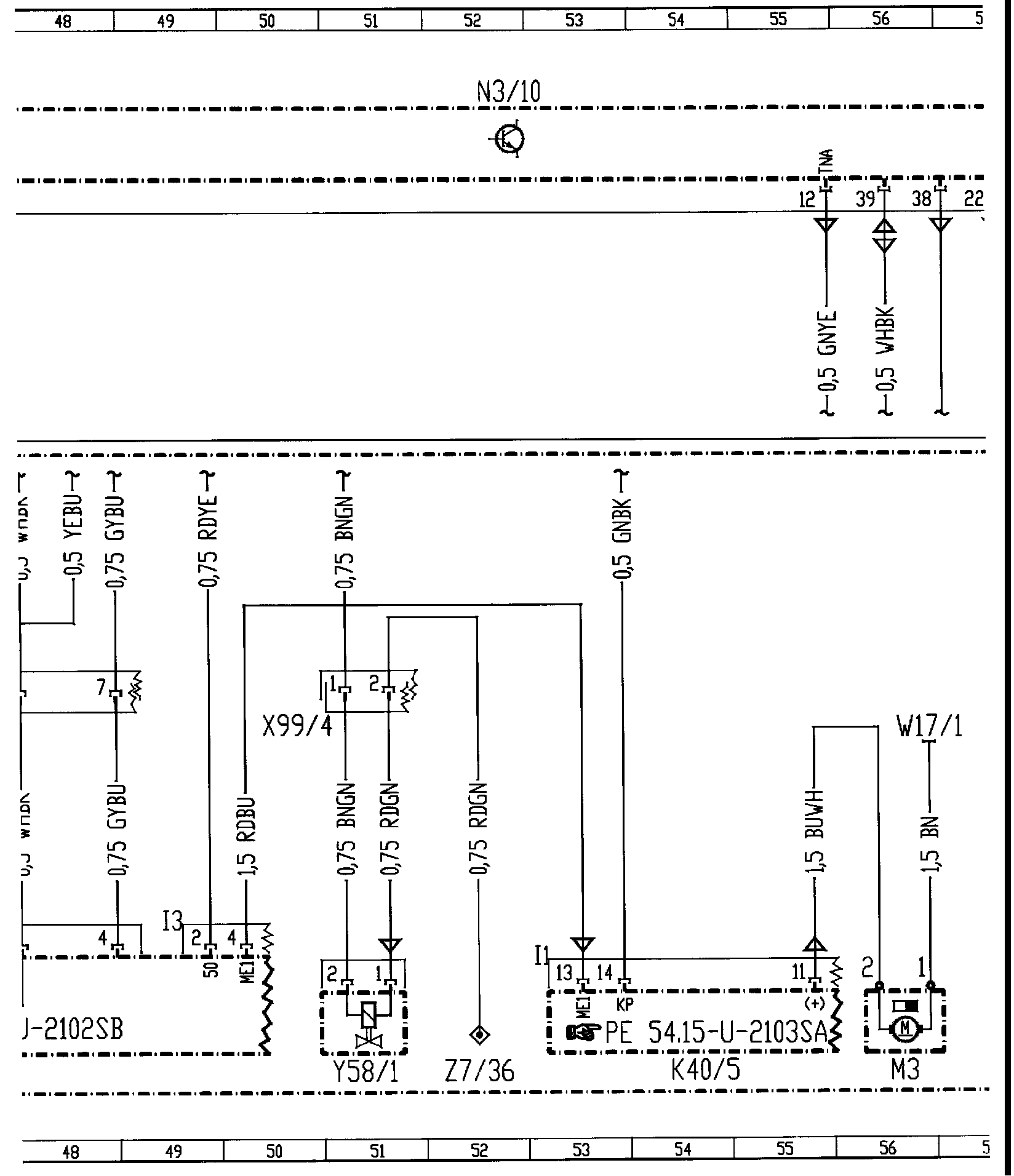

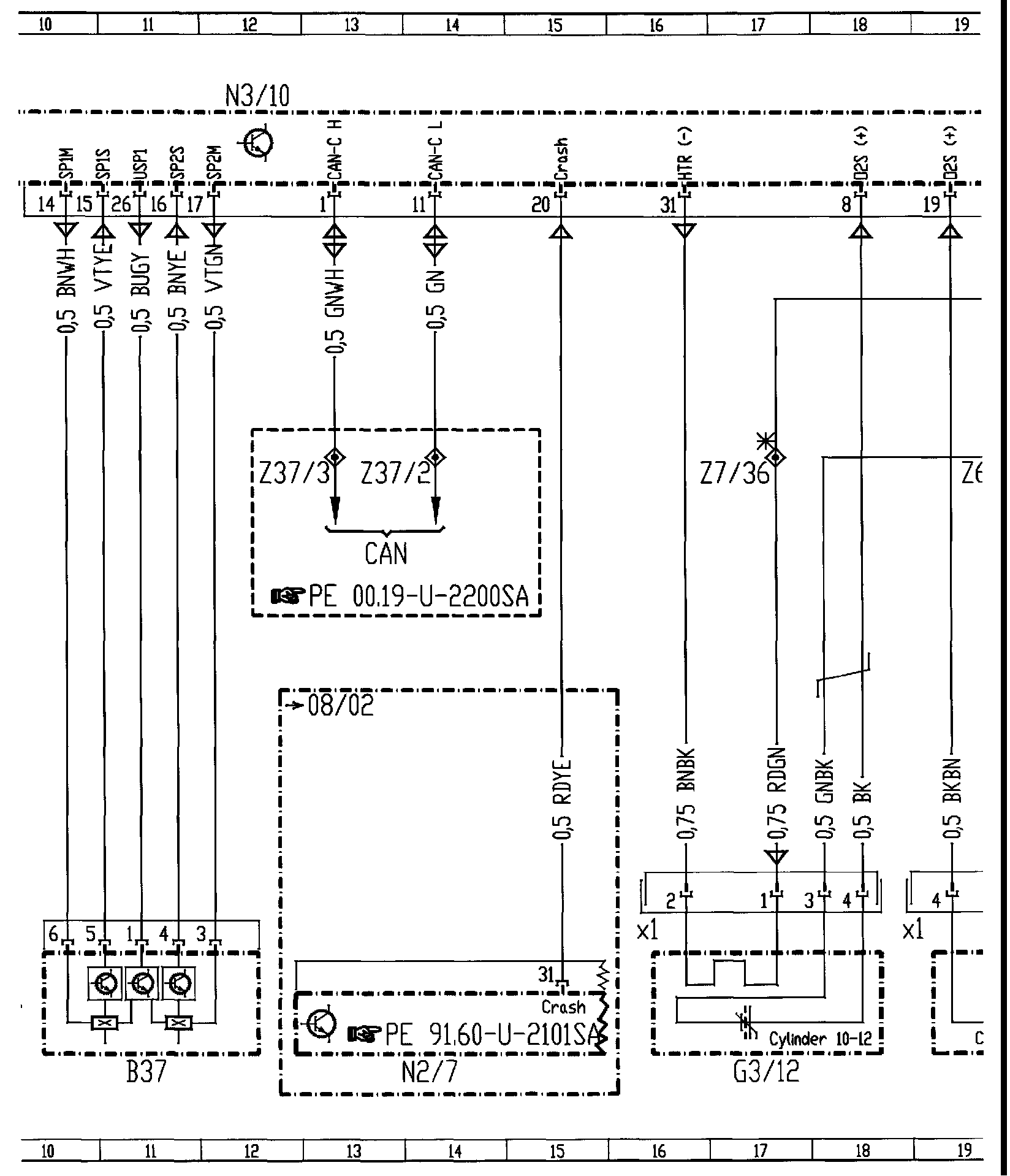

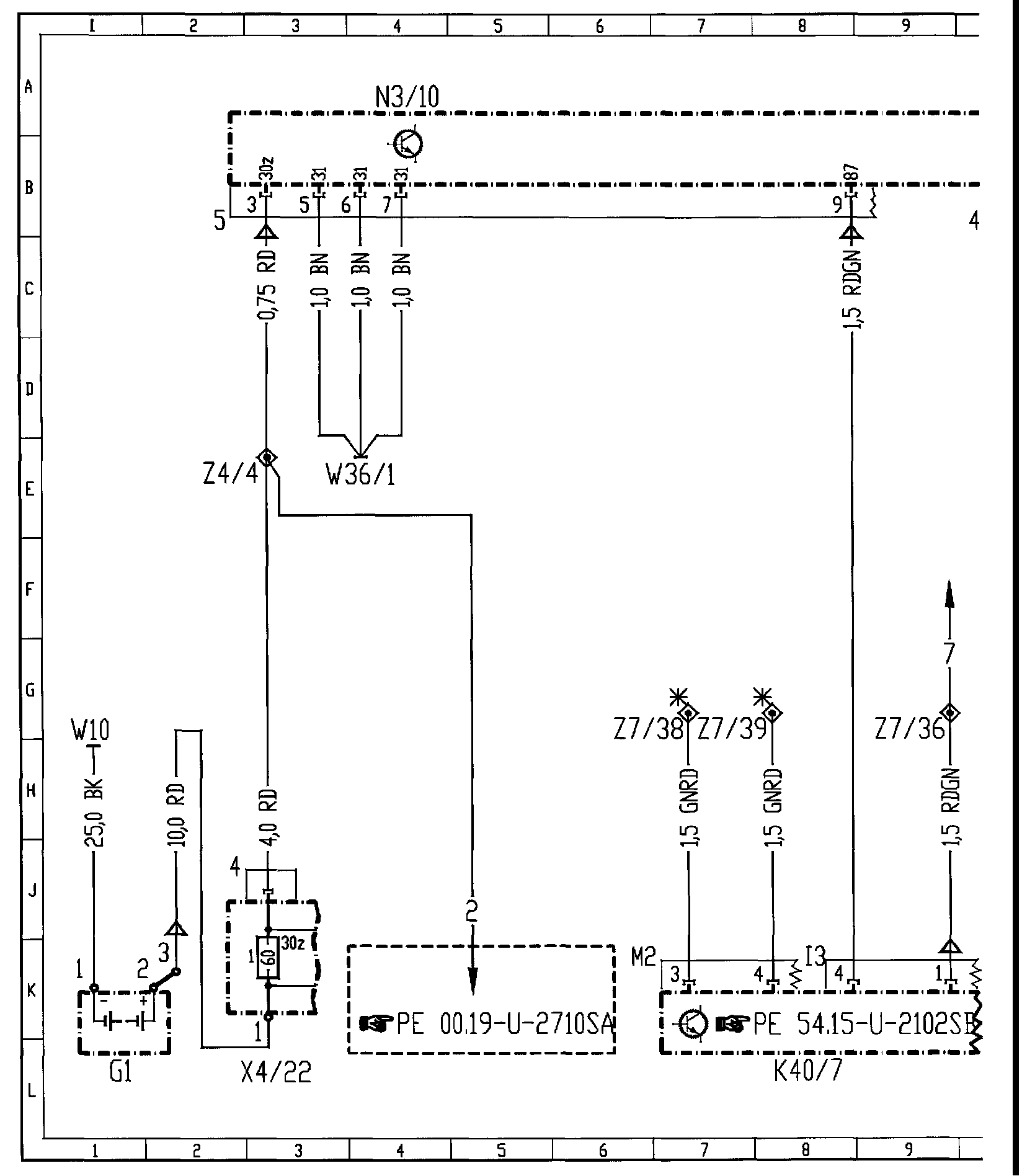

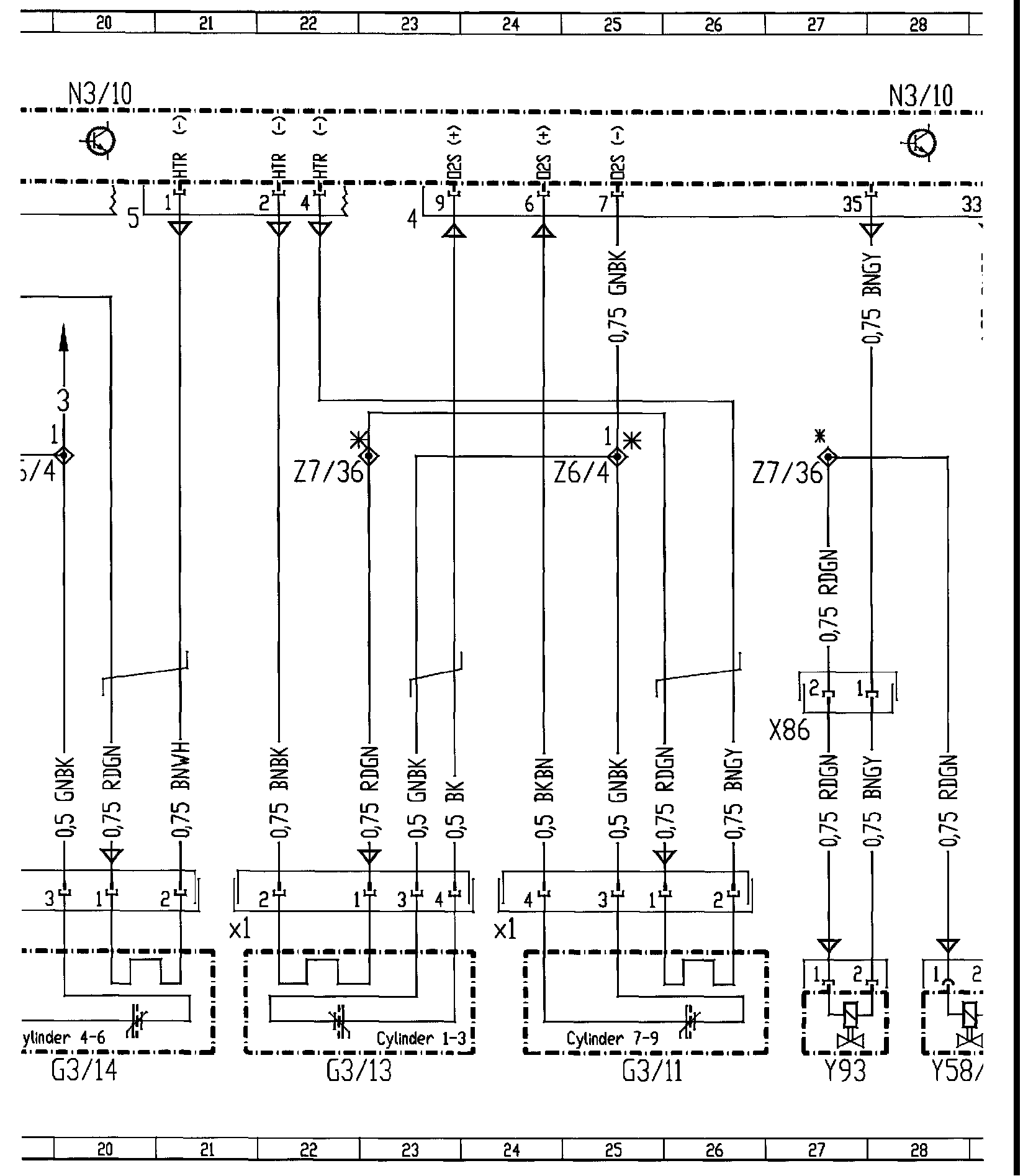

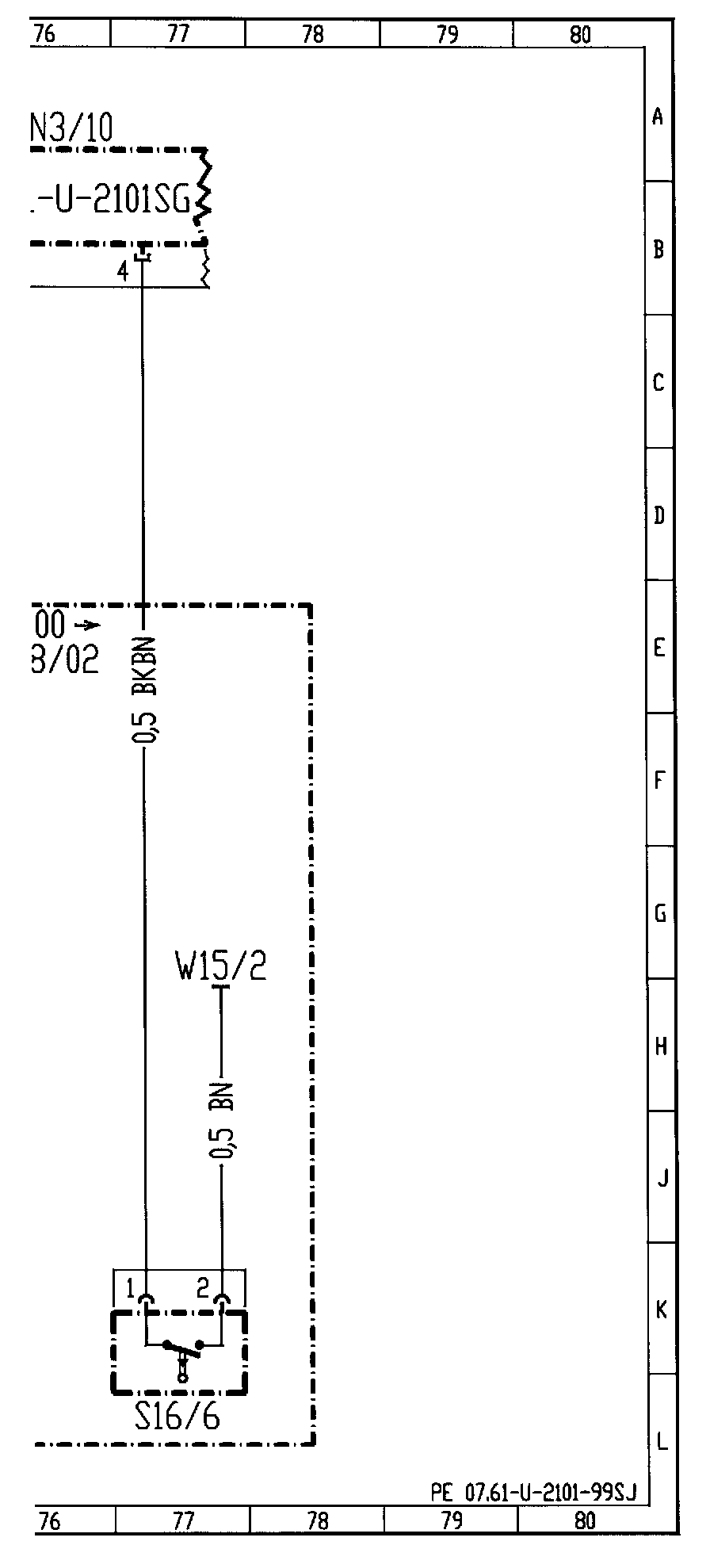

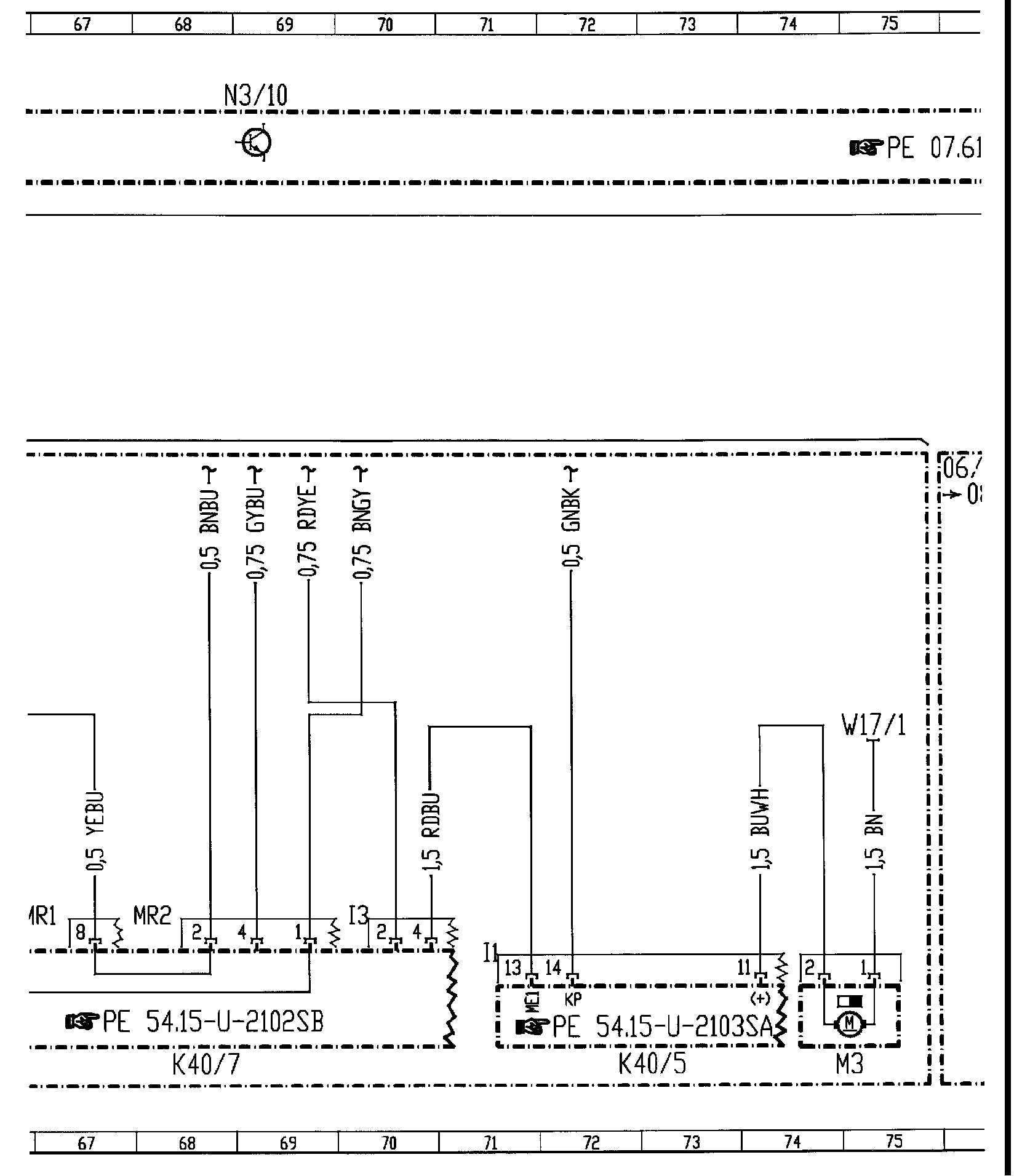

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

(PART 1) Legend For ME-SFI Fuel Injection & Ignition System:

(PART 2) Legend For ME-SFI Fuel Injection & Ignition System:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
