Air Duct: Testing and Inspection
AP83.10-P-8353B Check Water Drain In Air/water Duct

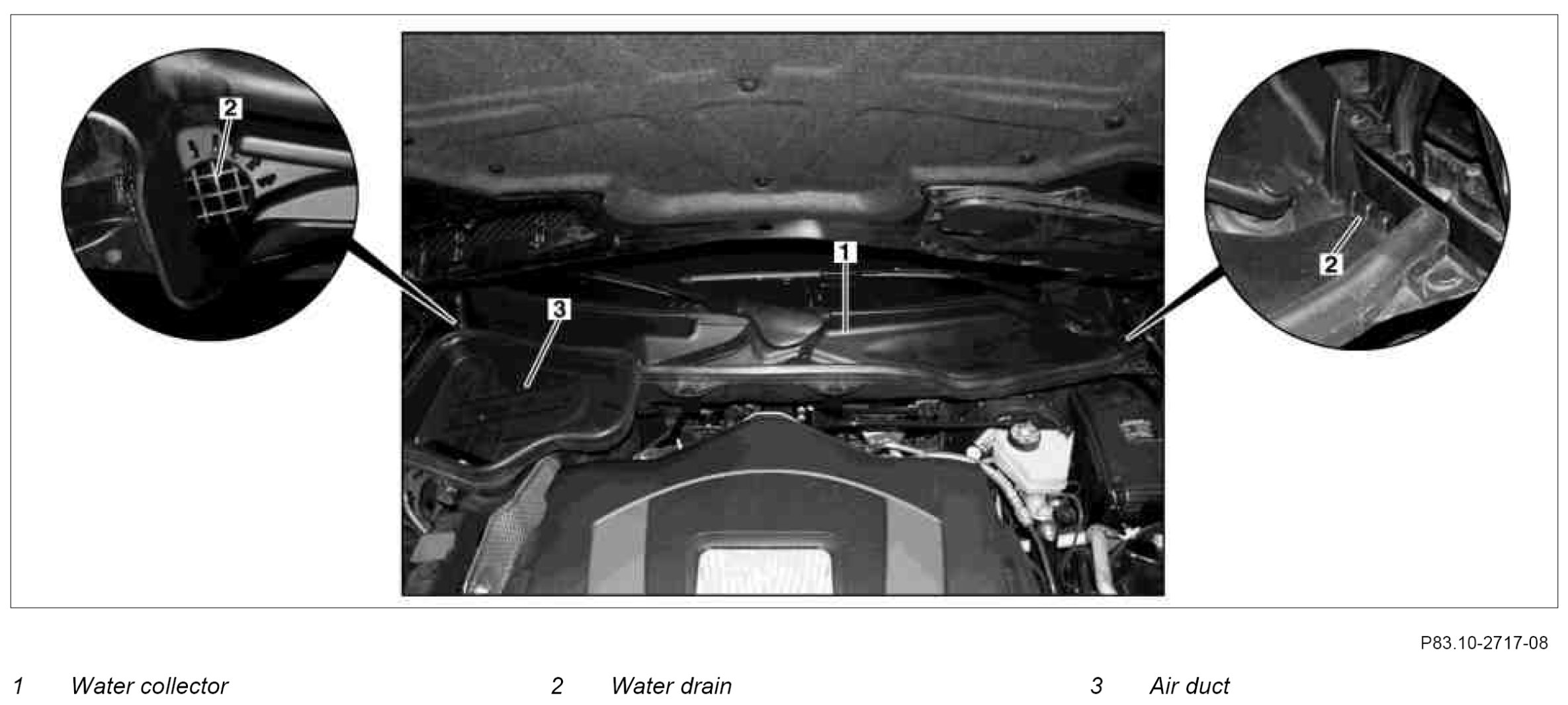

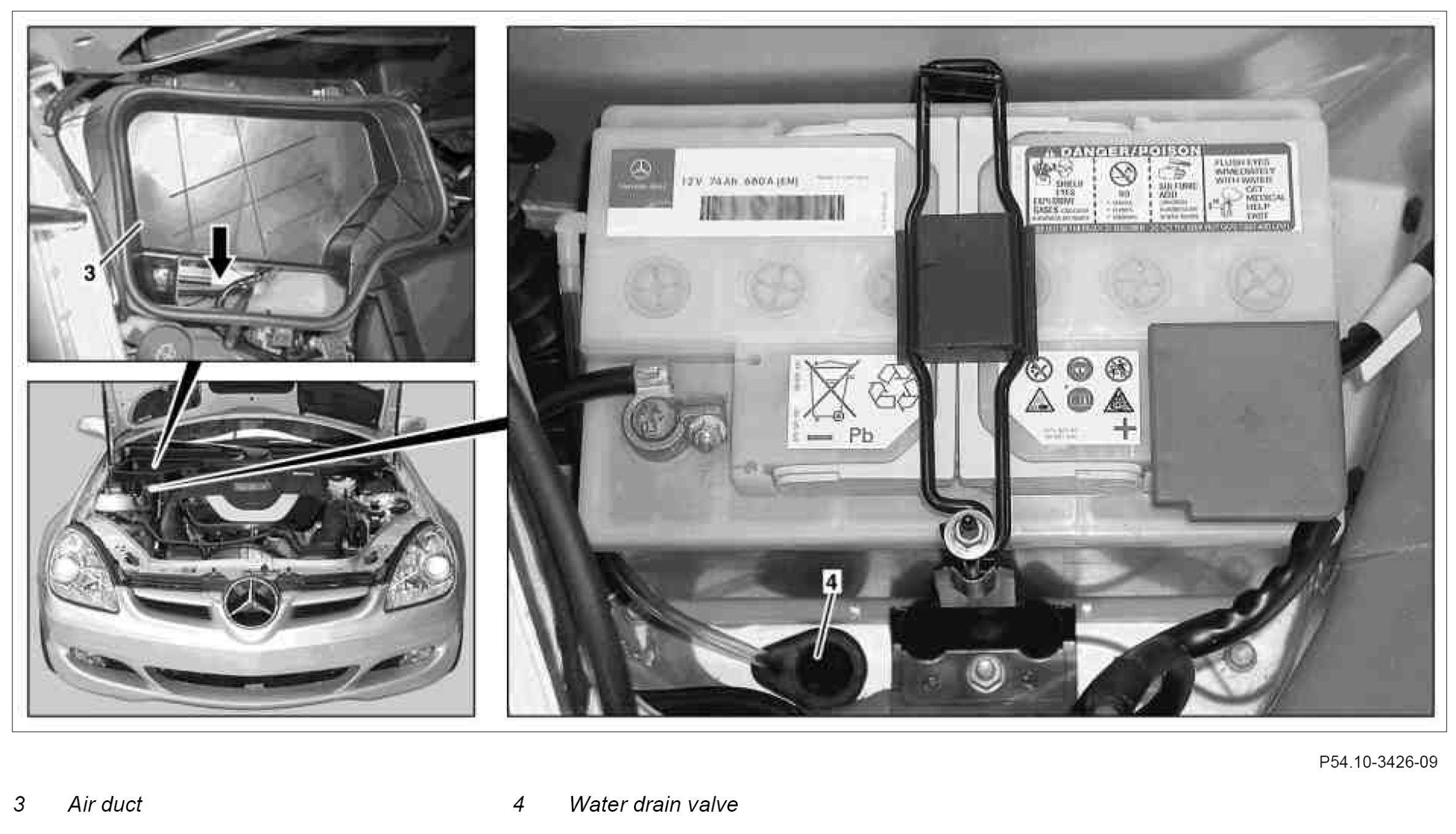

Component Identification:
Component Identification:

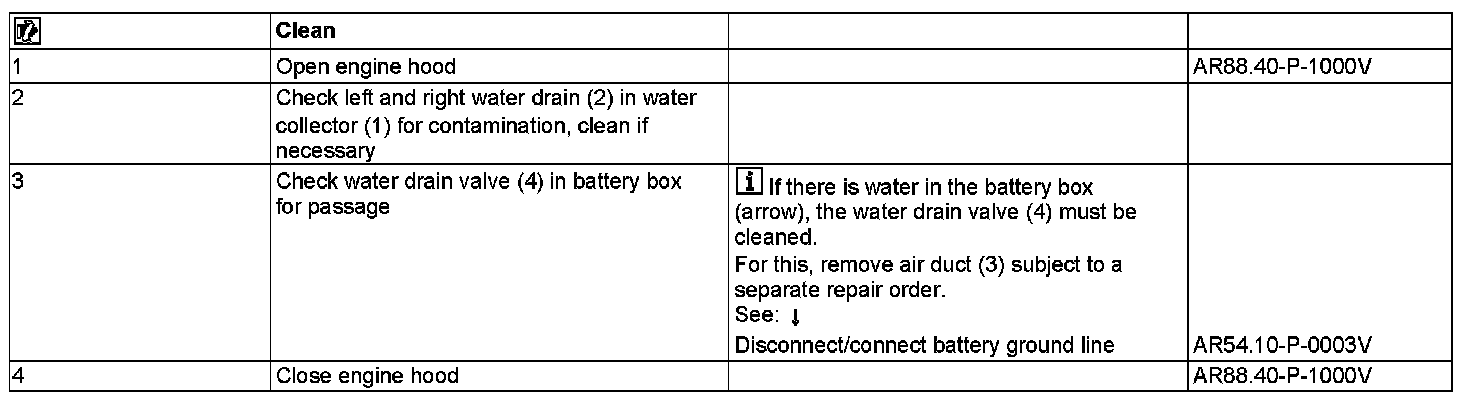

Steps 1-4:
