Relay Box: Application and ID

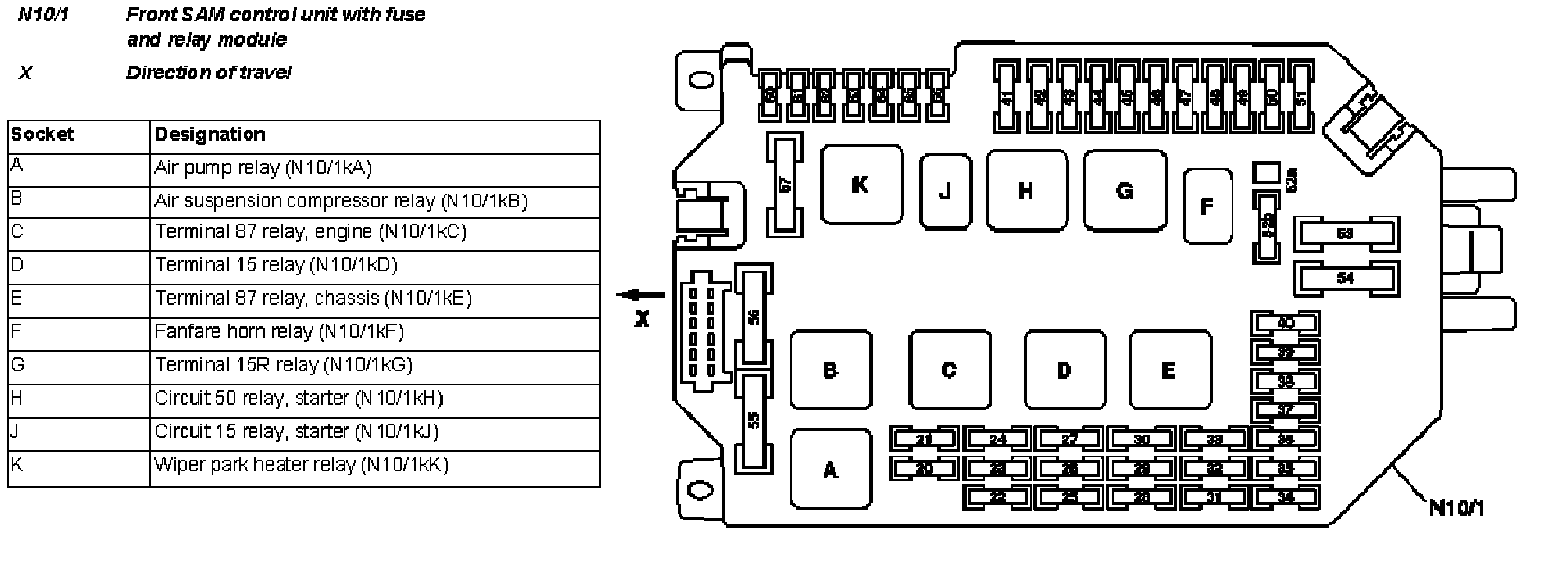

Relay assignment of fuse and relay box in left engine compartment

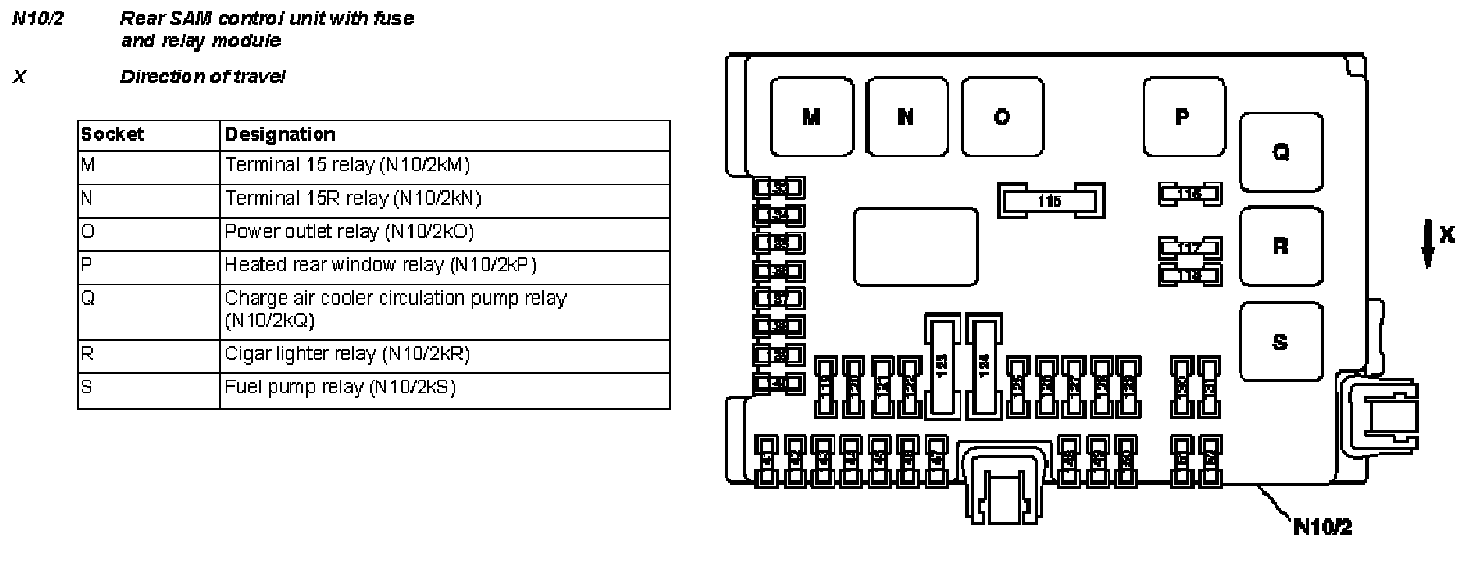

Relay assignment of fuse and relay box in trunk
