Function Diagrams

PE15.00-U-2050CAA Electrical Function Diagram For Starter, Alternator, Battery

ENGINE 156.984
- as of 06/01/07 in MODEL 216.377
- with TRANSMISSION 722.9
- up to Model Year 2008
ENGINE 273.961 in MODEL 216.371
- with TRANSMISSION 722.9
- up to Model Year 2008



























































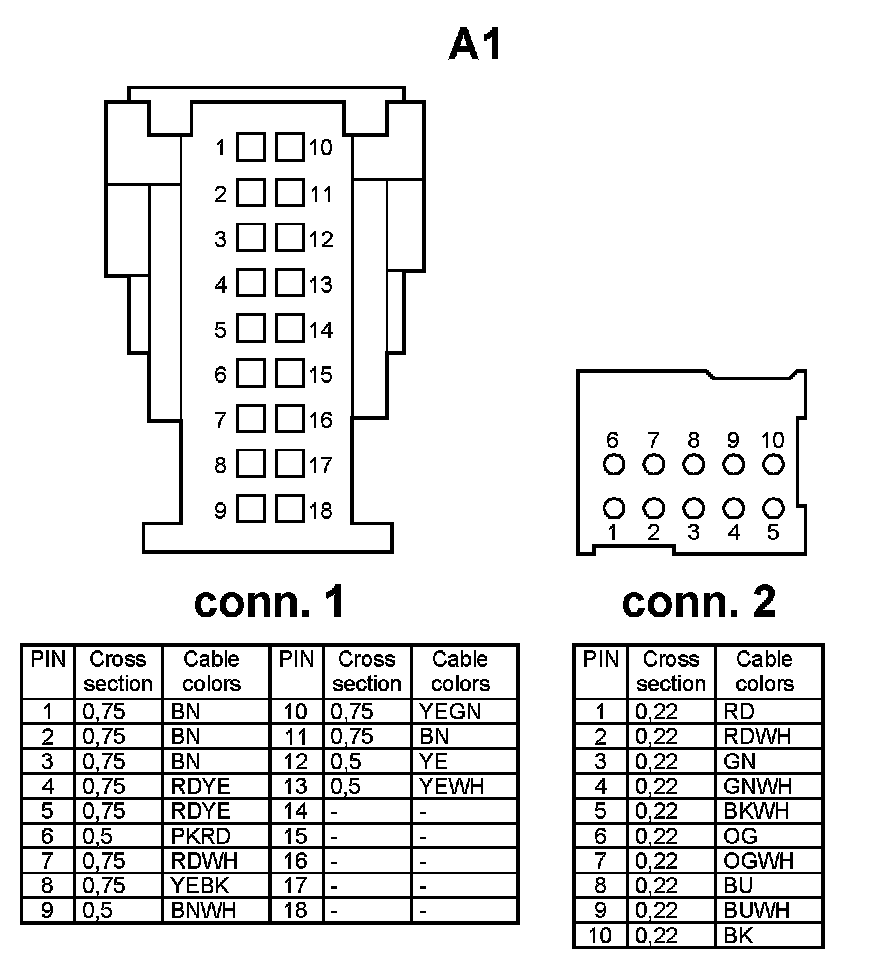

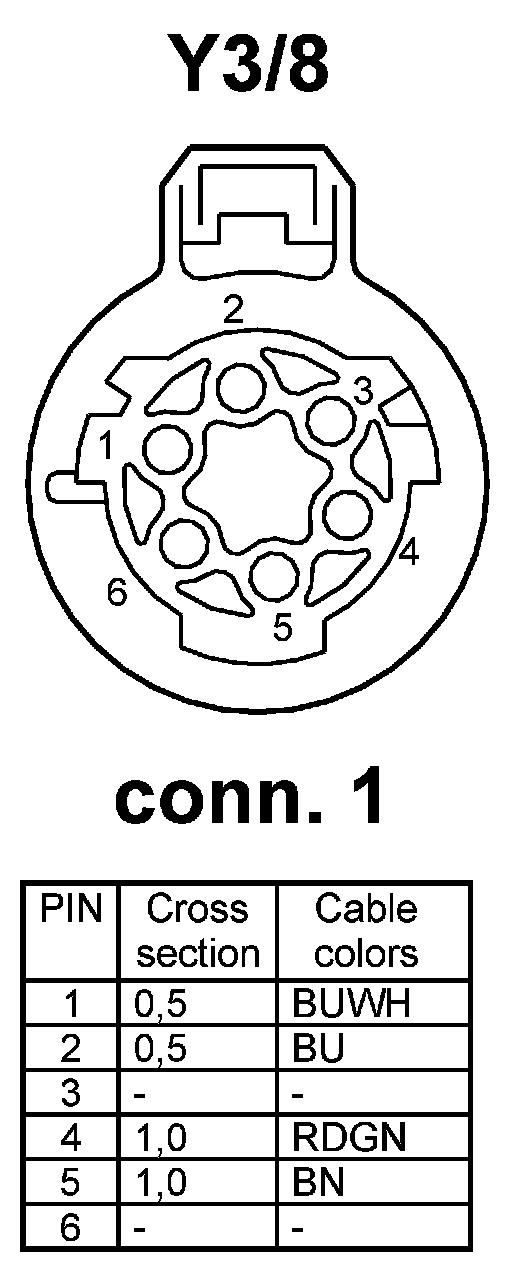

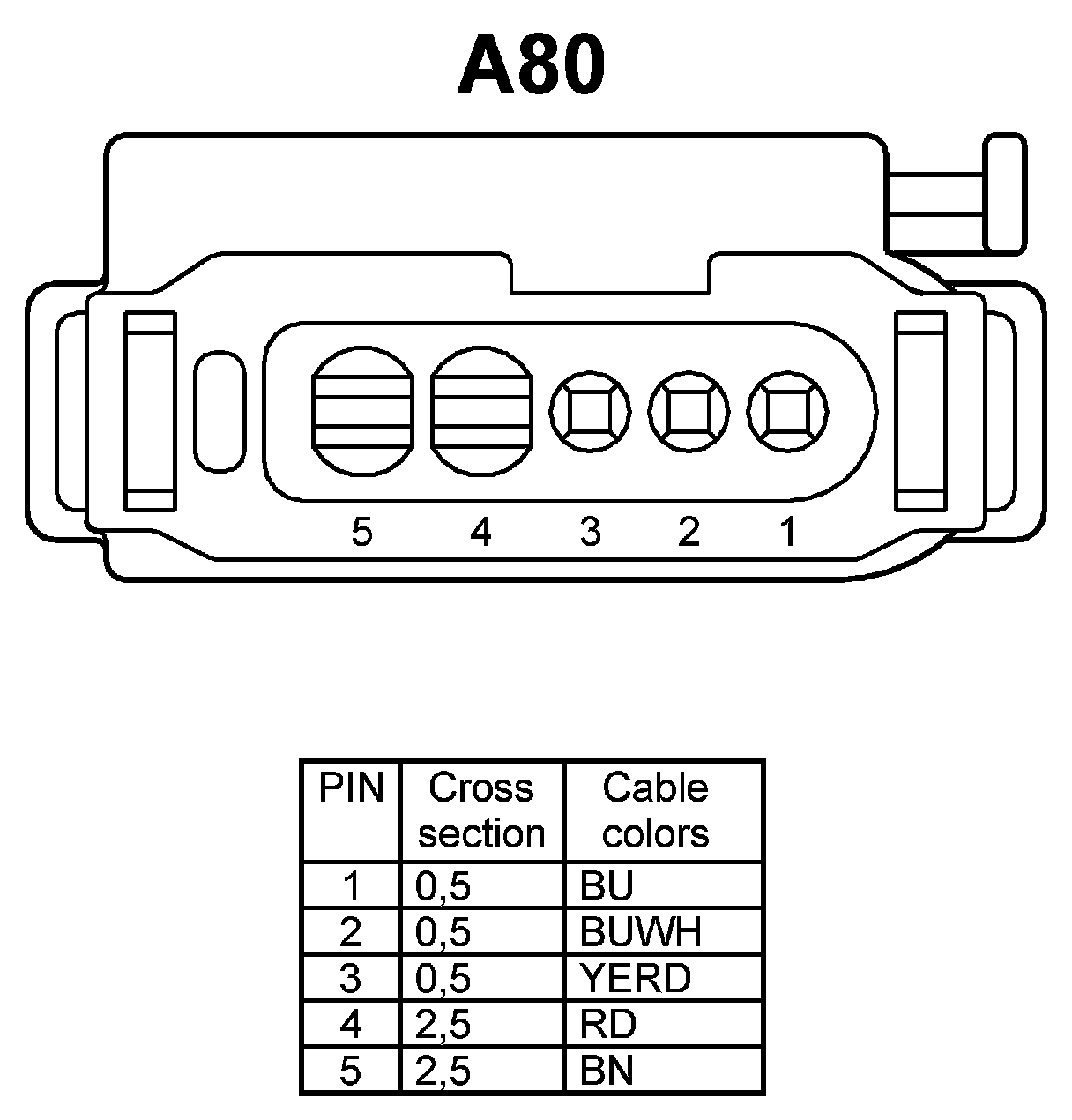

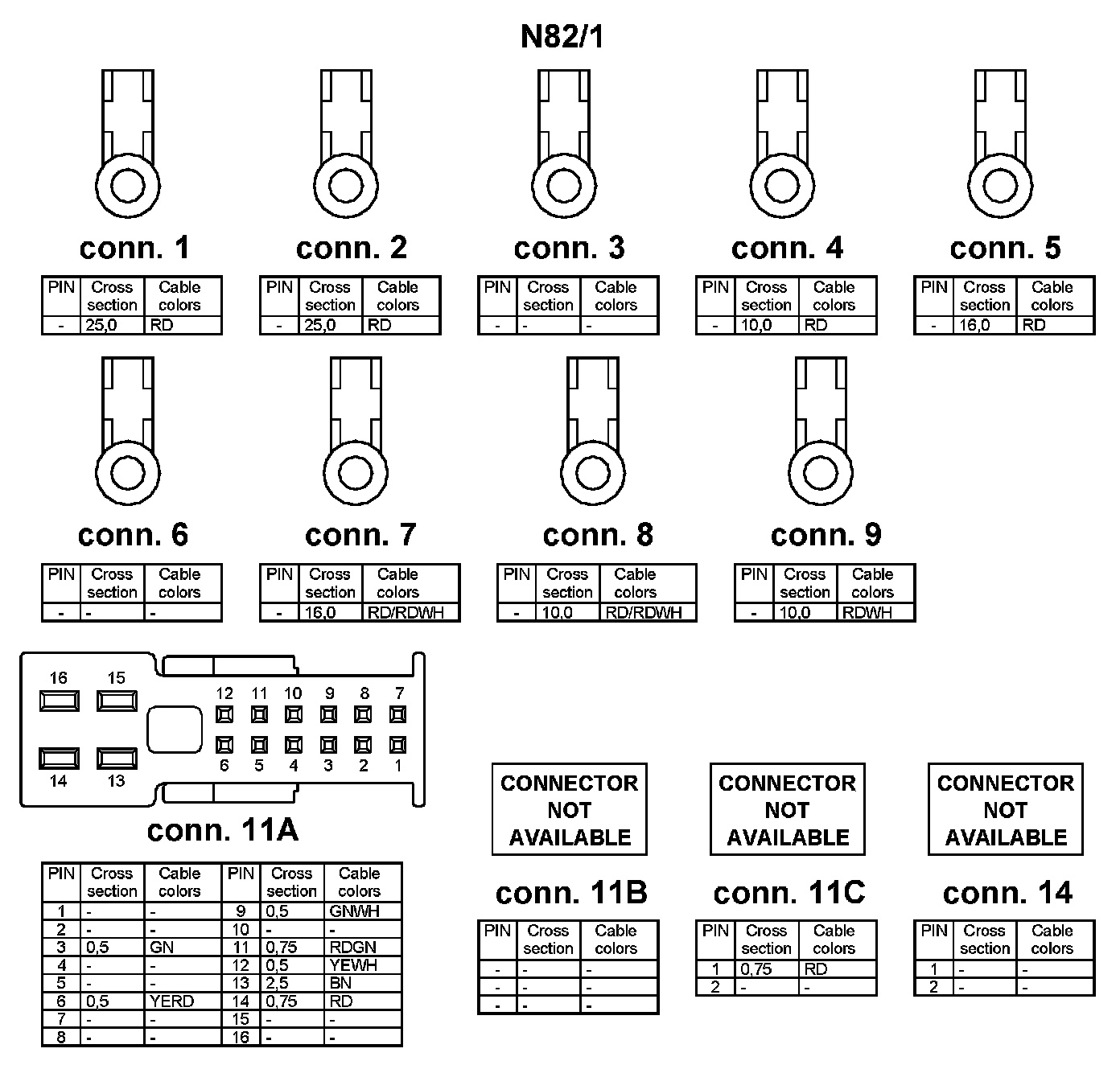

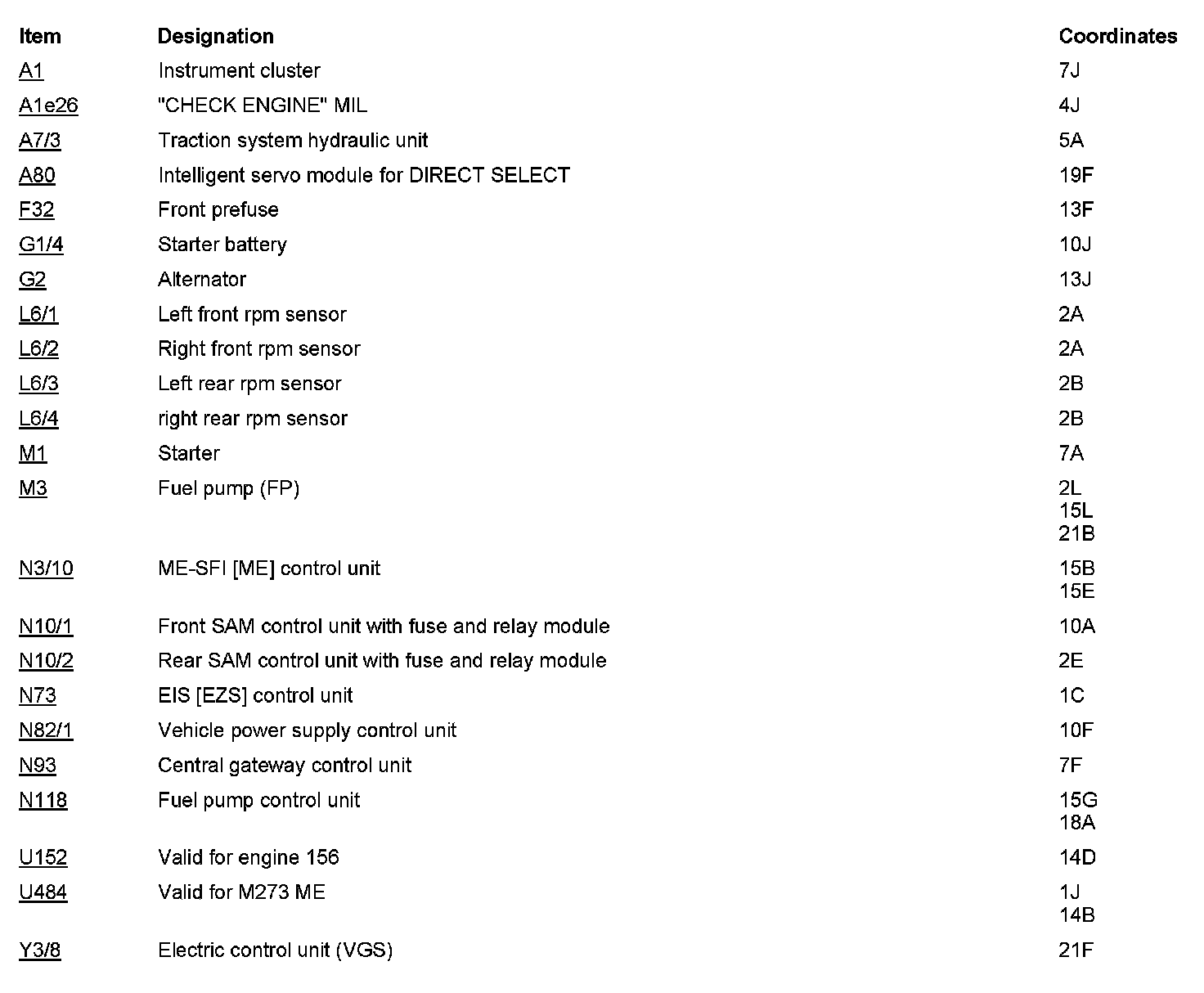

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
