Body - Hard to Open Doors From Outside

Date: March 1, 2007
Order No.: P-B-72.10/75a
Supersedes: P-B-72.10/75 dated Nov. 29, 2006
Group: 72

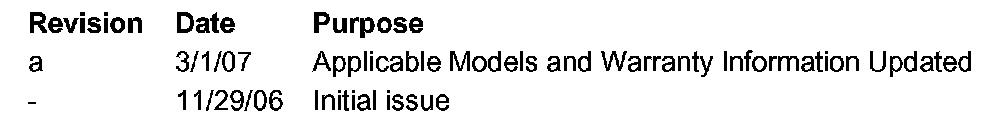

Revision History

SUBJECT:
Model 216.371/376

Model 221.171/176/179

Difficulty Opening Doors from Outside the Vehicle





If you receive customer reports in the above model vehicles of difficulty opening the doors from the outside of the vehicle, this may be due to insufficient lubrication in the door lock mechanism. To resolve, apply a small amount of lubricant to the main detent tooth of the rotary tumbler (Figure 1).

Note:
Only a small amount of lubricant is needed.

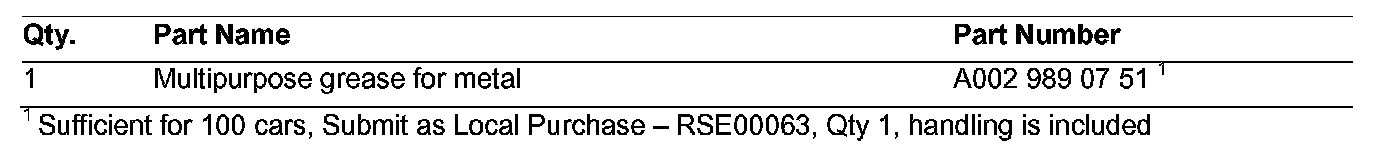

Parts Information

Note:

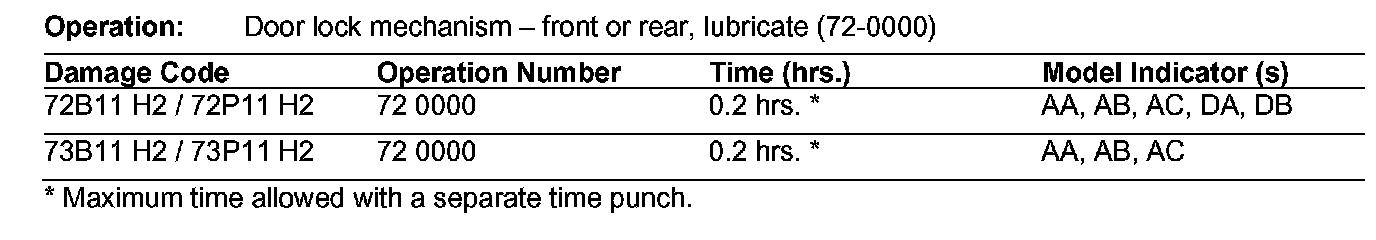

The following allowable labor operations should be used when submitting a warranty claim for this repair





In Case of Warranty
