Body - Poor Rear Bumper trim Fit

Date: March 22, 2007

Order No.: P-B-88.20/60

Supersedes:

Group: 88

SUBJECT:
Model 216.371, Up to VIN A002900

Equipped with Code 772 (AMG Styling)

Bumper Trim Does Not Fit Correctly








If you receive customer reports in the above model vehicles of the bumper trim not fitting correctly in the rear bumper (Figure 1 and 2), the bumper and trim must be replaced. Refer to WIS document AR88.20-P-2200SC.

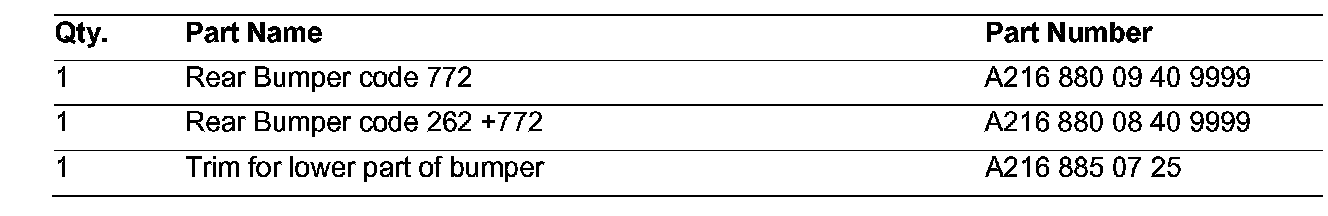

Parts Information

Note:

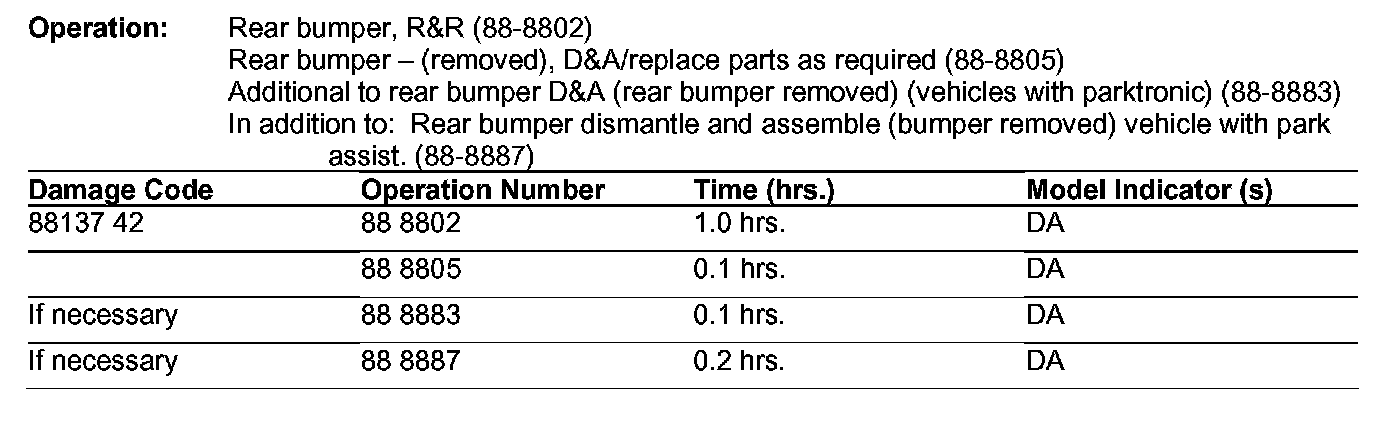

The following allowable labor operations should be used when submitting a warranty claim for this repair





In Case of Warranty
