Collision Avoidance - Erroneous Object Warnings

Date: May 6, 2009

Order No.: P-B-54.70/218

Supersedes:

Group: 54

SUBJECT:
Model 211.056/072, Equipped with SA Code 234 (Blind Spot Assistant)

Blind Spot Assist Issues Stationary Object Warning

If you receive customer reports in the above model vehicles of the "Blind Spot Assist" issuing a "stationary object warning" along with an erroneous warning when driving along crash barriers or walls, and the red triangle in the outside mirror illuminates, this may be caused by faulty recognition of wide stationary objects.

To resolve, flash the radar sensor control unit (SGR) with SDS Version 04/2009 or later. The software update desensitizes the sensor system with regard to recognizing wide stationary objects.

Note:

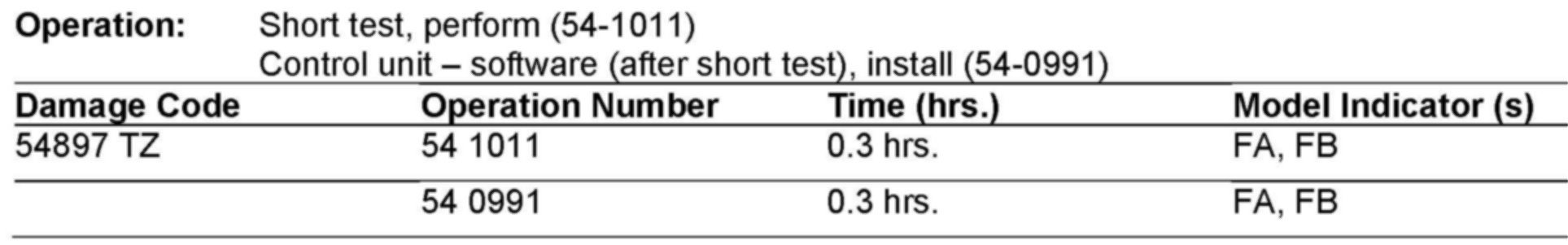

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on May 6, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
