Drive Belt: Service and Repair

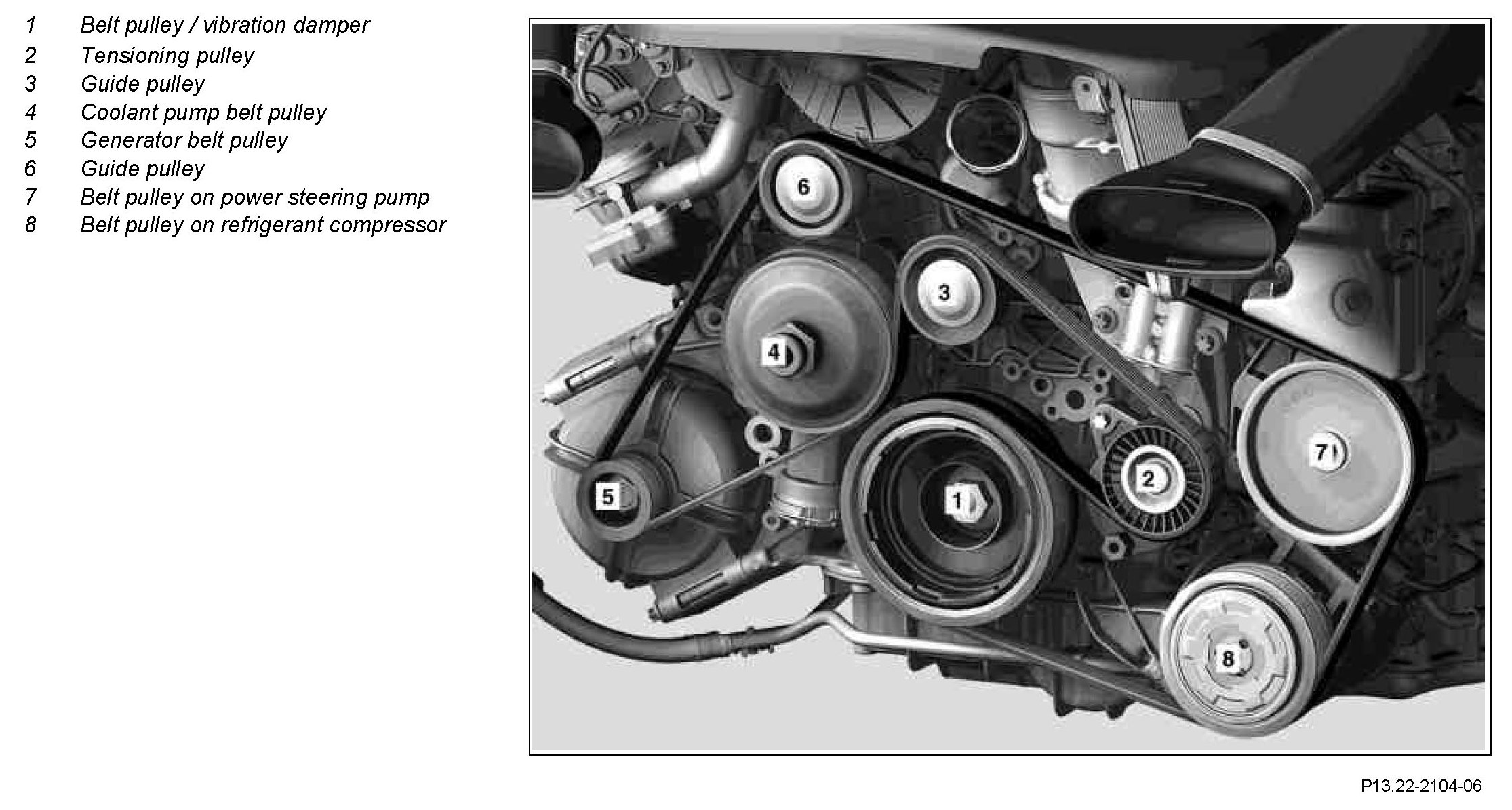

AR13.22-P-3902-02TS Running Diagram Of Poly V-belt


Component Identification:
