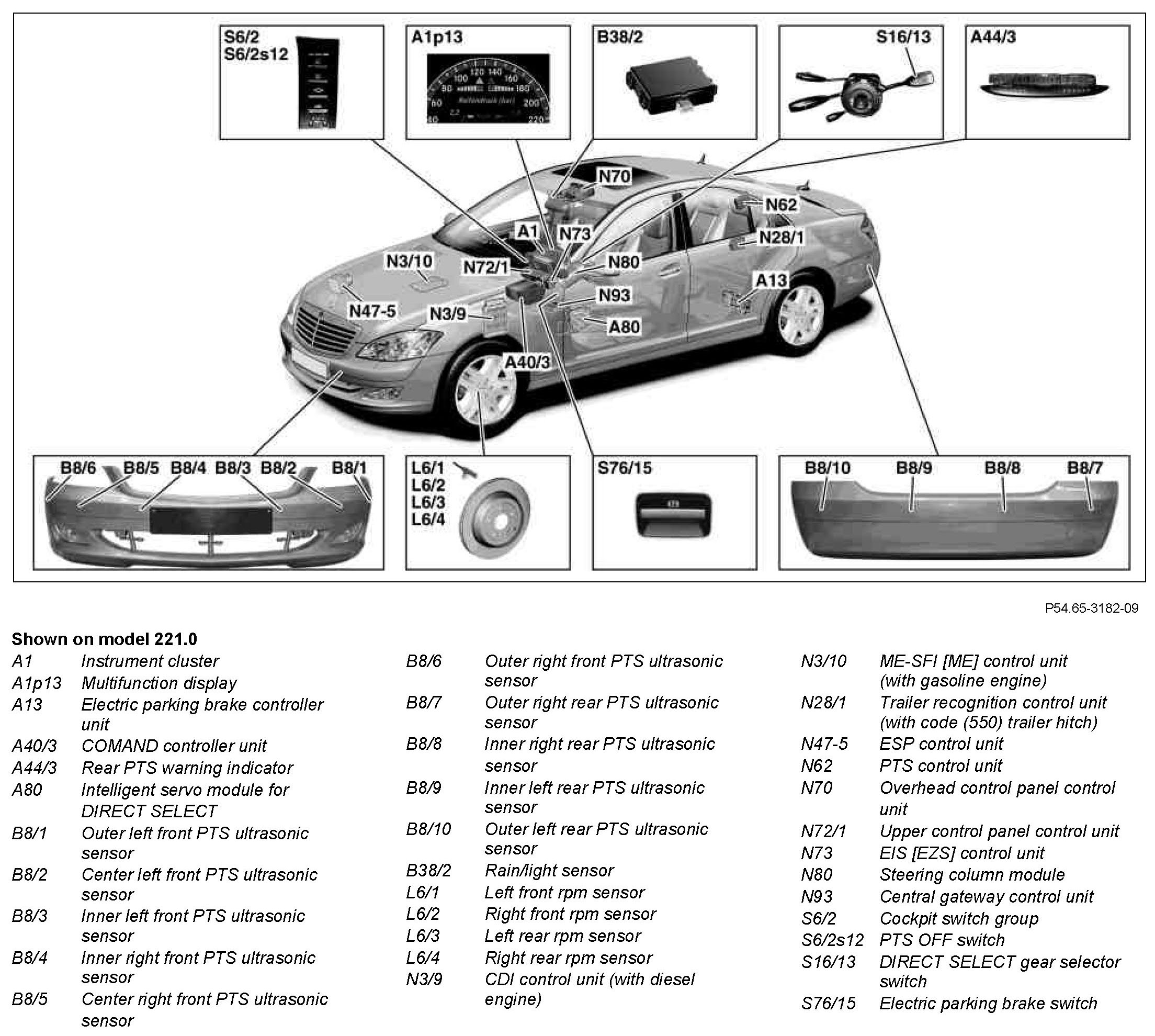

GF54.65-P-0001-02SX Parktronic System (PTS), Location of Components



GF54.65-P-0001-02SX Parktronic System (PTS), Location Of Components
- with CODE (220) Parktronic system (PTS)


Component Identification:
