GF86.10-P-2109SXS Extinguishing Agent Reservoir Pressure Monitoring Switch, Component Description

GF86.10-P-2109SXS Extinguishing Agent Reservoir Pressure Monitoring Switch, Component Description
- with CODE (Z07) Top protection
- up to model year 08

Component Identification:

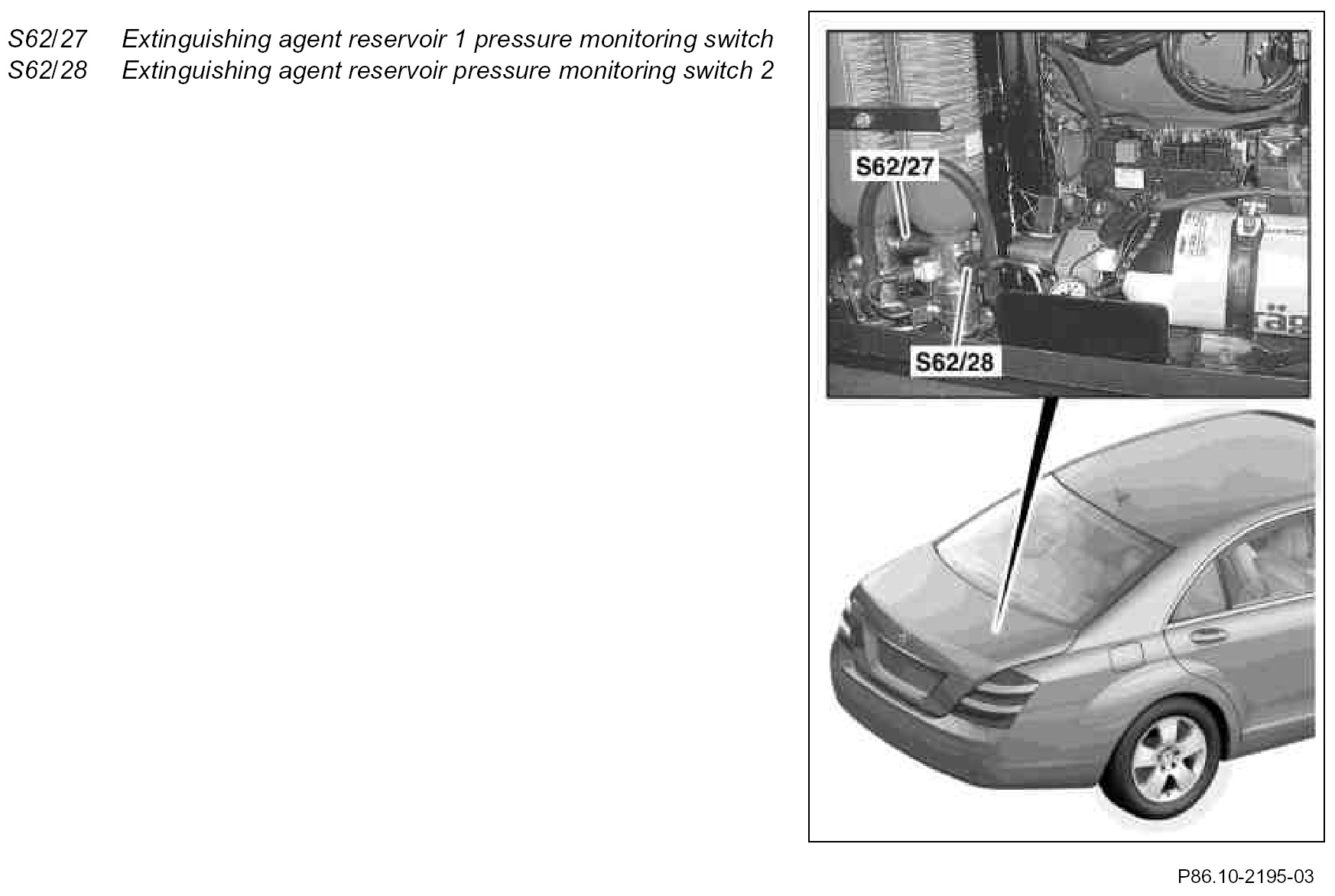

Location
The pressure monitoring switch is located on the corresponding extinguishing agent reservoir installed on the equipment carrier plate on the trunk.

Task
The pressure monitoring switch determines the inner pressure in the extinguishing agent reservoir. The values are read in directly by the fire extinguishing system control unit (N100)
