GF54.21-P-4510SX RCP [HBF] Control Unit, Component Description
GF54.21-P-4510SX RCP [HBF] Control Unit, Component Description
- MODEL 221.0 /1 up to Model Year

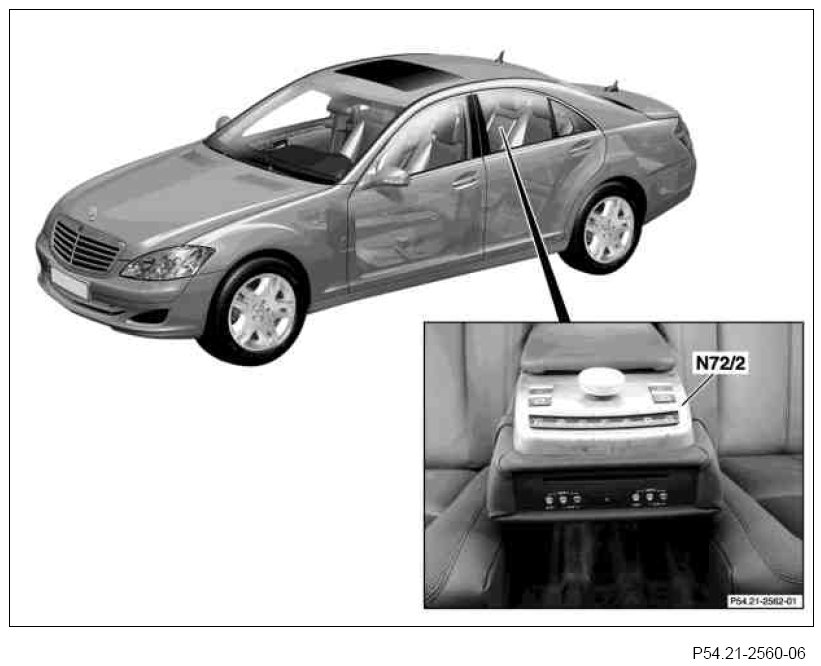

Location shown with code (406) Rear multicontour seat and with code (864) Rear entertainment system
N72/2 RCP [HBF] control unit
The RCP [HBF] control unit is located in the armrest between the rear seats.
Task on vehicles with code (864) Rear entertainment system
Man Machine Interface (MMI) between the left rear display (A40/5), right rear display (A40/6) and the user.
The user's commands are recorded via the actuation of the following buttons integrated in the RCP [HBF] control unit and via the movement of the integral rear turn/push control (N72/2s8)
- Right screen button (N72/2s4)
- Left screen button (N72/2s5)
- Right "Back" button (N72/2s6)
- Left "Back" button (N72/2s7)
Actuation of the buttons and rotary pushbutton is converted into Controller Area Network (data bus/CAN bus) (CAN) messages by the electronics of the rear central operating unit and placed on the telematics CAN.
The CAN messages are read in directly by the left rear display and right rear display.
Task on vehicles with code (406) Rear multicontour seats
The RCP [HBF] control unit takes over the task of an MMI between the multicontour seat system and the user.
The user's commands are recorded via the actuation of the following buttons integrated in the RCP [HBF] control unit and via the movement of the integral rear turn/push control
- Left seat selection button (N72/2s12)
- Right seat selection button (N72/2s13)
- Backrest side seat contour button (N72/2s14)
- Lumbar support seat contour button (N72/2s15)
- Lumbar support height adjustment button (N72/2s16)
- Gentle massage function button (N72/2s17)
- Firm massage function button (N72/2s18)
These actuations are converted into CAN messages by the RCP [HBF] control unit and placed on the Telematics CAN.
The COMAND control unit (A40/3) reads in these CAN messages and places them on the central CAN.
The central gateway control unit (N93) reads in these messages and passes them on to the rear seats control unit (N25/6) via the interior CAN.

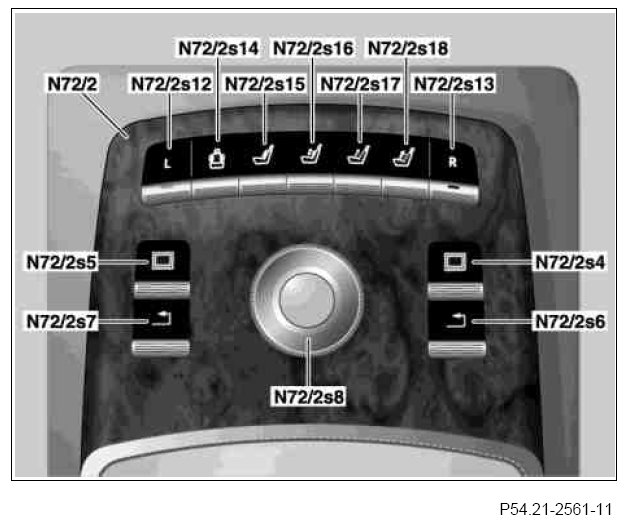

Design shown with code (406) Rear multicontour seat and with code (864) Rear entertainment system
N72/2 RCP [HBF] control unit
N72/2s4 Right screen button
N72/2s5 Left screen button
N72/2s6 Right "Back" button
N72/2s7 Left "Back" button
N72/2s8 Rear turn/push control
N72/2s12 Left seat selection button
N72/2s13 Right seat selection button
N72/2s14 Backrest side seat contour button
N72/2s15 Lumbar support seat contour button
N72/2s16 Lumbar support height adjustment button
N72/2s17 Gentle massage function button
N72/2s18 Firm massage function button
Function
Right screen button, with code (864) Rear entertainment system By pressing the right screen button the user can switch on the right rear display.
Left screen button, with code (864) Rear entertainment system
By pressing the left screen button the user can switch on the left rear display.
Right "Back" button, with code (864) Rear entertainment system
By briefly pressing the right "Back" button the current "Menu" or "Submenu" on the right rear display is closed and a change made to the preceding "Menu" or "Submenu". By pressing the right "Back" button for more than 3 s all the "submenus" on the right rear display are closed. The basic screen display of the previously selected "menu" appears in the right rear display.
Left "Back" button, with code (864) Rear entertainment system
By briefly pressing the left "Back" button the current "Menu" or "Submenu" on the left rear display is closed and a change made to the preceding "Menu" or "Submenu". By pressing the left "Back" button for more than 3 s all the "submenus" on the left rear display are closed. The basic screen display of the previously selected menu appears in the left rear display.
Left seat selection button, with code (406) Rear multicontour seat
By pressing the left seat selection button the user can select the left rear seat and at this adjust the "Seat setting" function or "Massage" function via the following buttons:
- Lumbar support seat contour button
- Lumbar support height adjustment button
- Gentle massage function button
- Firm massage function button
Right seat selection button, with code (406) Rear multicontour seat
By pressing the right seat selection button the user can select the right rear seat and at this adjust the "Seat setting" function or "Massage" function via the following buttons:
- Lumbar support seat contour button
- Lumbar support height adjustment button
- Gentle massage function button
- Firm massage function button
Backrest side seat contour button, with code (406) Rear multicontour seat
By pressing the backrest side seat contour button the user can change the volume and firmness of the two air cushions integrated in the left and right side of the backrest of the selected rear seat.
Lumbar support seat contour button, with code (406) Rear multicontour seat
By pressing the lumbar support seat contour button the user can change the volume and firmness of the 3 air cushions integrated in the backrest of the selected rear seat.
Lumbar support height adjustment button, with code (406) Rear multicontour seat
By pressing the lumbar support height adjustment button the user can change the position of the 3 air cushions integrated in the backrest of the selected rear seat.
Gentle massage function button, with code (406) Rear multicontour seat
By pressing the gentle massage function button the user can select a gentle massage function of the selected rear seat. The volume and firmness of the air cushions integrated in the backrest are then varied.
Firm massage function button
By pressing the firm massage function button the user can select a firmer massage function of the select rear seat. The volume and firmness of the air cushions integrated in the backrest are then varied.
Rear rotary pushbutton
The rear rotary pushbutton is used to control the individual menus and submenus of the driver-relevant operating and information windows and the way in which video information from the following systems is shown on the left rear display or right rear display:
- Disc (audio CD or video DVD)
- TV
- AUX1 (e.g. video cameras, MP3 players or game consoles)
- AUX2 (e.g. video cameras, MP3 players or game consoles)
- System settings (left rear display or right rear display OFF, day design, night design and automatic)
DD Press down vertically
DL Rotate counterclockwise
DR Rotate clockwise
L Push left
R Push right
V Push forward
Z Push backward

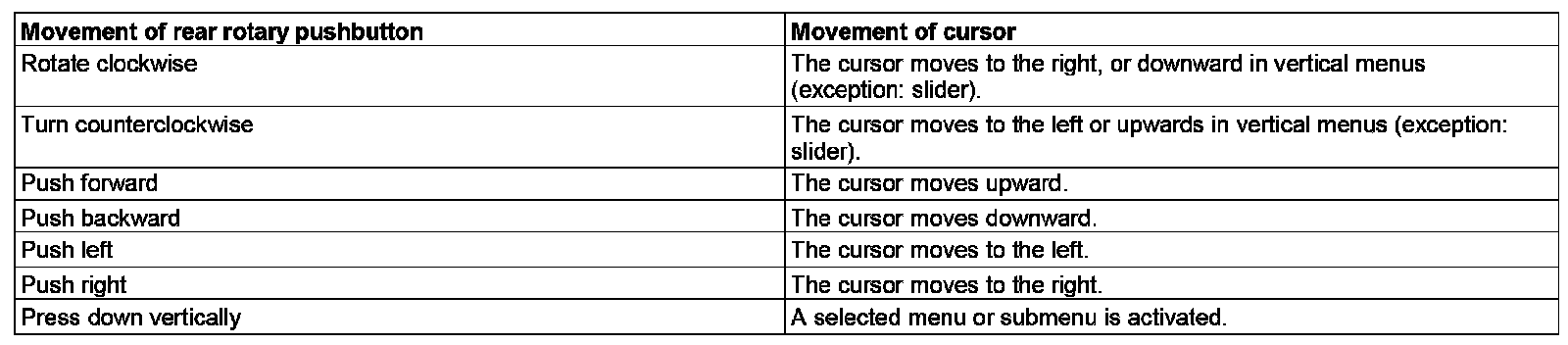

Moving cursor in left rear display or right rear display using rear rotary pushbutton
Step spacing
The rotary movement of the turn/push control is recorded in the following 2 grids of different fineness:
- 12 steps per revolution
- 32 steps per revolution
The low-resolution spacing (12 steps per revolution) is mainly used for selecting menus. The high-resolution spacing (32 steps per revolution) is used for selecting and moving within long lists. The rear rotary pushbutton is locked at the end of a selection list, i.e. it is not possible to turn the rear rotary pushbutton further clockwise when the bottom of a selection list is reached.
