GF91.25-P-0002-02SX Dynamic Seat, Networking of Components
GF91.25-P-0002-02SX Dynamic Seat, Networking of Components
GF91.25-P-0002-02SX Dynamic Seat, Networking Of Components
- with CODE (432) Left and right dynamic multicontour seat up to Model Year 8

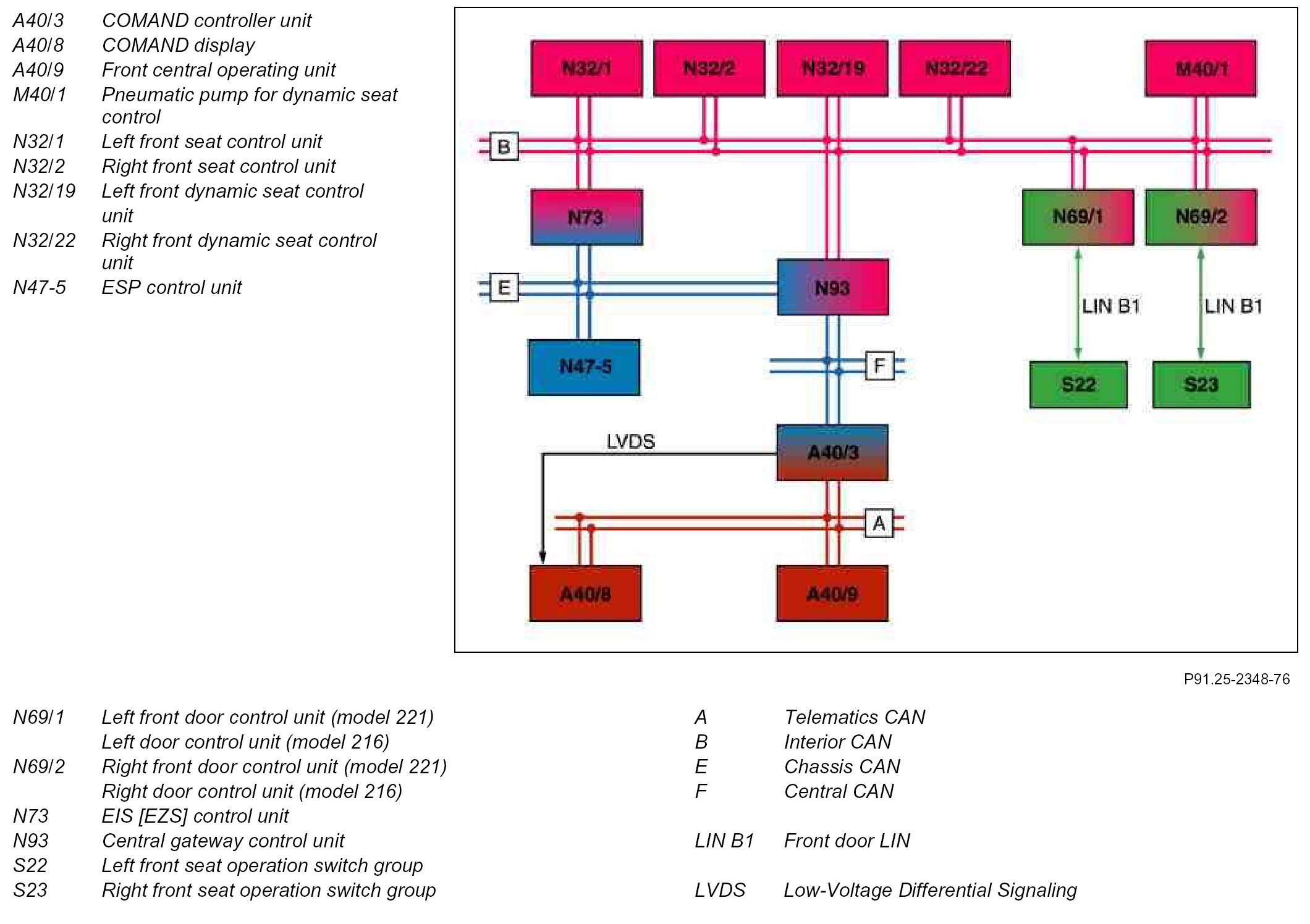

Component Identification:
